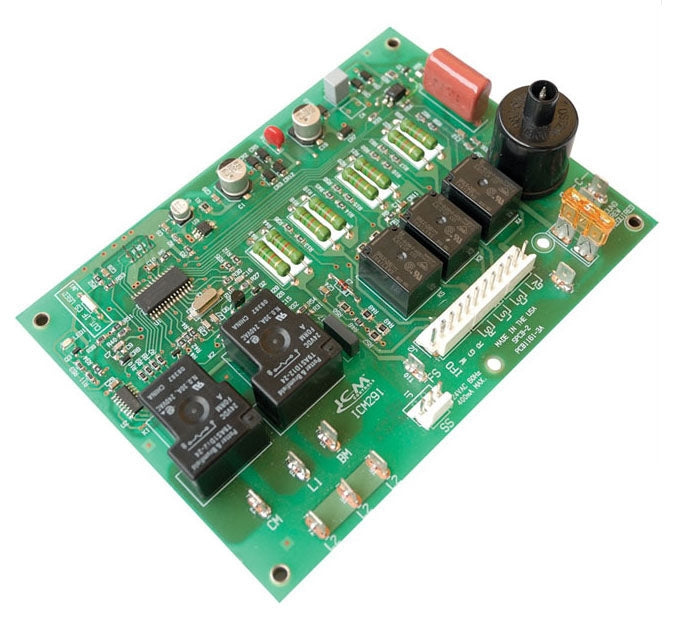

ICM Controls ICM291 Direct Spark Ignition Control Board 208/230 VAC 60 Hz 24 VAC 60 Hz

Product Description

ICM Controls ICM291 is a gas ignition control board designed forHVAC systems. This microprocessor-based control board is suitable for both 208/230 volt AC and 24 volt AC systems. It features a direct spark ignition system that manages combustion processes effectively. The compact design dimensions of five inches by seven inches by one point eight seven five inches make it convenient for installation.

• Direct spark ignition (DSI) control board
• Microprocessor-based for reliable performance
• Control voltages of 24 VAC and line voltages of 208/230 VAC

Product Highlights

The ICM291 control board stands out for its efficiency in controlling gas ignition systems. It offers key functionalities such as monitoring ignition timing, flame sensing, and lockout features, ensuring safety during operation.

Product Information

Standard Information

• Manufacturer: ICM Controls
• Part Number: ICM291

Technical Specifications

• Size: 5 inches x 7 inches x 1.875 inches
• Voltage Rating: 208/230 VAC, 24 VAC
• Frequency: 60 Hz
• Operating Temperature: -40 to 176 degrees F
• Pre-Purge Time: 45 seconds
• Trial for Ignition: 5 seconds ignition activation, 2 seconds flame establishing
• Post-Purge Time: 45 seconds
• Retry Period: Every 20 seconds for 15 minutes
• Lockout: Manual reset required
