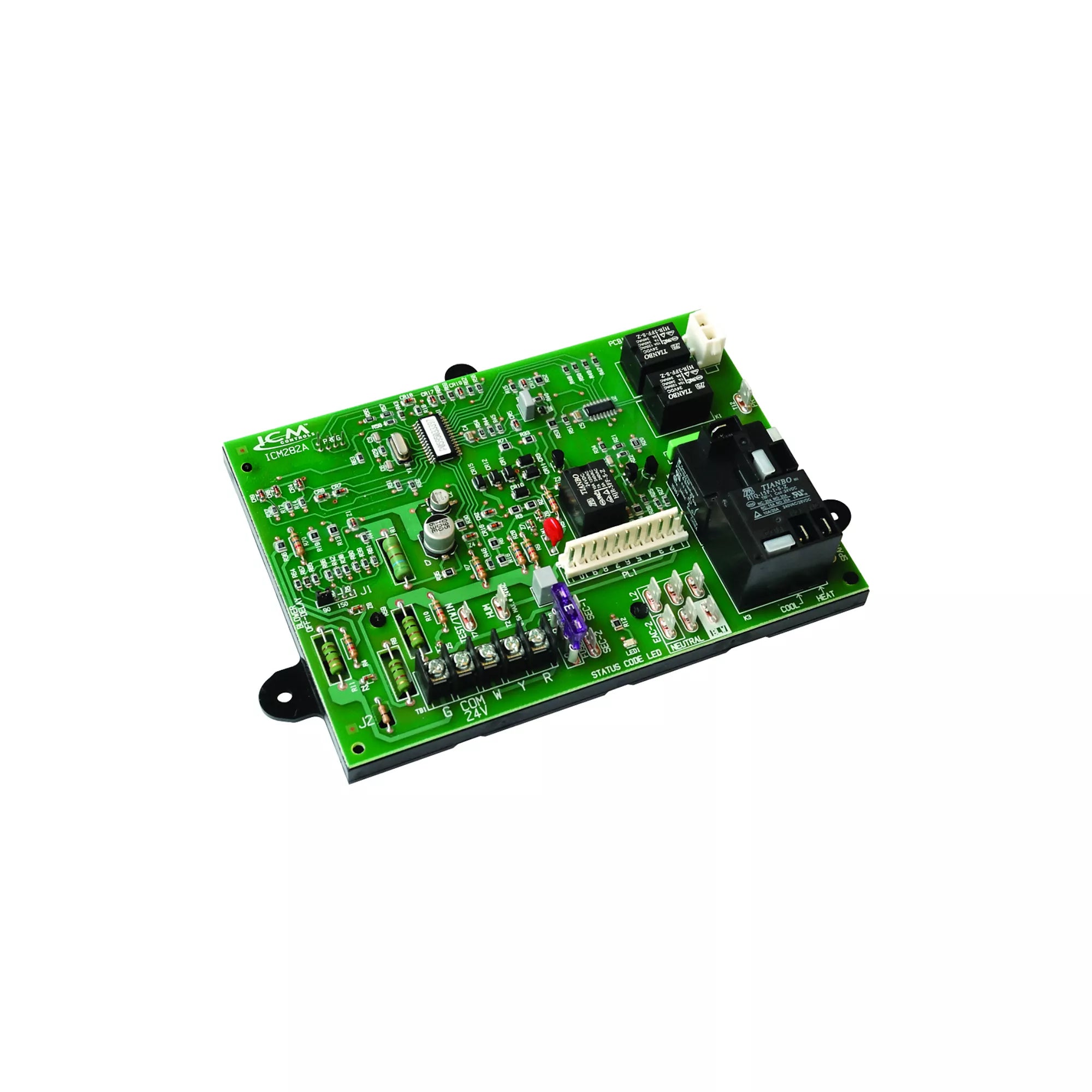

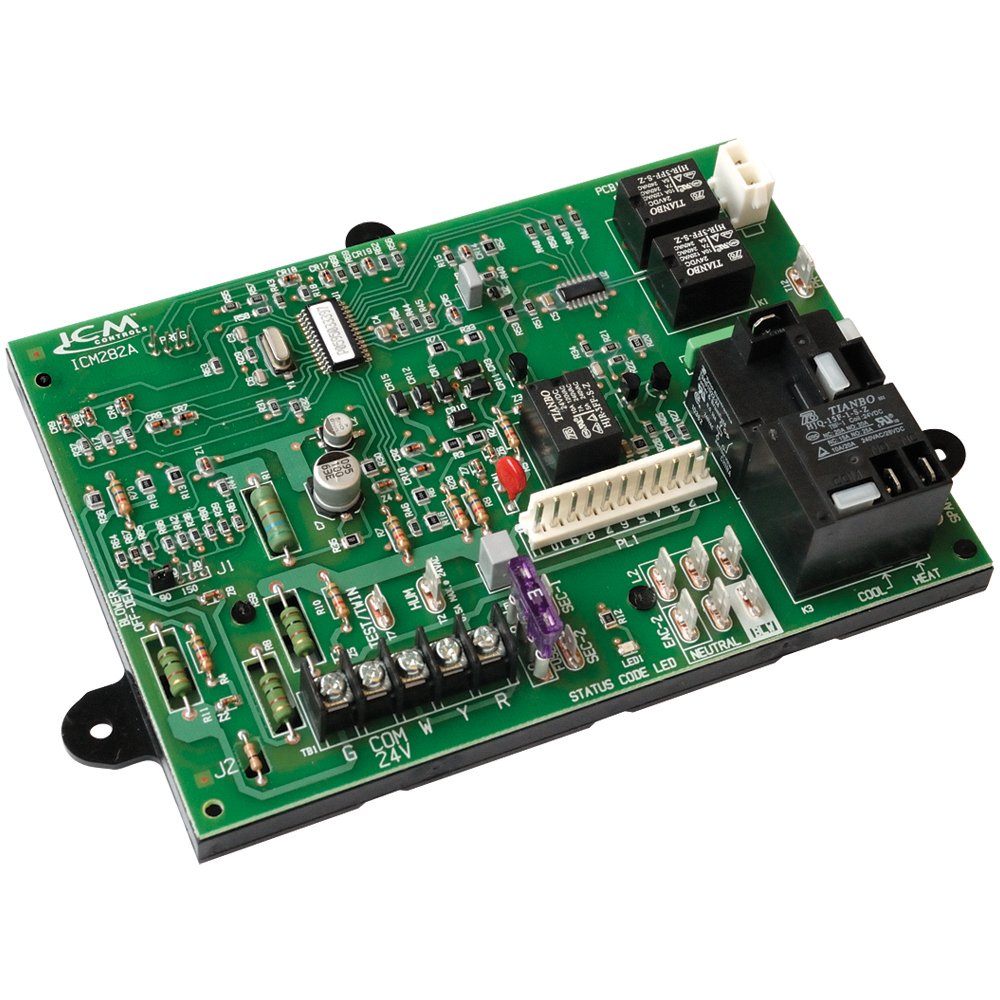

Icm Controls ICM282A oem Replacement Furnace Control Board Module

Product Description

The ICM Controls ICM282A is an OEM replacement furnace control board module. This control board is microprocessor-based and designed for enhanced controls operation in counterflow and downflow furnace applications. It controls the gas valve, ignitor, blower motor, inducer, humidifier, and air cleaner.

• Designed for 100% gas shutoff in case of ignition failure
• Offers reverse polarity protection
• Features diagnostic fault codes/LEDs to aid in testing and troubleshooting

Product Highlights

The ICM282A furnace control board provides enhanced control operation and is designed for easy testing and troubleshooting.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: ICM282A
• Country of Origin: USA

Technical Specifications

• Brand: ICM Controls
• MPN: ICM282A
• Item Model Number: ICM282A
• Prop 65: Yes
• Type: Furnace Control
• Voltage: 98-132 VAC
• Country of Origin: USA
• Full Load Amps: 5
• Control Voltage: 24 VAC
• Stage: Single
