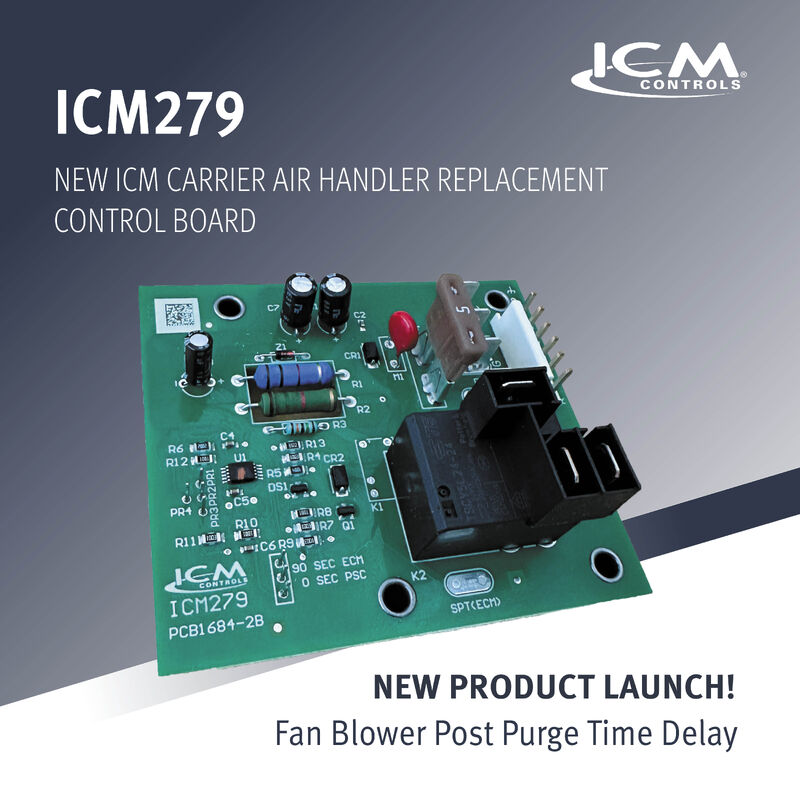

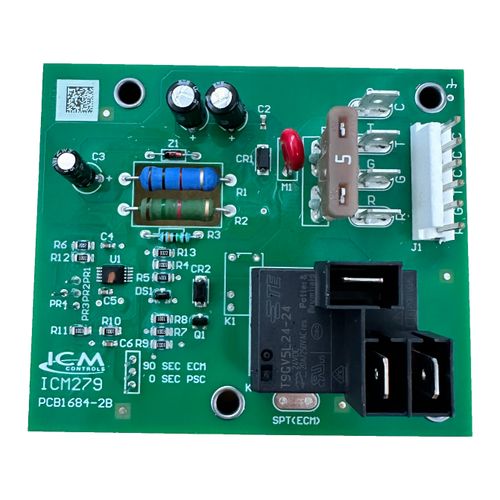

ICM Controls ICM279 Fan Blower Control Board

Product Description

The ICM Controls ICM279 is a fan blower control board that serves as a direct replacement for Carrier and ICP OEM units. When power is supplied to the G terminal, this board includes a one-second delay before it activates the blower motor. If power is disconnected from the G terminal, it will continue to operate the blower for an additional ninety seconds unless a jumper is present. The control board is compatible with PSC and ECMx blower motors and features wiring options for either inline connectors or spade terminals.

• Provides a one-second ON delay and a ninety-second OFF delay without a jumper.
• Includes a heavy-duty output relay designed for inductive loads.
• Equipped with built-in short cycle protection.

Product Highlights

This board is essential for HVAC systems to ensure efficient blower operation.

Product Information

Standard Information

• Brand: ICM CONTROLS
• MPN: ICM279

Technical Specifications

• Input Voltage: 18-30 VAC
• Contact Ratings: 2HP at 277 VAC, 1HP at 125 VAC, 2A Pilot Duty at 250 VAC
• On Delay: 1 second
• Off Delay: 90 seconds (without jumper)
