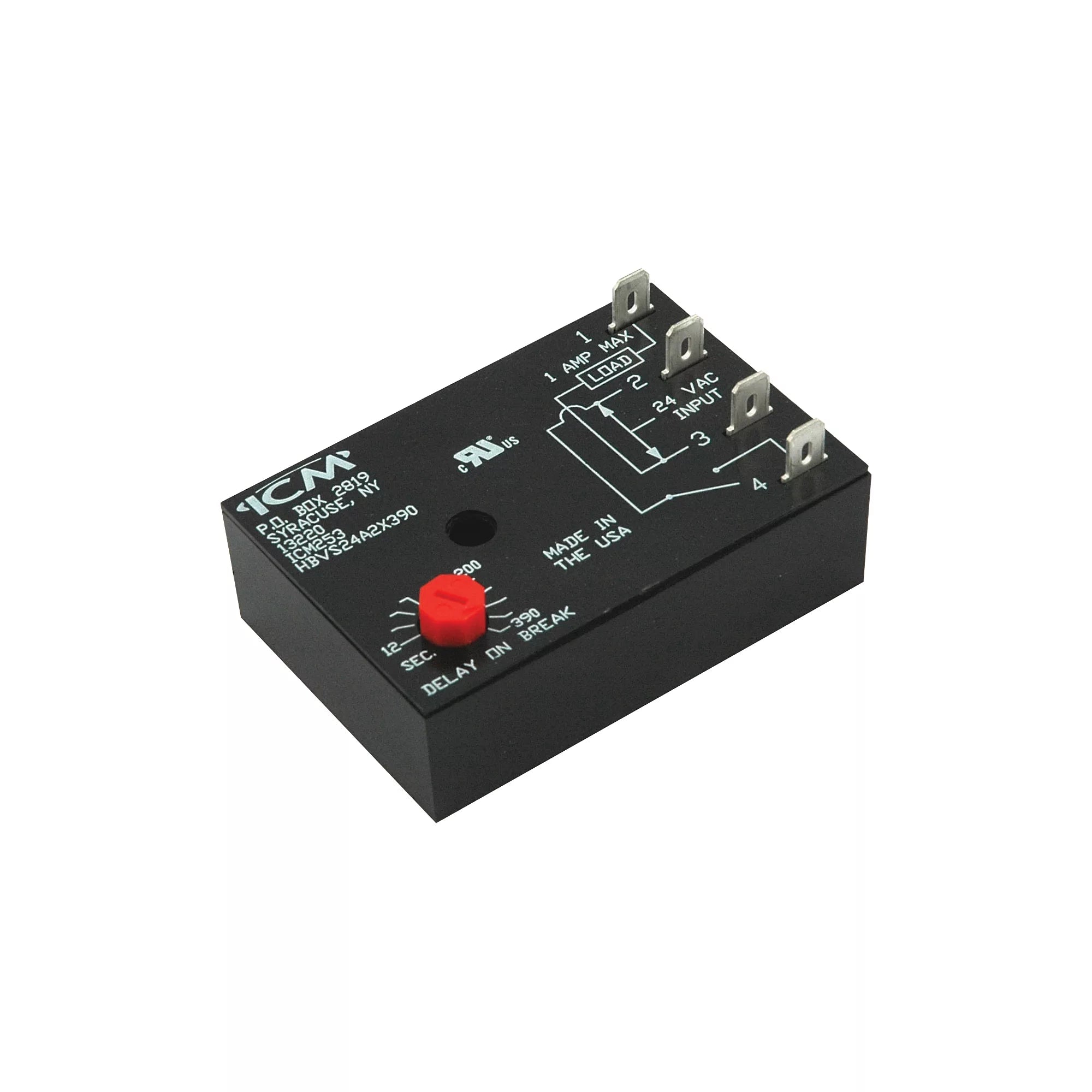

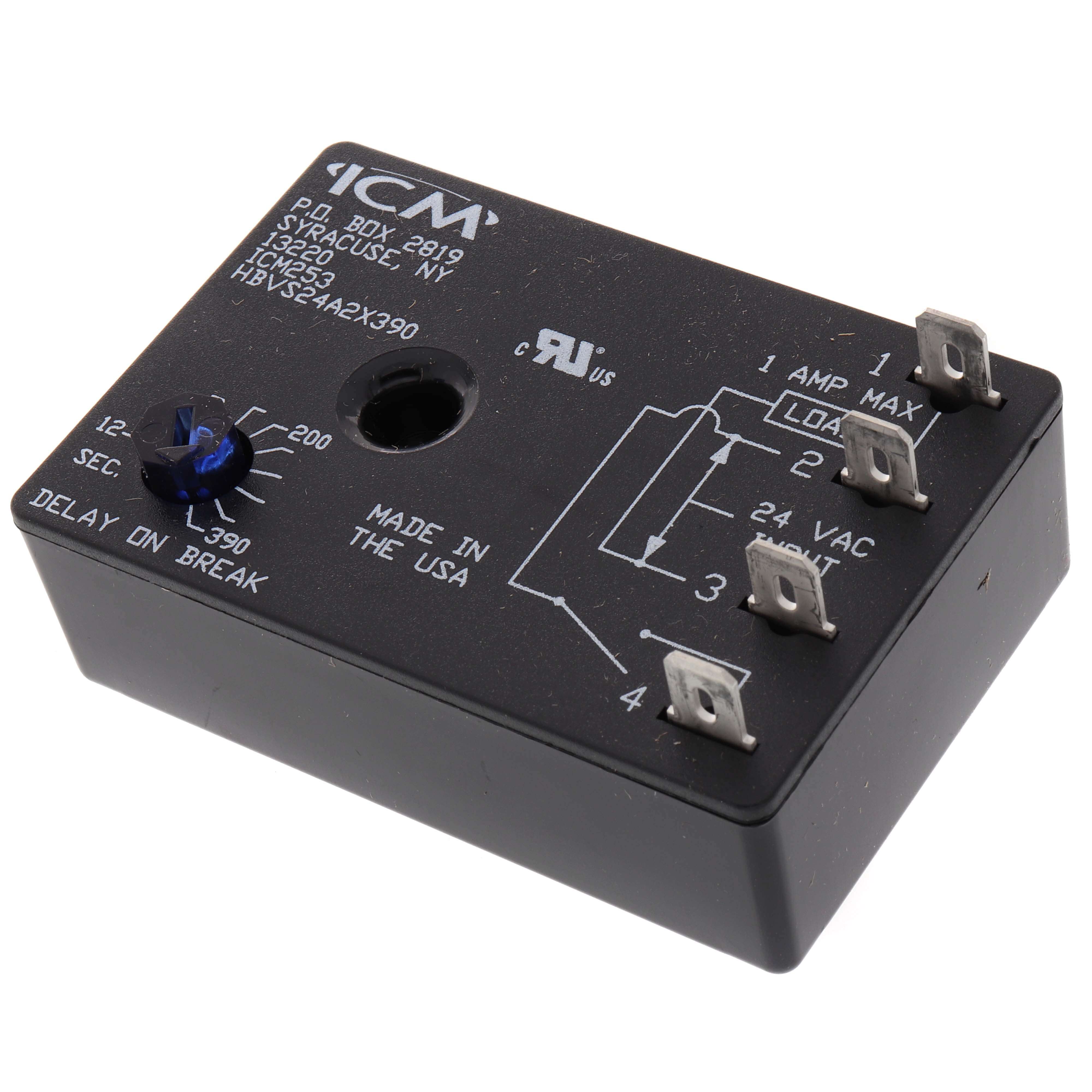

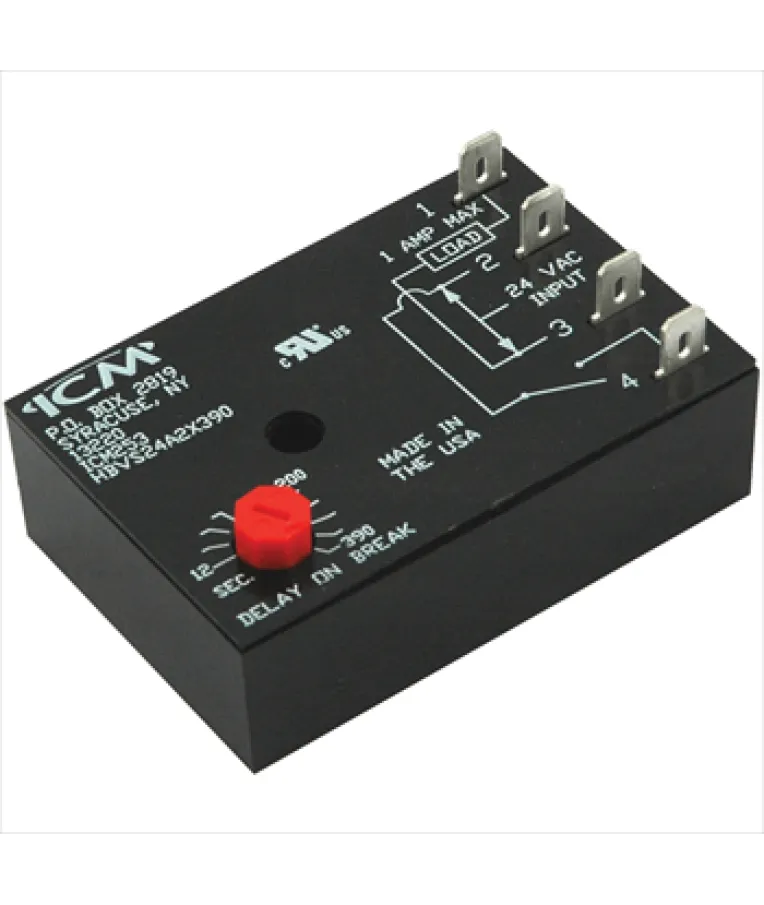

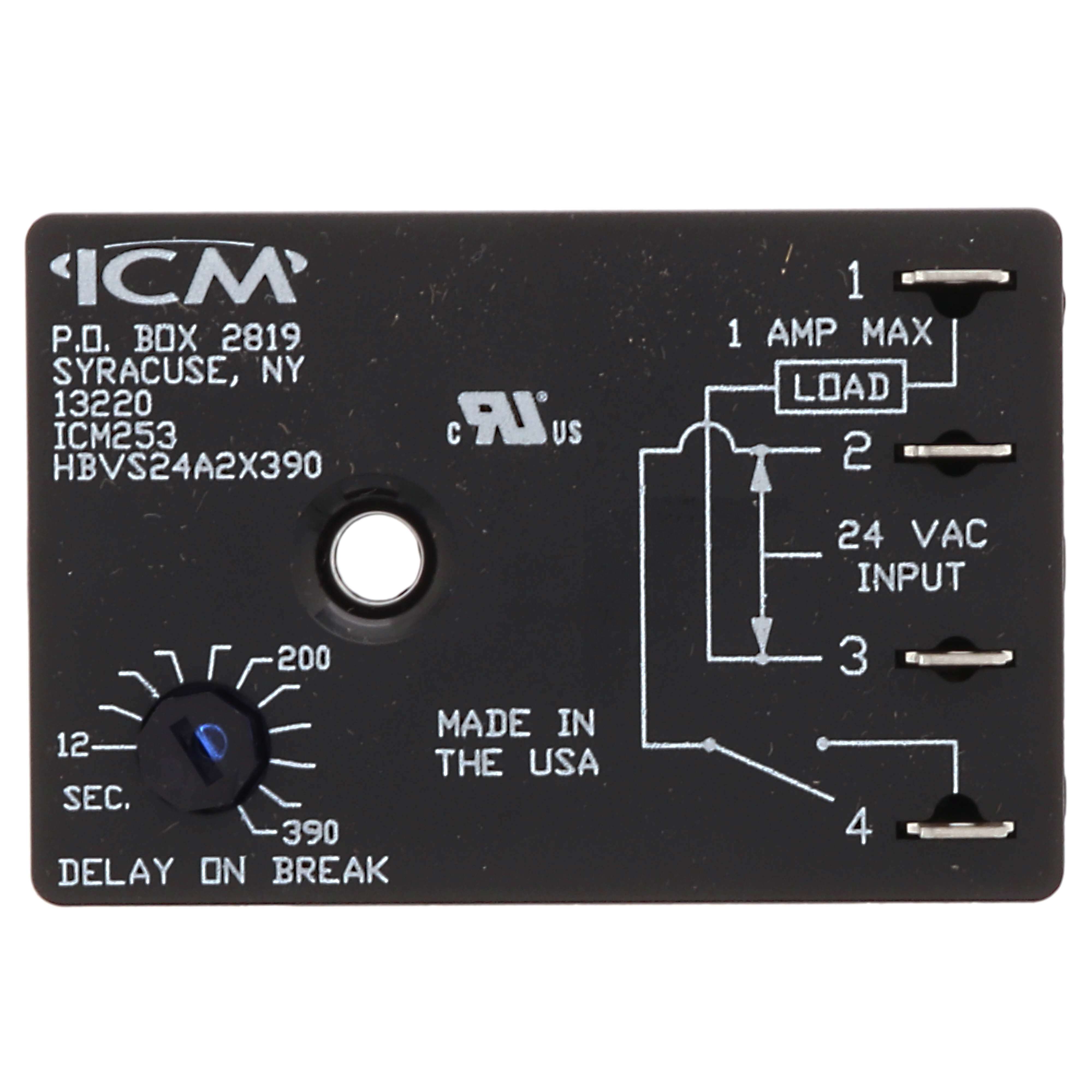

Icm Controls ICM253B Fan Delay Timer 12-390 Second Adjustable Delay

Product Description

The ICM CONTROLS ICM253B is a fan delay timer that controls the circulating fan in heat pumps, air conditioners, and forced air systems. The off delay timing function continues to run the fan at the end of heating and cooling cycles. It features an adjustable 12-390-second time delay.

• Post-purge fan delay timer
• Adjustable 12-390-second time delay
• Input Voltage: 18-30 VAC

Product Highlights

This timer purges ducts of residual air at the end of the heating/cooling cycle, increasing system efficiency.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: ICM253B
• Country of Origin: USA

Technical Specifications

• Brand: ICM Controls
• Cycle/Hertz: 50/60 Hz
• Phase: Single
• Prop 65: No
• Voltage: 18-30 VAC
• Country of Origin: USA
• Amperage: 1 (Max)
• Amp Inrush: 10
• Adjustable Time Delay: 12-390 Seconds
• Holding Current: 40 mA (minimum)
• Input Voltage: 18-30 VAC
• Control Action: OFF Delay
• Amperage Rating: 20 mA to 1 A
• Mounting Type: Surface
• Additional Information: 50-60 Hz Frequency Rating, 12 to 390 s Adjustable Time Delay, -40 to 167 deg F Temperature Rating
• Material: Plastic, Metal
• Model: ICM253
• Compatible Product: Heat Pump Split System
• Compatible Brand: For Rheem, For ICM Controls, For Ruud, For Carrier, For ICP
• Compatible Model: Fits a variety of equipment, message us with a model # to check for compatibility!
