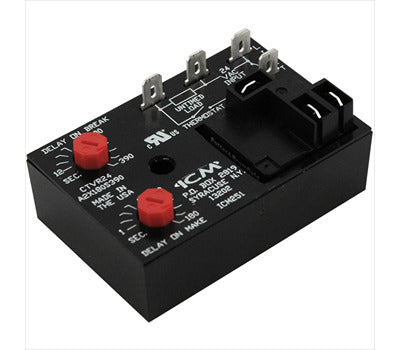

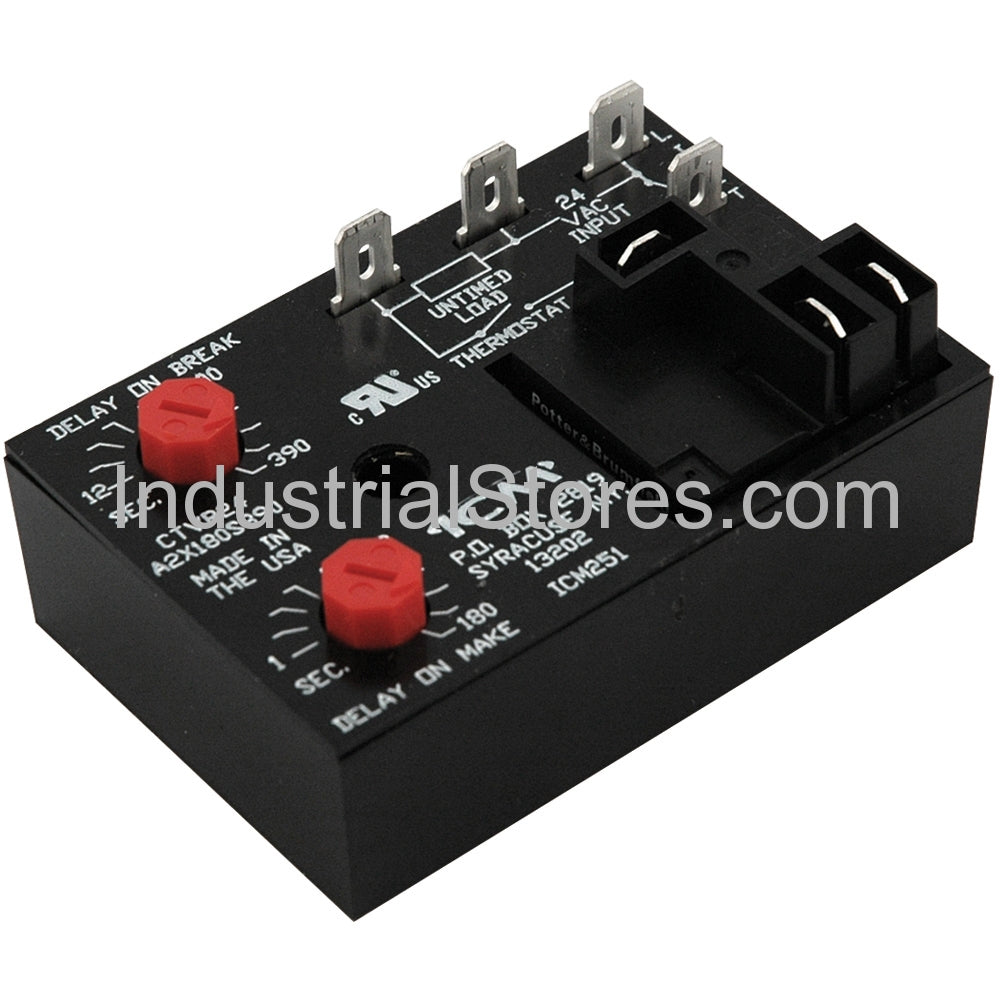

ICM CONTROLS ICM251B Dual Function Fan Delay Timer

Product Description

The ICM CONTROLS ICM251B is a dual function fan delay timer designed to control circulating fans in heat pumps, air conditioners, and forced air systems. This timer offers adjustable ON and OFF delay functions, providing flexibility in air management.

• ON delay up to one hundred eighty seconds.
• OFF delay adjustable from twelve to three hundred ninety seconds.
• Compatible with multiple HVAC applications.

Product Highlights

This timer effectively manages fan operation, ensuring conditioned air reaches designated levels before activation. Its high power relay output directly drives the fan, maintaining efficiency and performance.

Product Information

Standard Information

• Control Action: ON Delay/OFF Delay
• OEM Replacement for: Mars 32377, 32378, 32379

Technical Specifications

• Secondary Voltage: Eighteen to thirty VAC
• Switch Action: Relay
• Time Delay: ON - one to one hundred eighty seconds, OFF - twelve to three hundred ninety seconds
• Shipping Weight: zero point two
• Shipping Dimensions: Length - four point one inches, Width - three point two inches, Height - two inches
• Input Voltage: Eighteen to thirty VAC
• Output Ratings: N.O. - twenty amps at two hundred forty VAC, N.C. - ten amps at two hundred forty VAC
• Application: Controls circulating fan in A/C, heat pump, and forced air systems
• Catalog Number: ICM251
