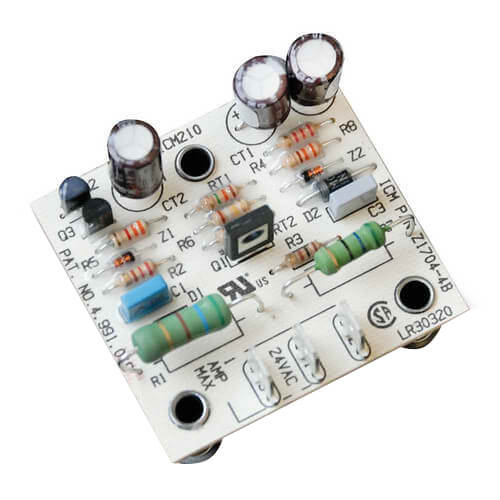

ICM CONTROLS ICM210 Dual Delay Timer

Product Description

The ICM CONTROLS ICM210 is a dual-function timer designed to manage air conditioning and refrigeration systems effectively. It offers both delay on make and delay on break functionality. This timer helps to prevent compressor damage caused by rapid short cycling. The device allows for a random start delay of up to three seconds. Upon receiving power, the load energizes, and if the power is lost, the load de-energizes, engaging the delay period before restarting.

• Provides delay on make and break timing.
• Random start delay feature of up to three seconds.
• Includes anti-short cycle timer to enhance equipment lifespan.

Product Highlights

This timer is crucial for protecting HVAC systems by ensuring appropriate delays between operations, thus preventing wear and tear from frequent cycling.

Product Information

Standard Information

• Input Voltage: 18/30 VAC
• Output Current: 1 Amp

Technical Specifications

• Inrush Current: 10 Amps
• Frequency: 50-60 Hz
• Time Delay: Up to 3 Sec Random Start
• Anti-Short Cycle Time Delay: 5 Minutes (fixed)
• Voltage Drop: 2.5v @ 1 Amp
• Replaces: EAC650
• OEM: A-1
