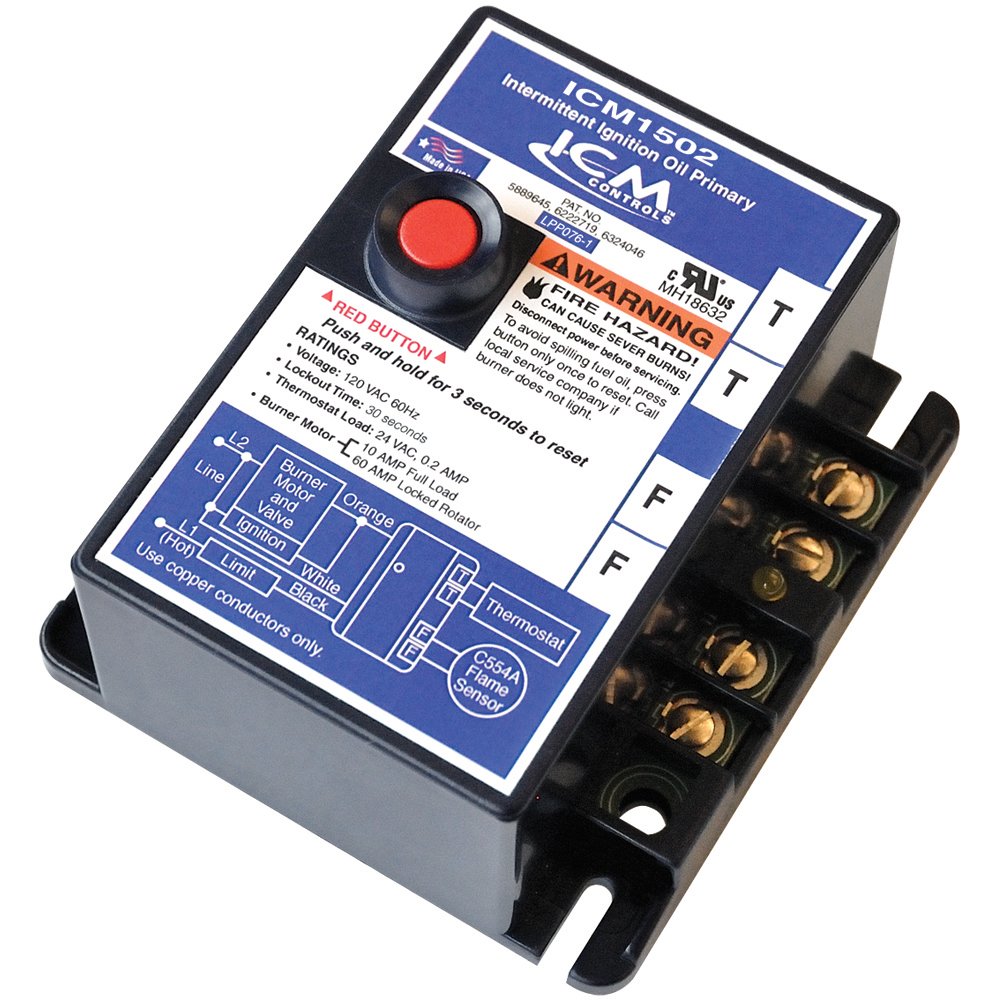

ICM Controls ICM1502 Intermittent Ignition Oil Primary Control with 30 Seconds Safety Timing - Replacement for Honeywell R8184G Series

Product Description

The ICM Controls ICM1502 is an intermittent ignition oil primary control unit that operates with a 30-second safety timing, serving as a direct replacement for Honeywell R8184G series. Engineered for precision in burner operations, this control unit guarantees reliable performance and enhances safety mechanisms in industrial environments.

• Enhanced operational reliability with solid state flame sensing circuit
• Visual lockout indication through LED on terminal strip
• Enclosed safety switch with external reset button enhances safety features

Product Highlights

The ICM1502 control ensures proper operation of oil burners, oil valves, and ignition transformers in response to heating demands. Compatible with 24 VAC thermostats and can be mounted on both standard 4x4 J-box and directly on burner housings.

Product Information

Standard Information

• Brand: ICM Controls
• Item Number: ICM1502
• Compatible Models: Direct replacement for Honeywell R8184G4074, R8184G1179, R8184G1302, R8184G4033

Technical Specifications

• Voltage: 120/240 VAC
• Ignition Type: Intermittent
• Lockout Time: 30 Seconds
• Operating Temperature Range: -30 to 130 degrees Fahrenheit
• Contact Capacity (Full Load): 7.4A at 120 VAC; 3.7A at 240 VAC
• Contact Capacity (Locked Rotor): 44.4A at 120 VAC; 22.2A at 240 VAC
