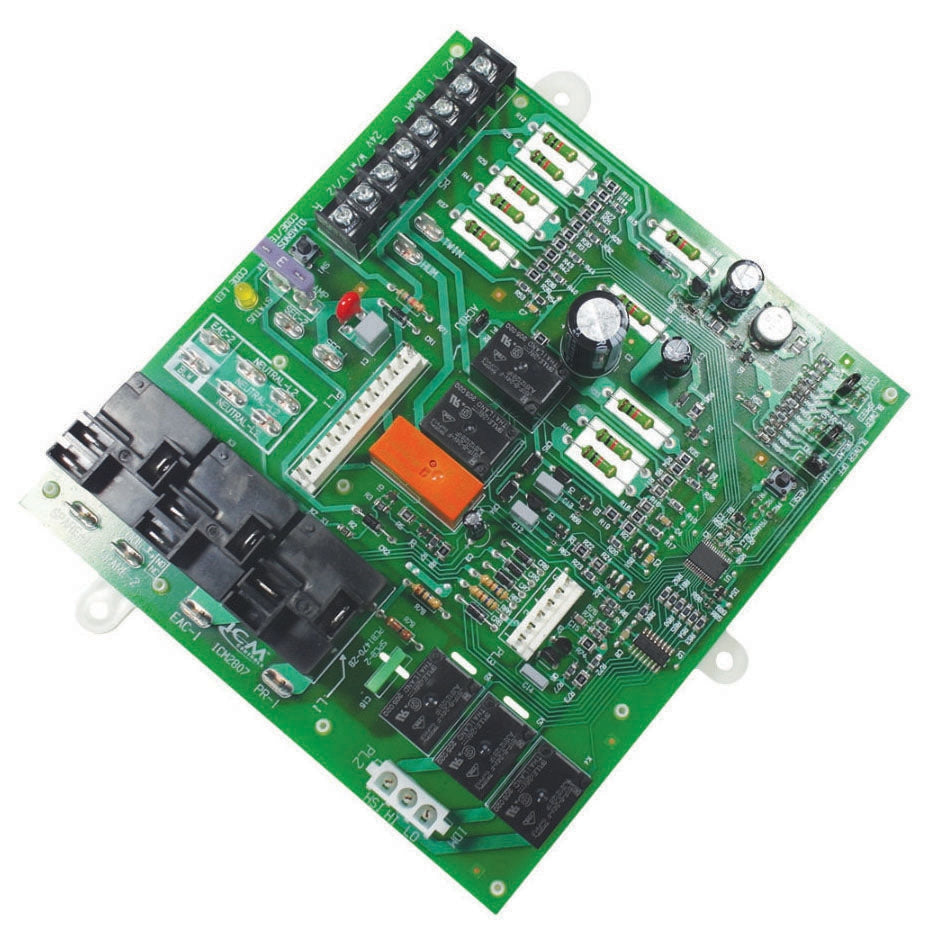

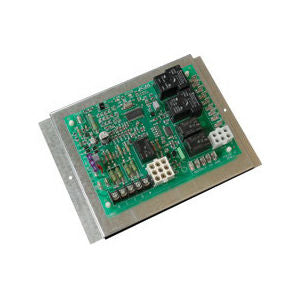

ICM Controls ICM2807 Furnace Control Board 98-132VAC

Product Description

The ICM Controls ICM2807 is a furnace control board designed for 98 to 132 volt AC applications. This microprocessor-based control board operates effectively in both low and high heat settings. It provides reliable control for furnace operations by managing components such as the gas valve, ignitor, blower motor, and more.

• Size: Seven inches by six point five inches by one point five inches
• Voltage rating: 98 to 132 volts AC at sixty hertz
• Ambient temperature: Operates from negative forty to one hundred seventy-six degrees Fahrenheit

Product Highlights

The ICM2807 control board offers extensive features for optimal furnace management. It boasts a microprocessor for precise control, compatibility with standard thermostats, and diagnostics for easy troubleshooting.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: ICM2807
• Type: Control Board
• Used On: Furnace

Technical Specifications

• Length: 7 inches
• Width: 6.5 inches
• Height: 1.5 inches
• Operating Voltage: 98 to 132 VAC
• Current Ratings: 5 Amp (Low Heat), 10 Amp (High Heat), and various ratings for other components
• Humidity Rating: 5 to 95 percent relative humidity
• Power Ratings: 10 HP for cool blower at 120 VAC
