Description

Product Description

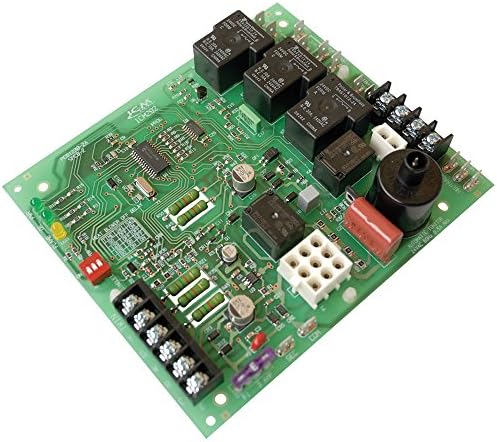

The ICM CONTROLS 292 Gas Ignition Control Board is a microprocessor-based direct replacement for furnace ignition systems. It manages inducer motors, air cleaners, humidifiers, spark ignitors, and gas valves. This board monitors timing, trial for ignition, system switches, and flame sensing, ensuring 100% lockout safety. Compatible with LP or Natural Gas, it provides LED indications for status and fault codes, simplifying troubleshooting for various furnace models. It replaces obsolete part number 62-24140-0.

  • Direct Spark Ignition (DSI) control board with microprocessor-based operation.
  • Controls inducer motors, air cleaner, humidifier, spark ignitor, and gas valve.
  • Monitors timing, trial for ignition, system switches, flame sensing, and lockout with 100% safety.

Product Highlights

Microprocessor-based gas ignition control board with LED diagnostics for LP or Natural Gas furnaces.

Product Information

Standard Information

  • Brand: ICM CONTROLS
  • Manufacturer Part Number: 292
Technical Specifications
Model Number
RTG20146
Mounting Type
Panel Mount
Input Control Voltage
24 VAC (18-30 VAC), 60 Hz
Input Line Voltage
115 VAC, 60 Hz
Power Consumption
0.3A plus gas valve current at 24 VAC
Operating Temperature
-40°C (-40°F) to 75°C (176°F)
Pre-purge Timing
30 seconds
Trial for Ignition Timing
7 seconds
Retries Timing
Two groups of two, 30 seconds delay within the group and 3 minutes delay between groups
Lockout Timing
1 hour
Post-purge Timing
90, 120, 160 and 180 seconds
Power Inputs
24 VAC and COM
Thermostat Interface Inputs
R, W, Y and G
System Switches Inputs
Vent Pressure and Limit switches (Main and Over-temperature switches in series)
Flame Sensing Input
Yes
Heat Blower OFF Delay Input
Miniature slide switch set
Spark Output
SE
Gas Valve Output
GV
Inducer Draft Motor Output
IDM
Blower Motor Speeds Output
FAN, COOL and HEAT
Electric Air Cleaner Output
EAC
Humidifier Relay Output
HUM
Heat/Cool Relay Output
H/C
Power LED Indicator
PWR (green LED)
Status LED Indicator
OK (green LED)
Flame Status LED Indicator
FLAME (yellow LED)
Fuel Compatibility
LP or Natural Gas
Replaces Part Number
62-24140-0
Compatible Furnace Models
Honeywell, Rheem, Ruud Heat Controller, Weather king (e.g., GLH-06EAUEA, GLH-07EAMGA, GLH-07EAUEA, GLH-10EAMEA, GRA-07EYBG278, GTA-07EYBG278)
