Icm Controls 290a universal intermittent

Product Description

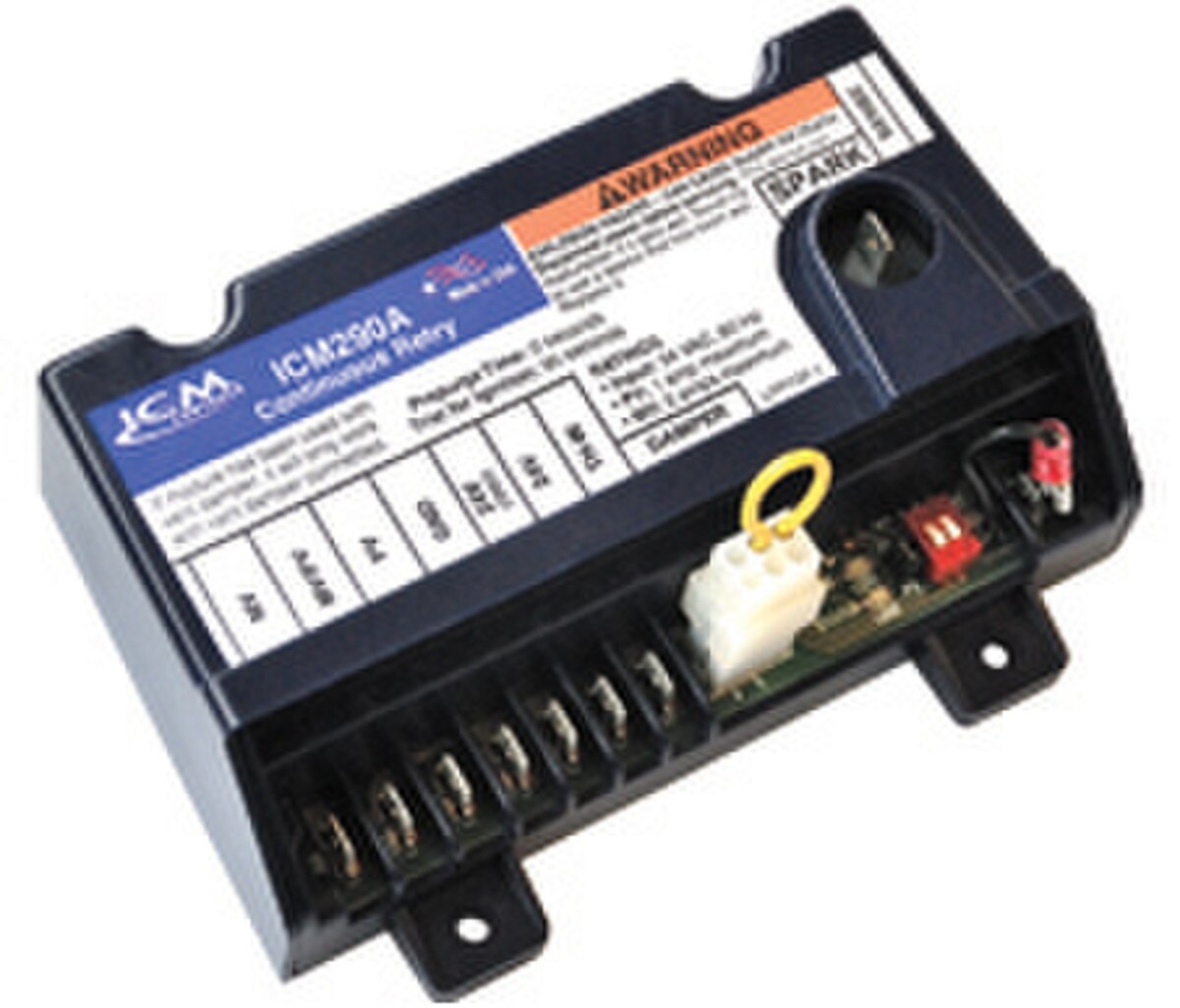

The ICM CONTROLS 290A is a universal intermittent pilot control module designed for both LP and natural gas systems. This control provides ignition sequencing, flame monitoring, and safety shutoff for single or dual rod intermittent pilot control applications. It is suitable for gas-fired furnaces, boilers, and other heating appliances, offering field-selectable prepurge and ignition trial timings. The module operates with a control voltage of 24 VAC (18-30 VAC) at 50/60 Hz.

• Universal intermittent pilot control for LP and natural gas systems.
• Features field selectable prepurge and ignition trial timings.
• Provides ignition sequence, flame monitoring, and safety shutoff.

Product Highlights

This universal intermittent pilot gas ignition control module offers flexible timing options and comprehensive safety features for heating applications.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: 290A
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: ICM290A
• Category: Ignition Systems and Components
• Operating Temperature: Minimum ambient -40°F (-40°C), Maximum ambient 165°F (74°C) when used with 2.0 A main valve
• Control Voltage: Line 24 VAC (18-30 VAC) 50/60 Hz
• Anticipator Setting: 0.1 A plus valve load @ 24 VAC
• Flame Failure Response Time: 2 seconds maximum
• Typical Gas Control: Honeywell models VR8204 and VR8304
• Relative Humidity: 0% to 95% non condensing
• Spark Cable Length: 36 inches maximum
• Spark Cable Voltage Rating: >10,000 (preferably higher)
• Trial for Ignition: 15 or 90 sec (switch selectable)
• LED Indicators: Green Status LED provides system status and error codes - Yellow Flame LED indicates flame presence and flame strength
