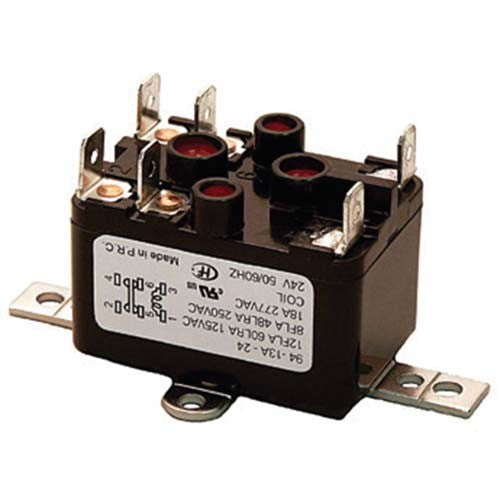

ICM Controls 25-90360 SPST Model Totally Enclosed Fan Relays - Heavy Duty, 24 Coil Voltage

Product Description

The ICM CONTROLS 25-90360 is a Single Pole Single Throw (SPST) fan relay suitable for various applications, including heating and cooling systems. This heavy-duty relay is designed to manage higher loads and is a direct replacement for specific models like WR, Essex, RBM, and Mars type 184.

• Durable and reliable design for operating heavy loads.
• Totally enclosed for quiet operation.
• Universal mounting bracket for simple installation.

Product Highlights

This relay is UL & cUR listed, ensuring it meets safety and operational standards. Its compact design makes it ideal for various applications requiring dependable switching solutions.

Product Information

Standard Information

• Brand: ICM CONTROLS
• MPN: 25-90360

Technical Specifications

• Coil Voltage: 24
• Model: SPST
• Temperature Range: -20°C to 40°C
• Mechanical Life: 1,000,000 operations
• Electrical Life: 100,000 operations
• Operate Time: 25 ms
• Release Time: 25 ms
• Dielectric Strength: 2500 Vrms coil to contact
• Coil Frequency: 50/60 Hz
• Coil Insulation: Class A
• Coil Duty Cycle: Continuous
• Terminals: ¼ quick-connects
• Contact Material: Silver cadmium oxide
• Enclosure: Phenolic
