Icm Controls 203 delay on break relay 8-240 vac

Product Description

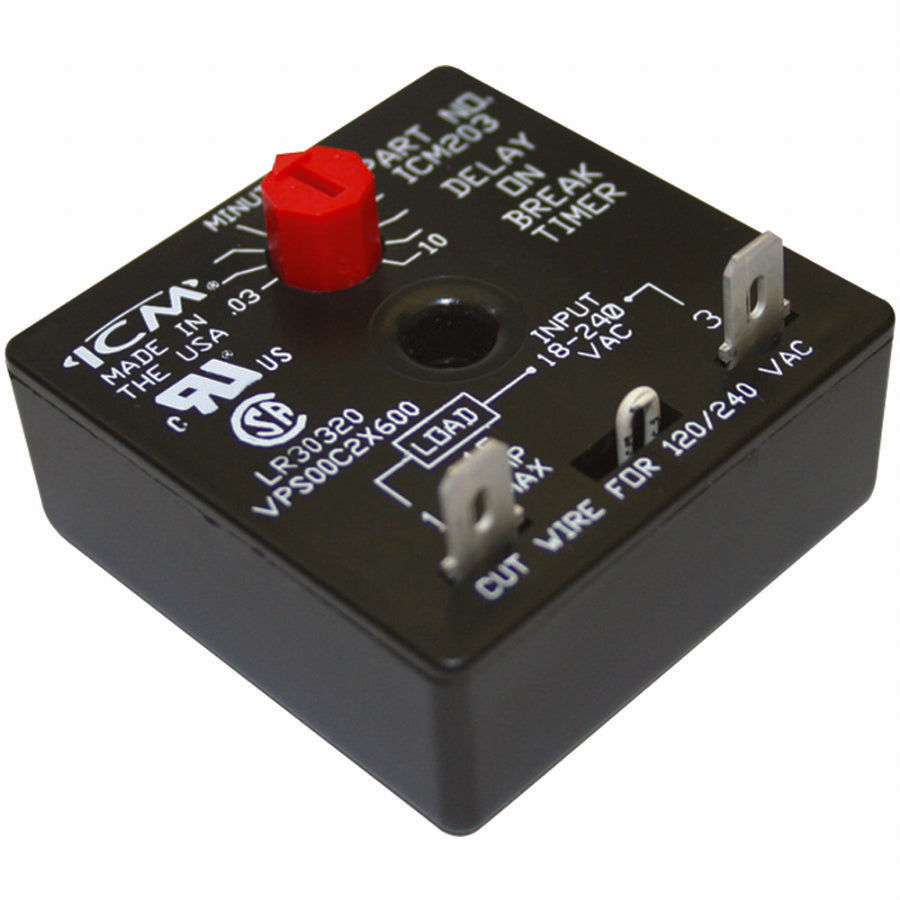

The ICM CONTROLS 203 is a delay on break relay operating with an input voltage range of 8-240 VAC and an output maximum of 1.5 amp. This device is designed to protect compressors in HVAC and refrigeration systems from damage caused by rapid short cycling. Upon power application, the load is energized. When the control switch opens or power is lost, the load de-energizes, and an adjustable delay period, ranging from 0.03-10 minutes, begins before restart.

• Universal voltage operation
• Higher 1.5 amp power rating
• Compressor lockout/anti-short cycle timer

Product Highlights

Helps to protect compressors from damage caused by rapid short cycling

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: 203
• Country of Origin: United States

Technical Specifications

• Input Voltage: 8-240 VAC
• Input Frequency: 5-60 Hz
• Output Maximum: 1.5 amp
• Output Minimum: 40mA
• Output Inrush: 15 amp in-rush
• Time Delay: 0.03-10 minutes (1.8-600 seconds)
• Number of settings: 1
