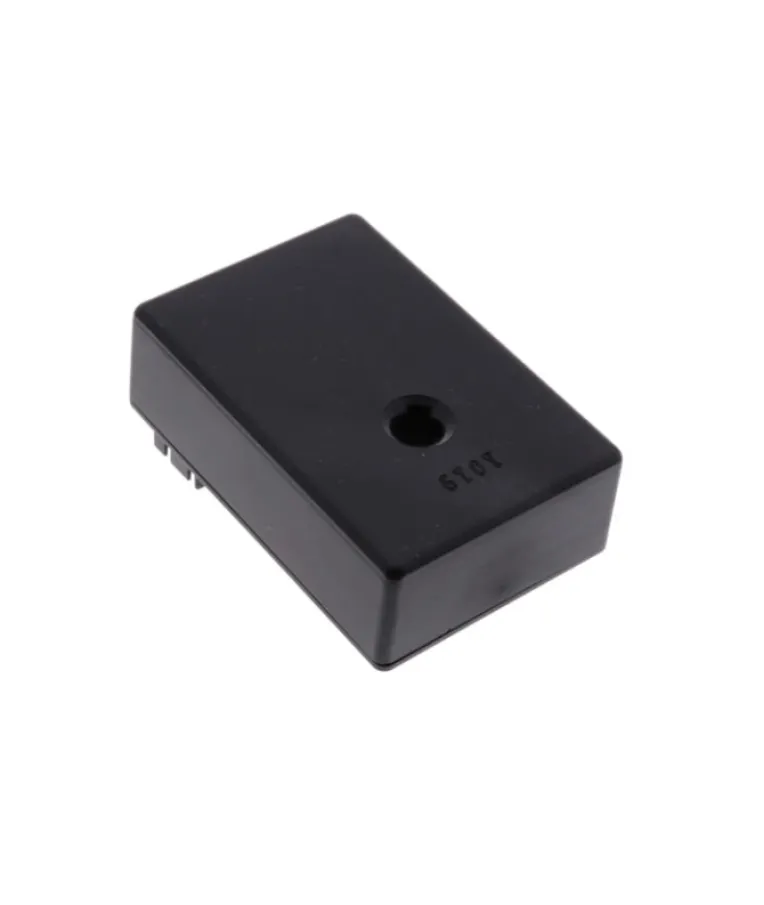

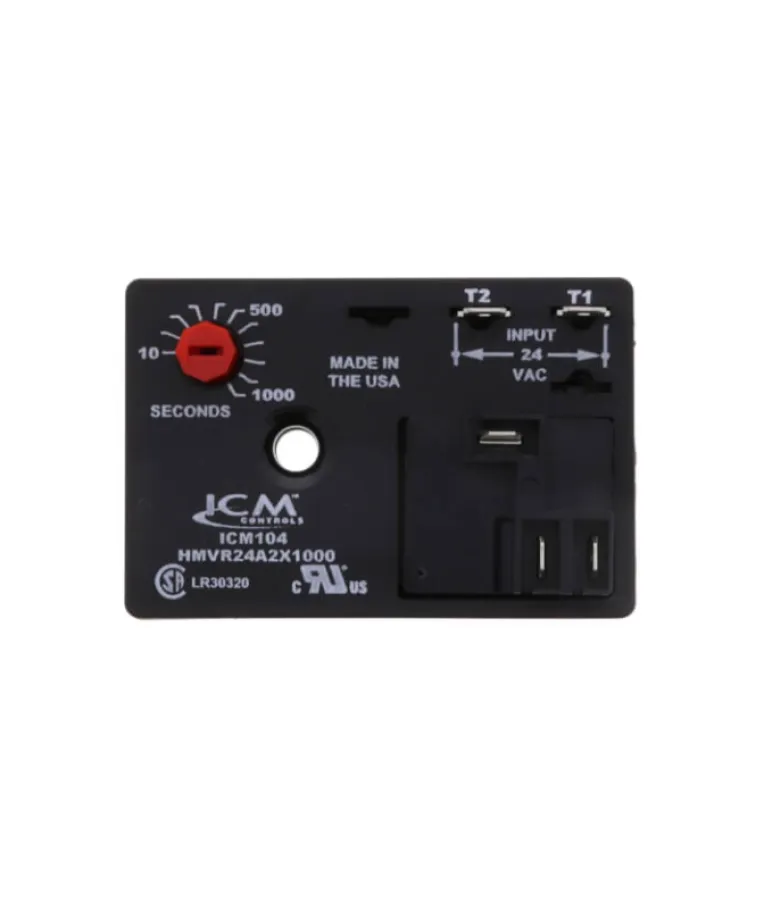

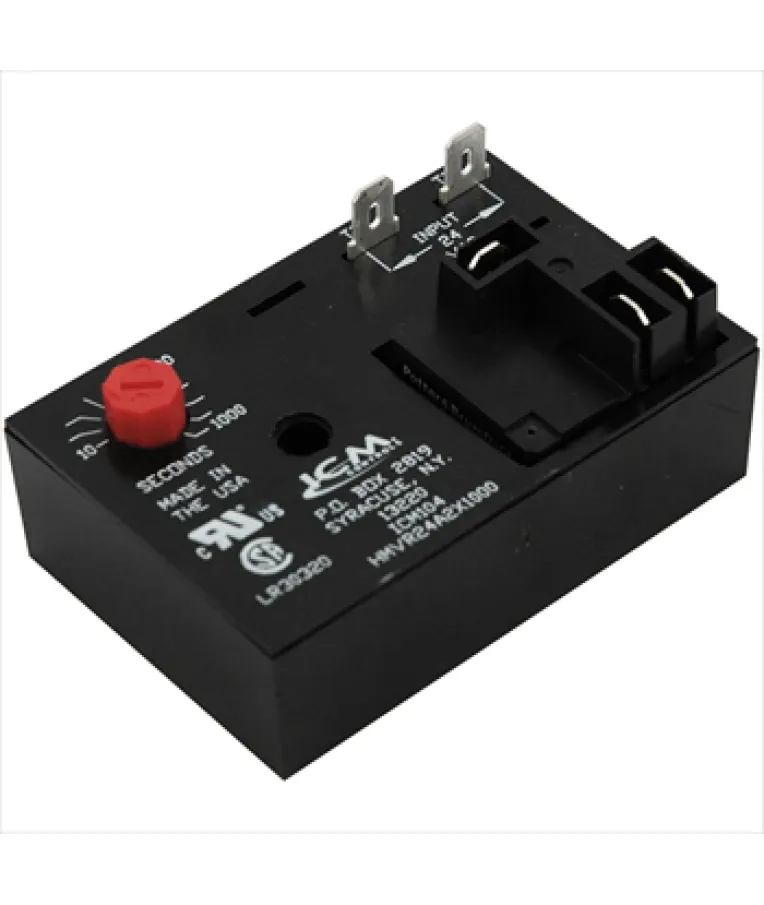

Icm Controls 104b Delay On Make Timer 1000 Seconds Adjustable

Product Description

The ICM CONTROLS 104B is a delay on make timer ideal for compressor staging and stagger starting multiple motors and other equipment, helping to reduce power surges. When power is applied to the input, the time delay begins, and after the delay, the load energizes. Features highly precise digital circuitry and input to output isolation.

• Highly precise digital circuitry
• High power, SPDT relay output
• Input to output isolation

Product Highlights

The ICM CONTROLS 104B timer has a high power, SPDT relay output and works with anticipator-type thermostats.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: 104B
• Country of Origin: United States

Technical Specifications

• Time Delay: 10-1000 Sec Knob Adjustable
• Product Type: Delay on Make
• SPDT: 1 form C
• Voltage: 18/30 VAC
• N.O.: 20 amps @ 240 VAC
• N.C.: 10 amps @ 240 VAC
• Form: SPDT, 1 form C
• Knob Adjustable Time Delay: 10-1000 Seconds
• Holding Current: 40 mA
