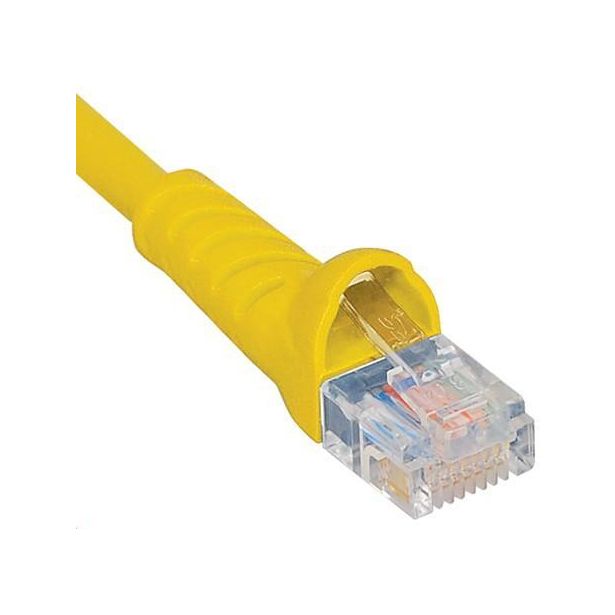

Icc ICPCSK05YL Cat 6 Patch Cord, 5 Ft REPLACEMENT: ICPCSK05YL

Product Description

The ICC ICPCSK05YL is a Category 6 patch cord with a yellow jacket and a length of 5 feet. These component rated RJ-45 molded boot patch cords are constructed with 4-pair 24 gauge (AWG) bare copper stranded wire, and a CMG / FT4 fire rated jacket. These cords are 100% tested to the highest performance standards under TIA/EIA-568.

• 100% factory tested, 50 micro-inch gold plated contacts
• Component rated and exceeds ANSI/TIA/EIA-568B.2-1 connecting hardware requirements
• Ultra slim low profile boots for high density applications, no width wasted on boot.

Product Highlights

This Cat6 patch cord offers performance, design, and value, suitable for high-density applications and backwards compatible to all lower rated category components.

Product Information

Standard Information

• Brand: ICC
• Manufacturer Part Number: ICPCSK05YL
• Country of Origin: China

Technical Specifications

• UPC/EAN Code: 633758034456
• Brand Name: ICC
• Side 1: Side 1 RJ-45 Male
• Side 2: Side 2 RJ-45 Male
• Cable Type: CAT 6
• Length: 5'
• NEC Type: CMG
• Wire Type: Cat6, Patch Cable
• Manufacturer: ICC
• Manufacturer Part Number: ICPCST05YL
• Packaged Quantity: 1
• Product Name: CAT6 Clear Boot Patch Cord
• Product Type: Network Cable
• American Wire Gauge: 24AWG
• Cable Style: Slim Cables
• Connector on First End: RJ45
• Connector on Second End: RJ45
• Contact Plating: Gold
• Device Supported: Network Device
• Jacket Material: Bare Copper - Wire, HDPE - Insulation, PC - Housing, Phosphor Bronze - Contact, PVC
• Jacket Type: CMG, CSA FT4
• Material: Bare Copper - Wire, HDPE - Insulation, PC - Housing, Phosphor Bronze - Contact, PVC - Jacket
• Shielding: No
• Solid or Stranded: Stranded
• Cable Length: 5'
• Insulation Material: High-density Polyethylene (HDPE)
