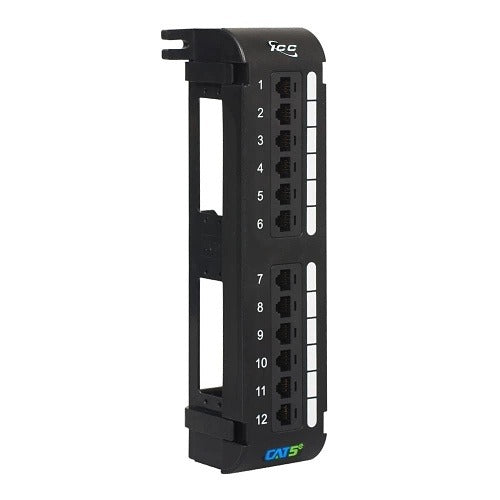

Icc ICMPP12V5E Cat5e Patch Panel 12-port 8P8C

Product Description

The ICC - INT'L CONNECTORS CABLE ICMPP12V5E is a 12-port Cat5e patch panel designed for structured cabling installations in both residential and commercial network environments. Built around 8P8C modular jacks with 110-style punchdown terminations, this panel provides a clean, organized termination point for horizontal runs from wall outlets back to a central distribution rack or cabinet. Network technicians and low-voltage cabling contractors install this panel as a core component of any structured data cabling system, consolidating multiple Cat5e runs into a single, labeled rackmount interface for easy port management and cable tracing.

This patch panel is suited for data closets, server rooms, and structured wiring enclosures where Cat5e cabling infrastructure is being installed or extended. It handles standard horizontal cable runs terminated on the rear 110-style punchdown blocks, with patch cables connecting the front ports to a network switch or router. Typical applications include office LANs, multi-unit residential data distribution, and low-voltage retrofit projects where an organized, permanent termination solution is required.

Key Features

• 12-port Cat5e 8P8C modular jacks for standard RJ45 patch cable connectivity
• 110-style punchdown termination on rear for direct horizontal cable termination
• Rackmount form factor for installation in standard patch panels cabinets or wall enclosures
• Cat5e rated performance supporting up to 100 MHz bandwidth for data and voice applications
• Sold as a single unit for flexible deployment in small to medium cabling projects

Compatibility

Designed as an OEM-style patch panel compatible with standard Cat5e cabling infrastructure using 8P8C RJ45 patch cables and 110-style punchdown termination tools in rackmount or wall-mount enclosures.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician in accordance with TIA-568 structured cabling standards. Ensure all network switch and patch cable connections are disconnected before servicing existing terminations. A 110-style punchdown tool is required for proper rear termination; do not use substitutes that may damage conductors or reduce contact quality. Verify port labeling after termination to simplify future troubleshooting and moves, adds, and changes.
