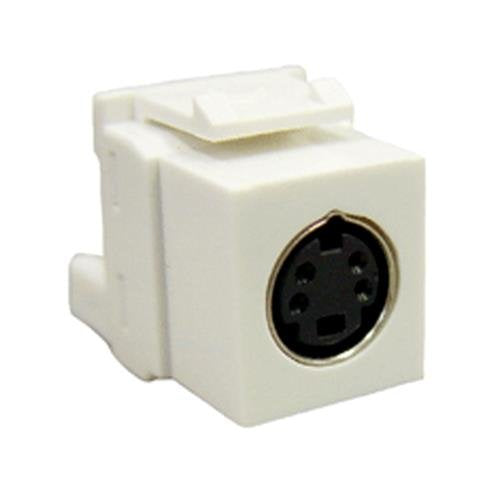

Icc IC107SVIWH Module, S-Video Idc, White

Product Description

The ICC IC107SVIWH high performance S-VHS video modular jack provides a clean connection point for wired electronics to wall outlets. Designed for twisted pairs using the popular and easy 110 IDC termination, eliminating the need for soldering. It allows video transfer over UTP cable and is compatible with modular wallplates and multimedia panels.

• S-VHS video for maximum signal transfer quality
• Designed for twisted pairs using the popular and easy 110 IDC termination
• Compatible standard wall plates, faceplates, surface mount boxes, and blank patch panels

Product Highlights

Provides a clean connection point for wired electronics to wall outlets allowing cables to be hidden. Compatible with IC107 and IC108 faceplates and surface mount boxes.

Product Information

Standard Information

• Brand: ICC
• Manufacturer Part Number: IC107SVIWH
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Side 1: S-Video
• Side 2: 110 IDC
• Connection Type: Punchdown, Push-on, Spring Clip
• Cable Type: CAT 5e, CAT 6
• Wire Type: UTP
• Connector Type: S-Video
• Connector Method: Punchdown
• Specification Met: RoHS
• Indoor/Outdoor Usage: Indoor
• Type: S-VHS Video Modular Jack
• Compatibility: IC107 and IC108 Faceplates, Surface Mount Boxes
• Termination: 110 IDC
• Tool Required: ICC 110 Punch Down Tool (ICACSPDT00)
