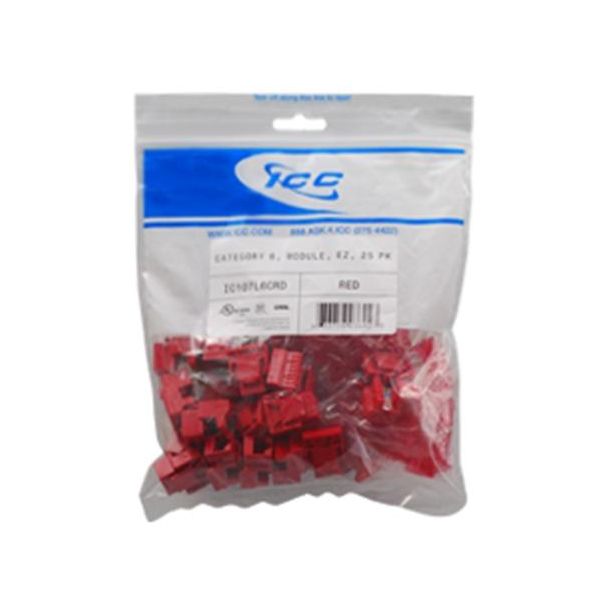

Icc IC107L6CRD cat6 rj45 keystone jack 25-pack

Product Description

The ICC IC107L6CRD CAT6 RJ45 keystone jacks are engineered for Gigabit Ethernet applications. These 8-position 8-conductor (8P8C) RJ-45 keystone jacks provide superior performance and reliability. The advanced printed circuit board design is tuned to provide optimum signal quality exceeding TIA Category 6 performance standards. The EZ connector's flat back IDC construction offers faster installation.

• CAT6 rated connectors provide excellent performance for data networks.
• Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts.
• Enhanced crosstalk cancellation reduces return loss and improves performance.

Product Highlights

The ICC CAT6 RJ45 keystone jack is designed for fast termination and supports high-speed data networks. It is backward compatible and UL 1863 compliant.

Product Information

Standard Information

• Brand: ICC
• Manufacturer Part Number: IC107L6CRD
• Country of Origin: Taiwan

Technical Specifications

• Brand Name: ICC
• Manufacturer Part Number: IC107L6CRD
• Product Line: EZ
• Product Type: Network Connector
• TAA Compliant: yes
• Connector Type: RJ45 Keystone Female
• ADI Part Number: H2-107L6CRD
• Package Contents: Cat6 RJ45 Keystone Jack for EZ Style 25 x Wire Cap
• Connector Details: 1 x RJ-45 Keystone - Female
• Packaged Quantity: 25
• Network Category Type: CAT6
• Wire Type: CAT6
• Mount Type: Surface mount
• Features: Crosstalk Protection,Far End Cross Talk (FEXT),Flame Retardant,Near End Cross Talk (NEXT),PoE++
• Manufacturer: ICC
• Cable Type: Component, Ethernet
• Compatible Devices: Wall Plate, Patch Panel
• Special Feature: Data Transfer, High Speed, Lightweight
• Compatible Phone Models: Cat 6
• Recommended Uses For Product: Networking applications, including complex networking environments, Gigabit Ethernet applications, and PoE++ powered devices
• Ethernet cable category: Cat 6
• Connector Gender: Female Ports
• Data Transfer Rate: 1 Gigabits Per Second
• Shape: Round
• Number of Pins: 8
• Unit Count: 25.0 Count
• Indoor/Outdoor Usage: Indoor, Outdoor
• Number of Items: 25
• Customer Package Type: FFP
• Outer Material: ABS, UL 94V-0
• Side 1: RJ-45 (F)
• Side 2: 110 IDC
• Connection Type: EZ-Punch
• Packaging: 25 Pcs.
• Connector Method: EZ-SnapJack
• Product Material: Polycarbonate, Acrylonitrile Butadiene Styrene (ABS), Gold, Nickel, Plastic, Phosphor Bronze Alloy
• Product Family: EZ
• Material Details: Polycarbonate - Termination Cap, Acrylonitrile Butadiene Styrene (ABS) - Housing, Gold - Jack Wiring, Nickel - Jack Wiring, Plastic - Housing, Phosphor Bronze Alloy - Jack Wiring
• Country of Origin: Taiwan
• Contact Plating: Gold, Nickel
• Height: 0.64"
• Weight: 1.10lb
• Width: 0.57"
• Length: 1.11"
• Indoor/Outdoor: Indoor
