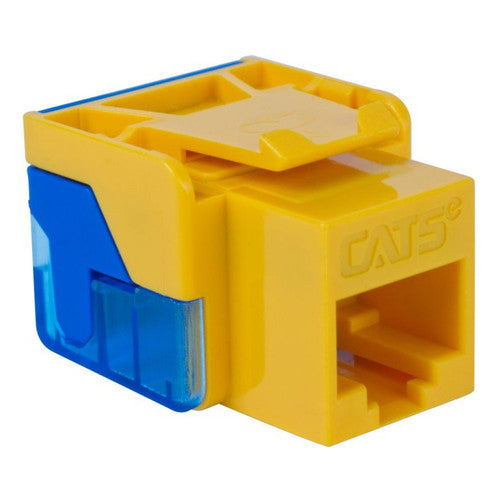

Icc IC107E5CYL Cat5e EZ Modular Keystone Jack 25 Pack

Product Description

The ICC IC107E5CYL Cat5e EZ Modular Keystone Jack 25 Pack is designed for high-performance Cat5e network applications. These professional-grade Cat5e rated modular connectors provide excellent performance for data networks requiring maximum speed and bandwidth. These keystone jacks exceed Category 5e industry performance requirements and are easy to terminate with a standard 110 punch down termination tool.

• CAT 5e rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
• PCB technology provides maximum performance and superior signal quality
• Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
• Exceeds Category 5e industry performance requirements

Product Highlights

The ICC IC107E5CYL keystone jacks are backwards compatible and include an integrated TIA-568A/B color wiring diagram. Designed with rear 110 IDC reducing termination time.

Product Information

Standard Information

• Brand: ICC
• Manufacturer Part Number: IC107E5CYL
• Country of Origin: Taiwan

Technical Specifications

• Part#: IC107E5CYL
• UPC/EAN Code: 633758095907
• Brand: ICC
• NDAA Compliance: No
• Wire Type: 22-24 AWG, CAT 5e
• Connector Type: RJ-45
• Connector Method: EZ-SnapJack
• Material Housing: PC, UL 94V-0
• Material Termination Cap: PC, UL 94V-0
• Current rating: 1.5 amps
• Insulation resistance: 500 mohms min
• Contact resistance: 20 mohms max
• DC resistance: 0.1 ohms max
• Plug insertion life: 750 cycles min
• Plug and Jack Contact Force: 100 grams min using FCC approved plug
• Plug Retention Force: 50N (11 lbs) for 60s ± 5s
• Temperature: -40° to 150° F (-40° to 68° C)
• Jack wiring: Phosphor Bronze alloy plated with 50 micro inches of gold over 70-100 micro inches of nickel
• Connector: insulation displacement connector (IDC); accepts 22-24 AWG solid wire
