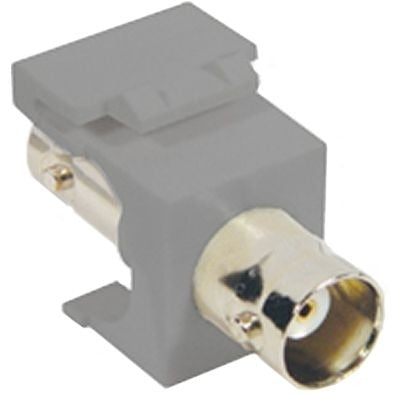

Icc ic107bncgy Bnc Modular Jack Female to Female 75 Ohm

Product Description

The ICC ic107bncgy is a BNC female-to-female 75 ohm modular jack module designed for low-loss video signal transmission in structured cabling installations. The module provides a through-connection between two BNC-terminated coaxial cables, maintaining 75 ohm impedance to preserve signal integrity across the connection point. It is suited for CCTV camera systems, serial digital video, NTSC analog video, and satellite uplink and downlink signal runs. Installation is typically handled by low-voltage technicians and AV or security system integrators working with coaxial-based video distribution infrastructure.

This module is used in residential and commercial structured cabling applications where BNC connectors are required at wall plates, patch panels, or surface-mount enclosures. Common deployments include CCTV surveillance systems, broadcast-quality analog video runs, and satellite signal distribution. The 75 ohm impedance matches standard video coaxial cable specifications, making it appropriate for any installation requiring a consistent impedance-matched inline connection at a modular outlet point.

Key Features

• Female-to-female BNC pass-through maintains 75 ohm impedance for video signal integrity
• Compatible with CCTV, NTSC analog video, serial digital video, and satellite uplink and downlink applications
• Modular format fits standard low-voltage wall plates and structured cabling panels
• Designed for use wherever a 75 ohm BNC modular outlet is required

Compatibility

Designed as an OEM-style modular jack replacement or new installation component for 75 ohm BNC coaxial video system outlets in structured cabling applications.

Installation Notes

Installation is performed by licensed low-voltage technicians or qualified AV and security integrators. Disconnect or power down all connected signal sources and equipment before installing or replacing the module. Verify that the coaxial cable impedance matches the 75 ohm rating of this jack before terminating. Follow applicable low-voltage wiring codes and manufacturer guidelines for the host wall plate or panel assembly.

Technical Specifications

• Connector Type: BNC Female to Female
• Impedance: 75 ohm
• Signal Compatibility: CCTV, NTSC Analog Video, Serial Digital Video, Satellite Uplink and Downlink

Standard Information

• Brand: ICC
• Manufacturer Part Number: ic107bncgy
