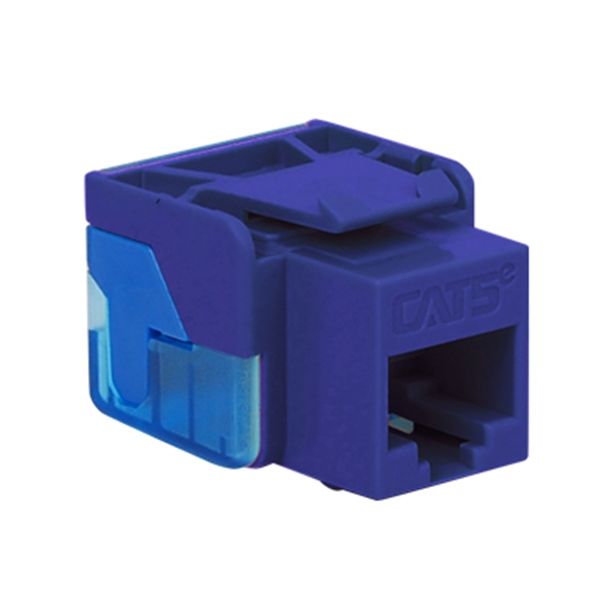

Icc IC1078E5PR Cat 5e EZ Keystone Jack

Product Description

The ICC IC1078E5PR is an 8-position 8-conductor (8P8C) modular keystone jack engineered for superior performance and reliability, supporting up to Gigabit Ethernet applications. Designed for easy termination, this Category 5e EZ modular jack simplifies installation and improves overall installation time. It provides optimum signal quality with up to 10dB headroom.

• CAT 5e rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
• PCB technology provides maximum performance and superior signal quality
• Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals

Product Highlights

The IC1078E5PR keystone jack exceeds Category 5e industry performance requirements and is compatible with ICC faceplates, inserts, surface mount boxes, and blank patch panels.

Product Information

Standard Information

• Brand: ICC
• Manufacturer Part Number: IC1078E5PR

Technical Specifications

• UPC/EAN Code: 633758004084
• Brand: ICC
• Category: Connectors, Keystone Jacks
• Side 1: RJ-45 (F)
• Side 2: 110 IDC
• Connection Type: EZ-Punch
• Cable Type: CAT 5e
• Wire Type: CAT 5e
• Connector Type: RJ-45
• Connector Method: EZ-SnapJack
• Current rating: 1.5 amps
• Insulation resistance: 500 mohms min.
• Contact resistance: 20 mohms max.
• DC resistance: 0.1 ohm max.
• Transmission performance: exceeds Category 5e connecting hardware requirements specified in TIA/EIA-568-B.2 when used with compatible horizontal cable
• Plug insertion life: 750 cycles min.
• Plug and jack contact force: 100 grams min. using FCC approved plug
• Plug retention force: 30 lbs min.
• Temperature: -40 to 150 degrees F (-40 to 68 degrees C)
• Housing: ABS, UL 94V-0
• Jack wiring: 50 micro inches of gold over 100 inches of nickel
• Connector: insulation displacement connector (IDC); accepts 22-24 AWG solid wire
• Wiring: TIA-568A/B
• Termination: 110 punch down
• Compatibility: ICC faceplates, inserts, surface mount boxes, and blank patch panels; ICC furniture faceplates, bezels, and surface mount boxes; ICC Category 5e patch cords
• Listing: UL listed
