Ibc VX110-17-110 Vx 110

Product Description

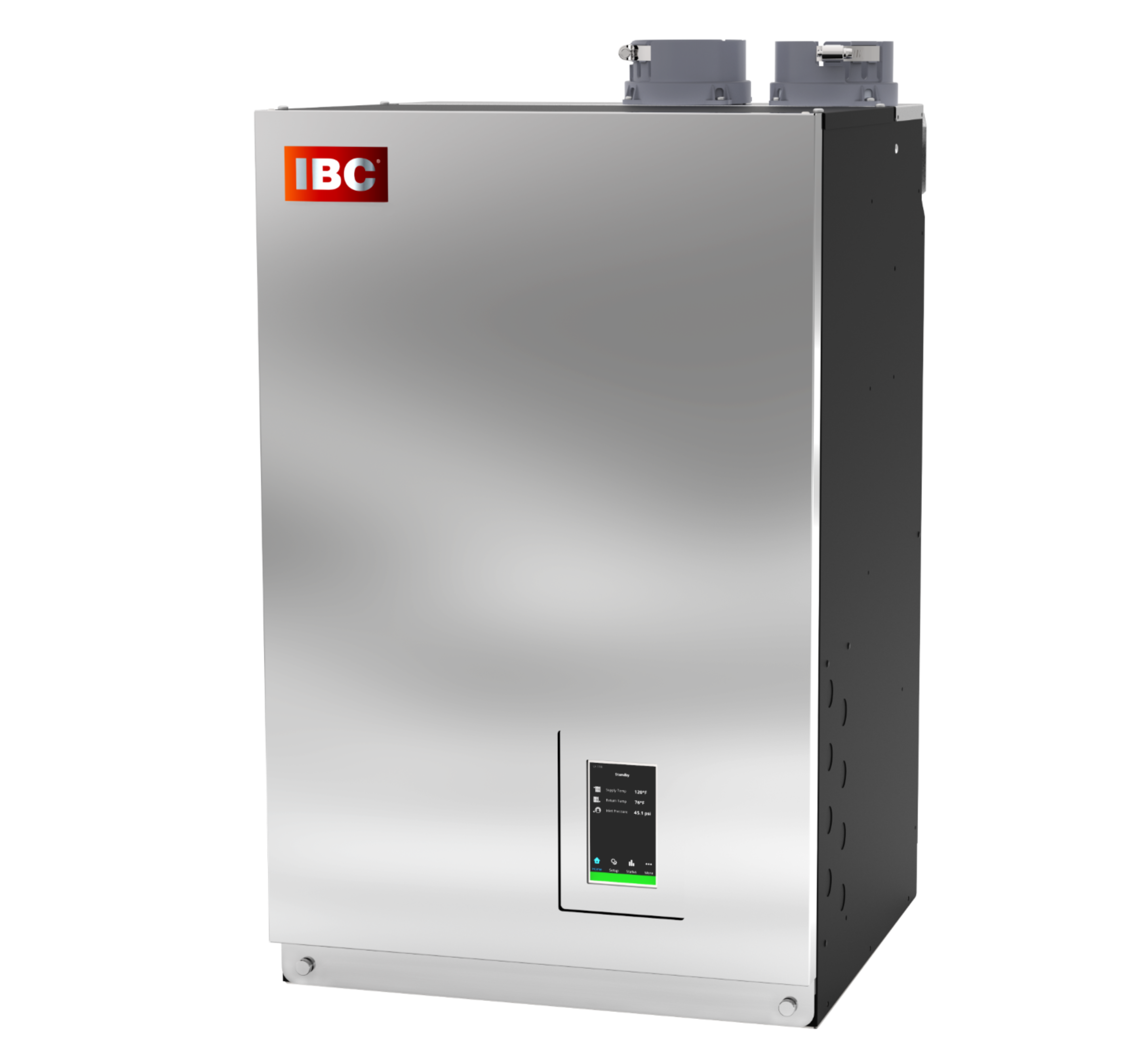

The IBC VX110-17-110 is a residential high-efficiency condensing boiler with a compact design. It features a built-in 4 zone pump or valve control in addition to the primary control, and it's approved for PVC/CPVC/PPs venting up to 240ft. The boiler also has a patented moisture management system and a built-in outdoor reset control of water temperature.

• 95% AFUE
• Built-in CSA/UL approved LWCO and manual reset high limit
• Turndown ratio of up to 6.5:1

Product Highlights

This boiler is designed to save time, space, and money, with a focus on efficiency and ease of use.

Product Information

Standard Information

• Brand: IBC
• Manufacturer Part Number: VX110-17-110

Technical Specifications

• CSA Input (Natural Gas or Propane *) – MBH: 16.9 – 110
• CSA Input (Natural Gas or Propane *) – KW: 5 – 32.2
• CSA Output – MBH: 16.2 – 101.5
• CSA Output – KW: 4.74 – 29.8
• A.F.U.E: 95%
• Min gas pressure (Nat. Gas or Propane) – inch w.c.: 4
• Max gas pressure (Nat. Gas or Propane) – inch w.c.: 14
• Power (120Vac/60Hz) – Watts @ full fire – Watts ( without pumps): 54
• Pressure vessel water content – USG/Liters: 1.88 / 7.12
• Max boiler flow rate – USgpm: 14
• Min boiler flow rate – USgpm: 2
• Max operating pressure – psig: 50
• Min water pressure – psig: 8
• Approved installation altitude – ASL: 0 – 12,000 ft
• Ambient temperature – Low (°F/°C): 32°F / 0°C
• Ambient temperature – High (°F/°C): 122°F / 50°C
• Max relative humidity (non-condensing): 90%
• Min water temperature (°F/°C): 34°F / 1°C
• Max water temperature (electronic-limit) (°F/°C): 190°F / 88°C
• Max ΔT – supply / return (electronic fence): 40°F / 22.2°C
• Maximum equivalent vent length, each side 2”: 100
• Maximum equivalent vent length, each side 3”: 240
