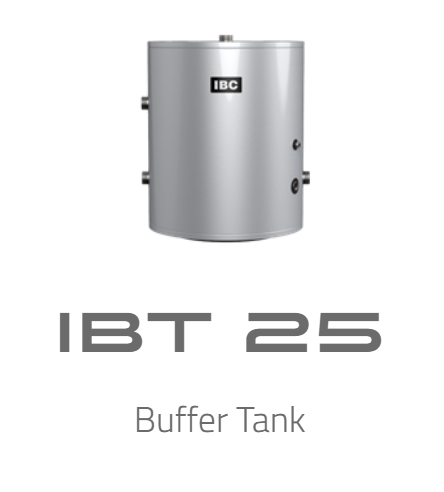

Ibc IBT25 Interstor Hydronic Buffer Tank 23.2 gal REPLACEMENT 035-020

Product Description

The IBC IBT25 Interstor Hydronic Buffer Tank reduces burner short cycling with low mass boilers when heating system zone load requirements are less than the minimum thermal output of the boiler. It provides a thermal buffer and hydraulic separation, decoupling heating distribution system water flow from boiler water flow. All welds are made by an automated TIG welding process. The tank is pickled and passivated inside and outside for corrosion resistance.

• Vessel Material: 444 grade Stainless Steel
• Connection Fittings Material: 316L grade stainless steel
• Insulation: 2 in thick High Density foam insulation

Product Highlights

The IBT25 buffer tank improves efficiency and comfort while decreasing wear on boiler components. Ideal for water heating and storage.

Product Information

Standard Information

• Brand: IBC
• Manufacturer Part Number: IBT25

Technical Specifications

• Vessel Material: 444 grade Stainless Steel
• Connection Fittings Material: 316L grade stainless steel
• Thermal Well: 3/8 in ID thermal well for temperature control
• Insulation: 2 in thick High Density foam insulation
• Jacket: Galvanized and Powder Coated steel jacket
• Capacity: 23.2 gal
• Diameter: 21-7/10 in
• Drain Size: 1-1/2 in
• Manufacturer: IBC Technologies Inc
• Manufacturer #: IBT25
• Pressure Rating: 150 psi
• Series: Interstor
