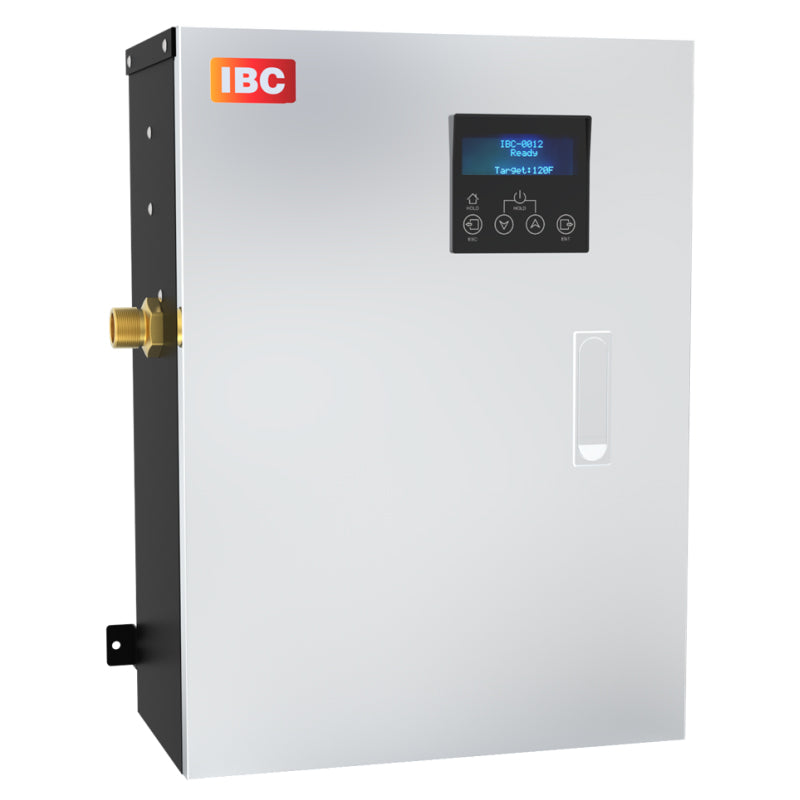

Ibc EBX-4K-240 EBX Series 4.0 kW

Product Description

The IBC EBX-4K-240 EBX Series are high-efficiency modulating electric boilers suitable as a primary or secondary heat source for space heating needs up to 4.0 kW. Its compact design allows for easy and economical installation in locations without fossil fuel connections or venting. The EBX is 100% energy-efficient with no carbon emissions produced.

• Easy set-up for either Set-Point or Outdoor Reset operation
• Full modulation control of heating elements (0-100%)
• Dual Titanium heating elements for long life

Product Highlights

The EBX series offers a user-friendly interface, built-in 3-speed boiler pump, and is compatible with IBC Air Handlers, providing efficient and flexible heating solutions.

Product Information

Standard Information

• Brand: IBC
• Manufacturer Part Number: EBX-4K-240

Technical Specifications

• Product Type: Boilers
• Brand: IBC
• Power @ 240V: 1.3 – 13.7 MBH / 0.4 – 4.0 kW
• Power @ 208V: 1.0 – 10.2 MBH / 0.3 – 3 kW
• Max. Current Draw (w/ pump) @ 240V: 17.6 A
• Max. Current Draw (w/ pump) @ 208V: 15.4 A
• Breaker Size: 30 A
• Copper Wire Size: 10 AWG
• Min. Ambient Temperature: 32°F / 0°C
• Max. Relative Humidity (Non-Condensing): 90%
• Max. Ambient Temperature: 122°F / 50°C
• Min. Water Temperature: 34°F / 1°C
• Max. Water Temperature (Electronic Hi-Limit): 190°F / 88°C
• Max. Water Temperature Lockout Limit: 210°F / 99°C
• Weight (Empty): 29 lbs / 13.2 kgs
• Min. Boiler Flow Rate: 0.7 USgpm / 2.6 Lpm
• Max. Boiler Flow Rate: 4.2 USgpm / 16 Lpm
• Max. Operating Water Pressure*: 50 psig / 345 kPa
• Min. Water Pressure: 8 psig / 55 kPa
• Element Construction: Titanium
