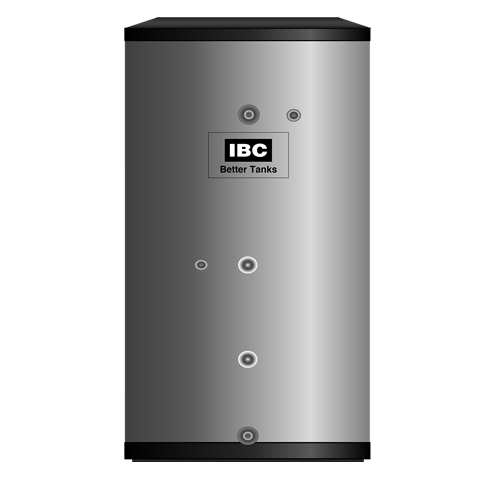

IBC BTI40 Interstor 40 Gallon Indirect Water Heater

Product Description

The IBC BTI40 Interstor is a 40-gallon indirect water heater for domestic hot water use. It has a stainless steel tank and a smooth-wall stainless steel coil heat exchanger. This model includes a removable inspection port for access to the coil and tank, along with a standard aquastat and a ten thousand temperature sensor.

• Features a stainless steel tank and coil
• Equipped with a removable inspection port
• Includes a standard aquastat and ten thousand temperature sensor

Product Highlights

This water heater is ideal for homes needing efficient hot water solutions. It is designed to work with a boiler output of one hundred thousand BTU, ensuring effective performance in various applications.

Product Information

Standard Information

• Brand: IBC
• Model: BTI40

Technical Specifications

• Tank Size (Gallons): 39.9
• Heat Exchanger Material: Stainless Steel
• Tank Material: Stainless Steel
• Heat Exchanger Style: Coil
• Number of Heat Exchangers: 1
• Height (inches): 47
• Diameter/Width (inches): 21.4
• Boiler Water Connection: 1 Male
• Water Inlet Size: 3/4 Male
• Hot Water Outlet Size: 3/4 Male
• Input Water Temperature: 180 degrees
• Domestic Water Temperature: 140 degrees
• First Hour Rating (GPH): 188
• Continuous Flow (GPH): 156
• Relief Valve: No
• Boiler Output Required (BTU): 100000
• Approximate Weight (pounds): 66.2
• DHW In/Out: 3/4
• Boiler Water In/Out: 1
• Relief Valve Connection: 3/4
• Max. First Hour Rating at 135°F: 188 gal/hr
• Continuous Rating at 135°F: 156 gal/hr
• Boiler Waterflow (GPM): 8
• Pressure Drop Through Coil (ft. Water): 3
