Ibc 034-014T Indirect Tank DTI-65

Product Description

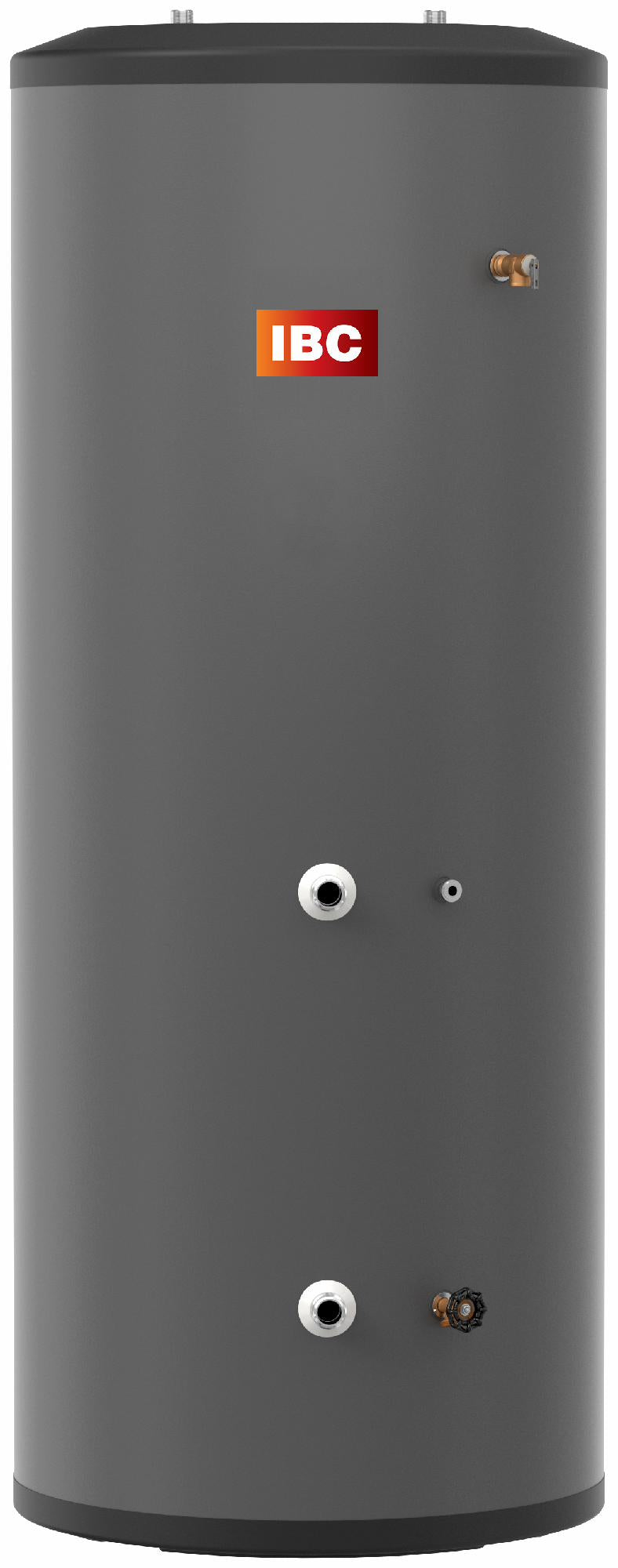

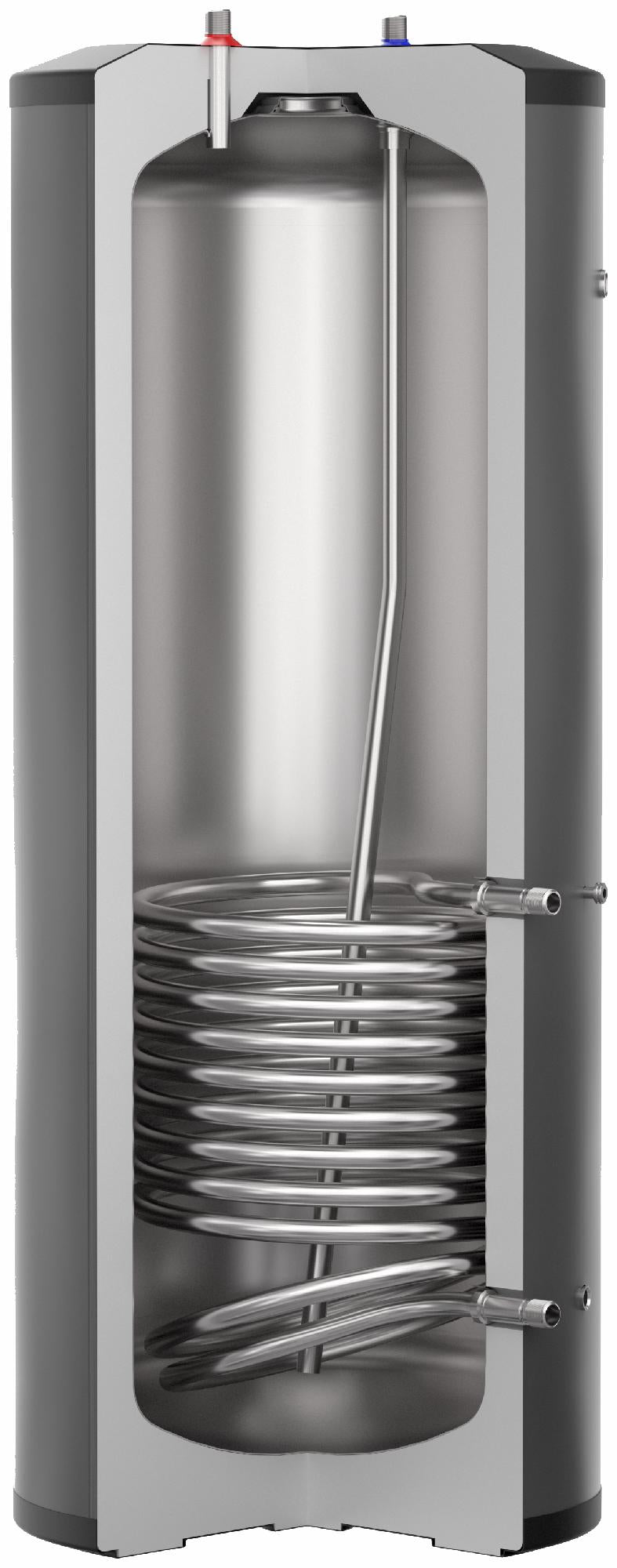

The IBC 034-014T indirect tank, also known as DTI-65, features dimensions of 23.8 x 23.8 x 59.5 inches and weighs 96 lb. It incorporates a stainless steel tank and a high-capacity smooth wall stainless steel coil. It also includes an aquastat and 10K temperature sensor.

• Includes Aquastat and 10K temperature sensor
• Removable inspection port for easy access to the coil and tank
• 2 inches of polystyrene foam installation

Product Highlights

This indirect tank features a stainless steel tank, high capacity coil, and includes an aquastat and temperature sensor.

Product Information

Standard Information

• Brand: IBC
• Manufacturer Part Number: 034-014T

Technical Specifications

• Type: Water Heater
• Brand: IBC Boilers
• Tank Size (Gallons): 64.5
• Heat Exchanger Material: Stainless Steel
• Tank Material: Stainless Steel
• Heat Exchanger Style: Coil
• Number of Heat Exchangers: 1
• Boiler Water Connection: 1 Male
• Water Inlet Size: 3/4 Male
• Hot Water Outlet Size: 3/4 Male
• Boiler Connection Location: Side
• Input Water Temperature: 180 degrees
• Domestic Water Temperature: 140 degrees
• First Hour Rating (GPH): 325
• Continuous Flow (GPH): 269
• Relief Valve: No
• Boiler Output Required (BTU): 172000
