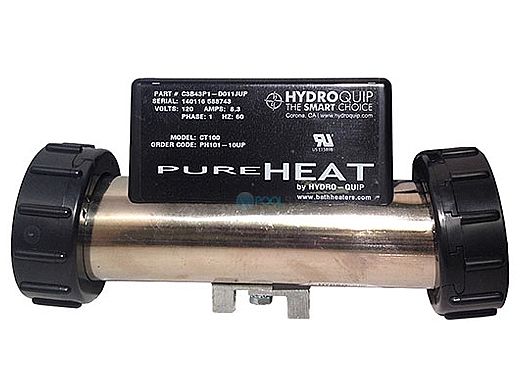

The Hydro-Quip PH101-10UP is the perfect choice for anyone looking to keep their bath water at a warm, enjoyable temperature. This heater features 1" socket unions (pressure) or 1-1/2" socket unions (vacuum), a 1.9" stainless housing, and a 7" flange to flange length. It is available in both 115v and 230v models and comes equipped with an automatic smart thermostat (factory set to 104 degrees).

Additionally, it has an intelligent high-temperature limit circuit that will not trip, as well as a heater control pressure switch (pressure-activated models) and vacuum switch on the vacuum-activated models. The Hydro-Quip PH101-10UP also features a heater “On” indicator light.

Thanks to its compact design and reliable performance, it is the perfect choice for anyone wanting to ensure that their bath water stays at an enjoyable temperature.

• 1.9" stainless housing
• 7" flange to flange length
• 115v or 230v models
• Automatic smart thermostat (Factory set to 104 deg.)
• Intelligent high temperature limit circuit (will not trip)
• Heater control pressure switch (pressure activated models)
• Heater control vacuum switch (vacuum activated models)
• Heater "ON" indicator light
• Cord Type - NEMA
• Cord - 3 ft
• Heater Wattage - 1.0kW
• Voltage - 120
• Features - w/Pressure Switch
• Inlet Size/Outlet Size - 1.5"
• Bath Heater Type - Pressure
• Plumbing Style - In-Line
• First Plumbing Connection - 1", 1-1/2" Slip (s), Spigot (spg)
• Second Plumbing Connection - 1", 1-1/2" Slip (s), Spigot (spg)
• Model - Pure Heat

Additional information:
Alternate Part Numbers - 46-355-1045, HQPH10110UP
