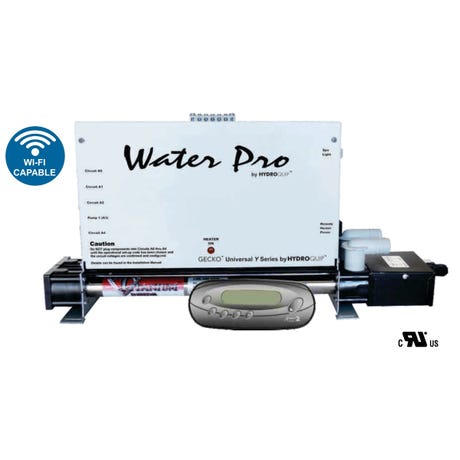

HYDROQUIP CS6P52Y-US Spa Control System with 5.5kW Low Flow Heater

Product Description

The HYDROQUIP CS6P52Y-US spa control system is designed for effective management of spa functions, featuring a built-in 5.5kW low flow heater suitable for both 115V and 230V systems.

• Supports multiple pumps and blower connections for enhanced functionality.
• Input terminal block allows for easy wire insertion, accommodating wire sizes up to #4 AWG.

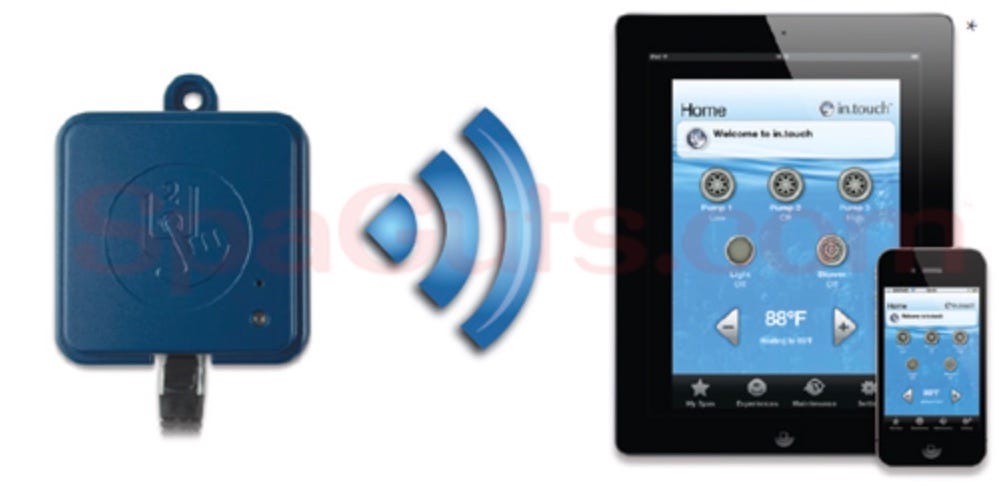

• In.link connector facilitates automated programming and configuration updates.

Product Highlights

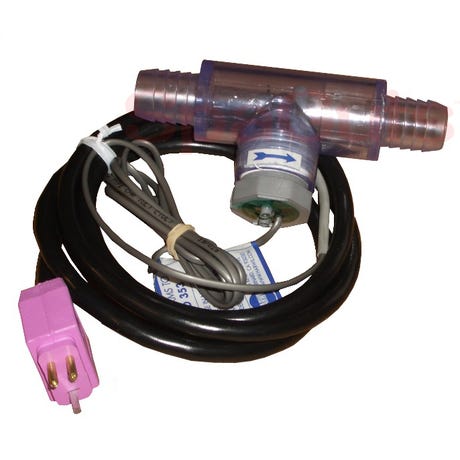

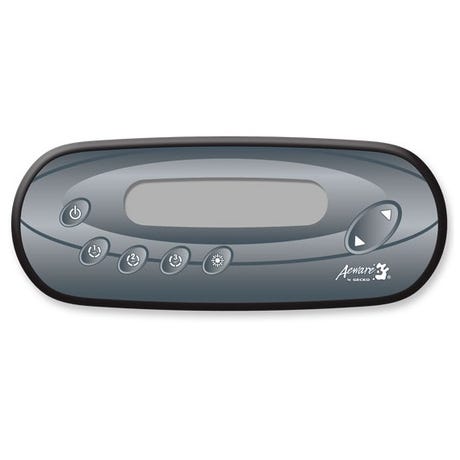

This system includes a keypad for user interaction and monitors water pressure to protect the heater from overheating.

Product Information

Standard Information

• System Voltage: 115/230V
• Heater Type: Low Flow

Technical Specifications

• Heater Wattage: 5.5kW

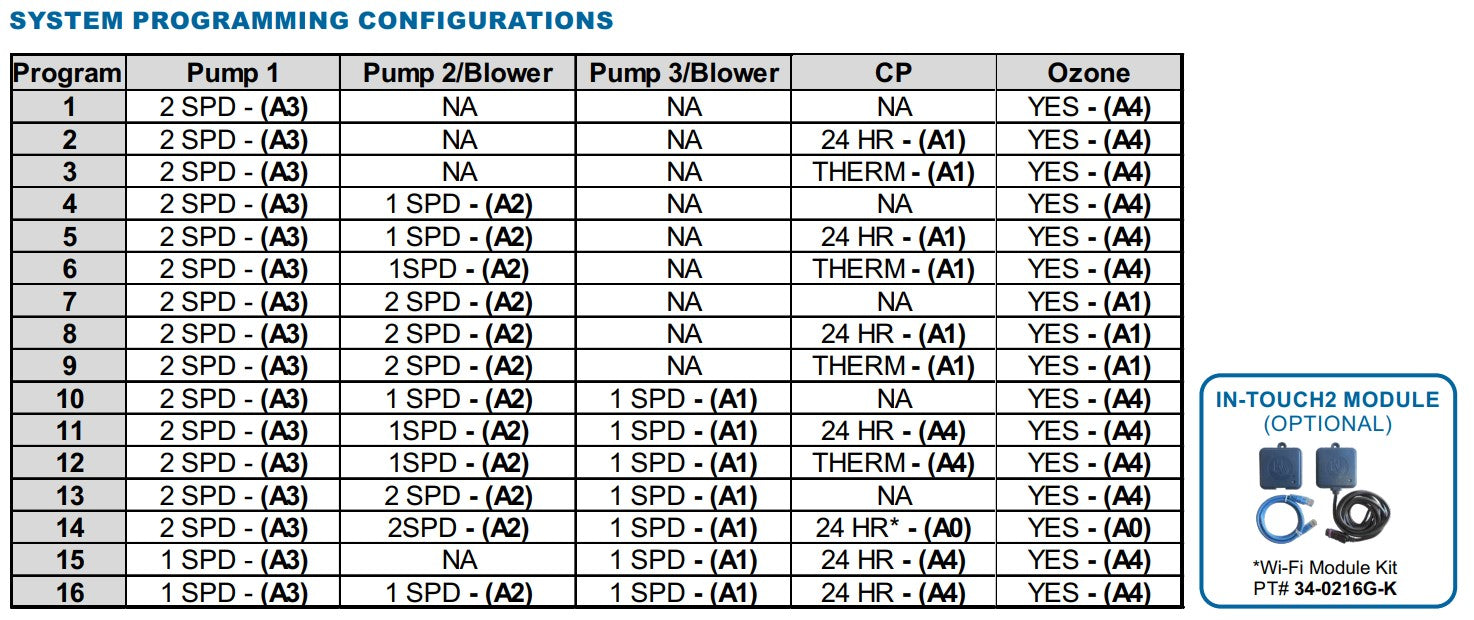

• Supports: Pump1 + Pump2 + Blower/Pump3
• INPUT CONNECTIONS: 220V 60Hz Power Supply
• Pump 1 Circuit: 2 Speed, 110V/220V, 15A Max
• Pump 2 Circuit: 1 or 2 Speed, 110V/220V, 15A Max
• Blower Circuit: 1 Speed, 110V/220V, 8A Max
• Circ Pump Circuit: 110V/220V, 5A Max
• Ozone Circuit: 110V/220V, 5A Max
• Topside Panel Size: 7.25 inch L x 3.0 inch W
