HYDROQUIP 10-WE14-120 Circulation Pump - 1/4 HP - 1.5

Product Description

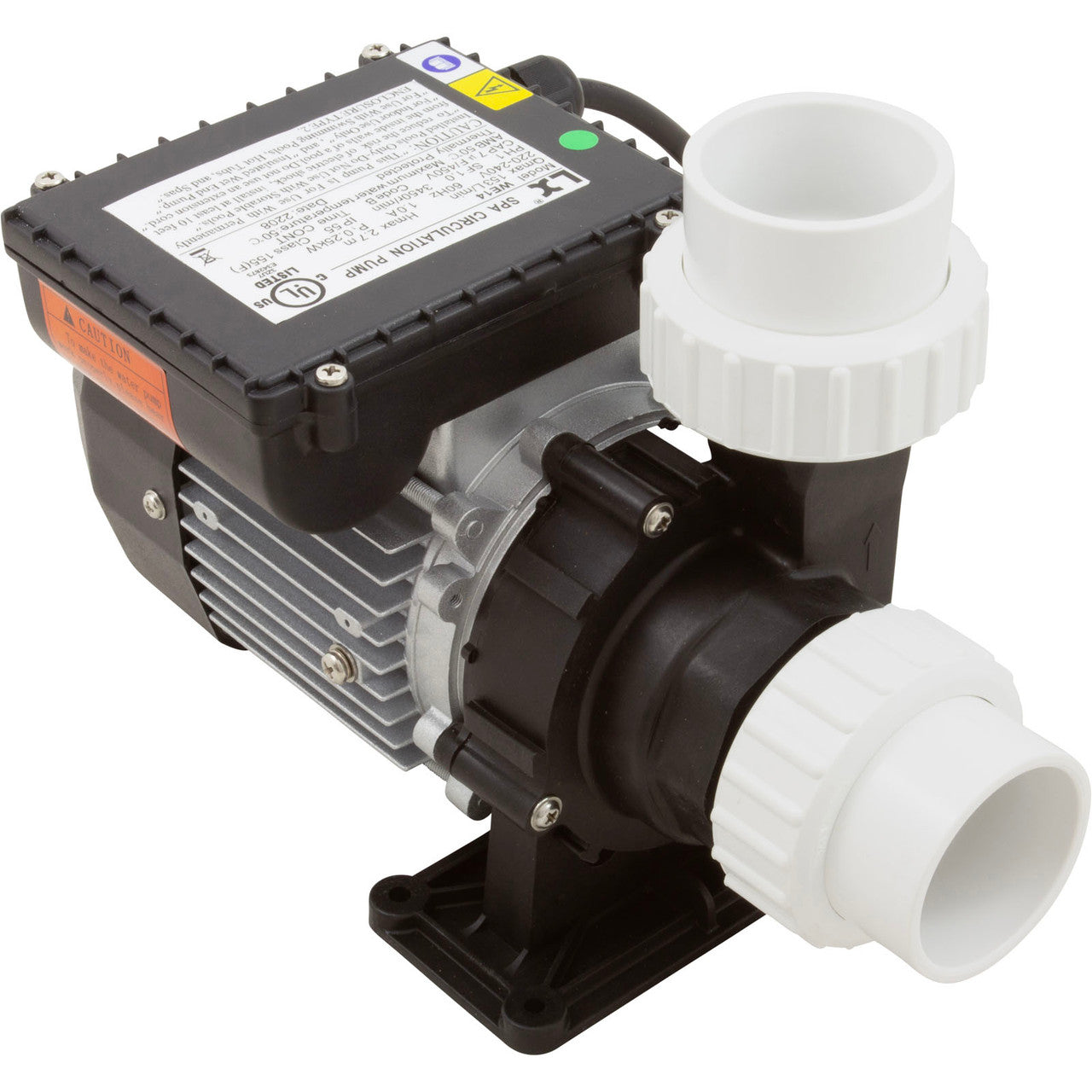

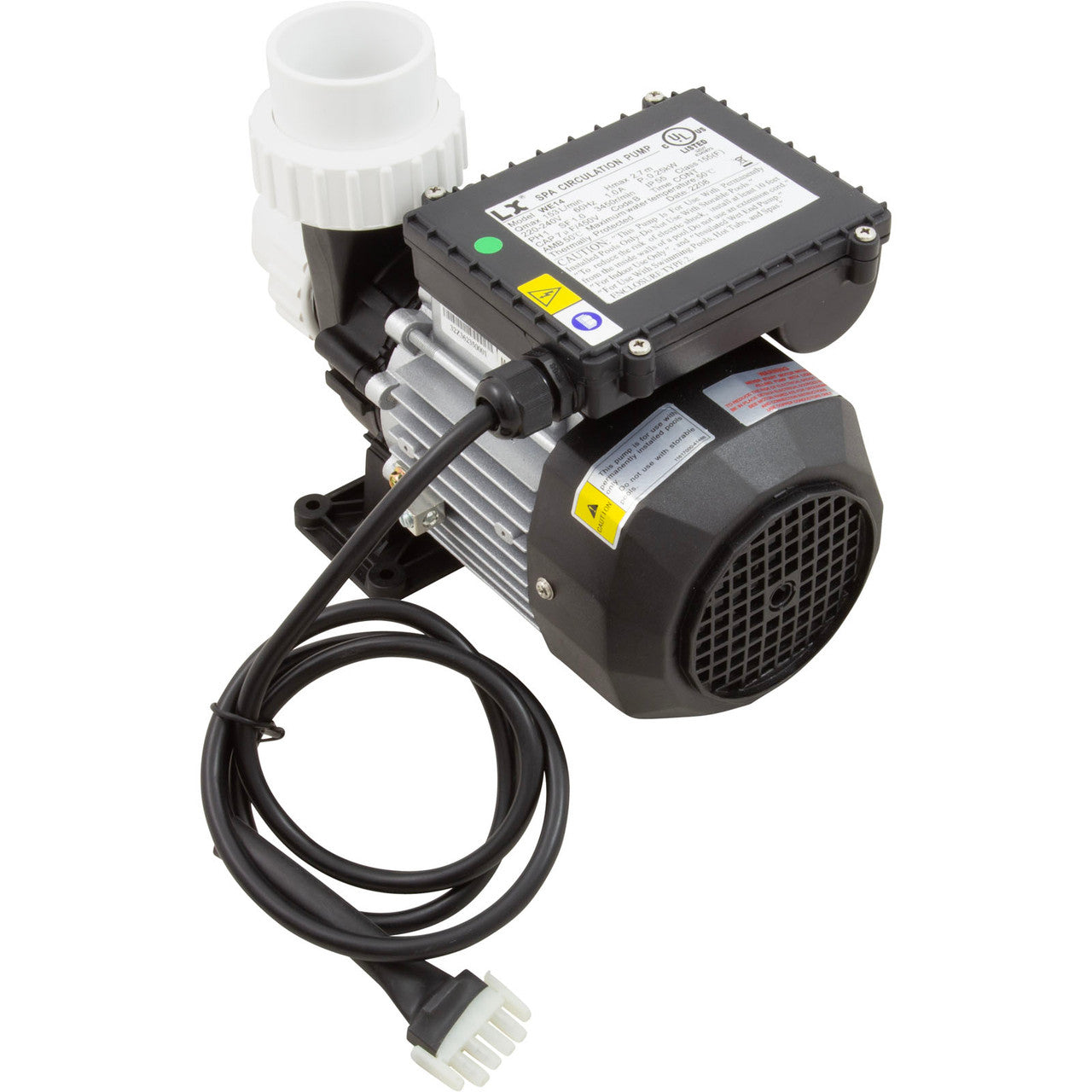

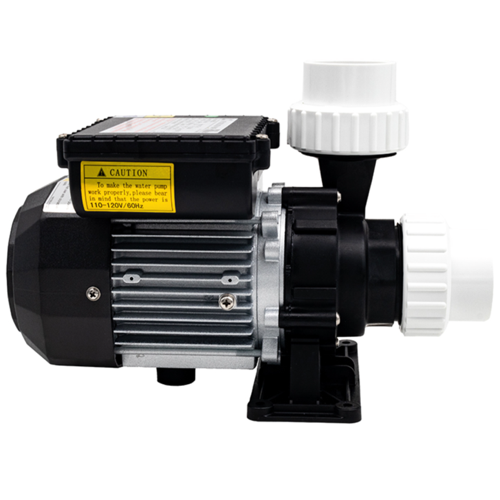

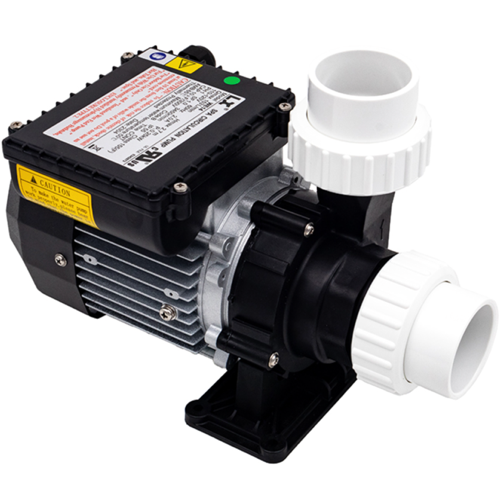

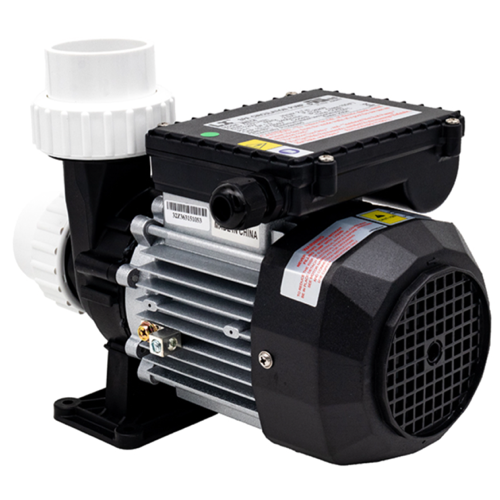

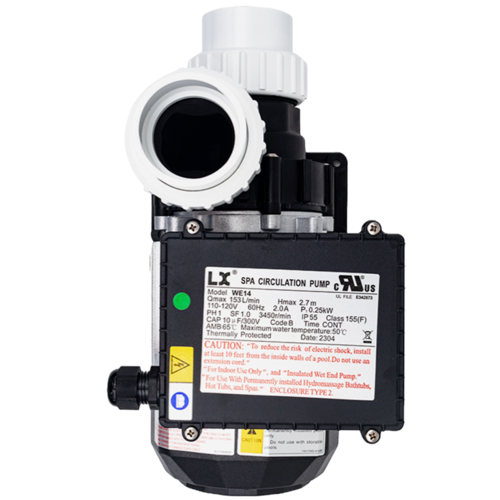

The HydroQuip 10-WE14-120 is a circulation pump designed for efficient hot tub water flow. This pump is a 1/4 horsepower unit that operates on 120 volts and draws 1.6 amps. It connects to standard plumbing with 1.5 inch male buttress threads for both suction and discharge, making installation straightforward.

• Designed for one-speed operation.
• Flow rates reach up to 40 gallons per minute.
• Built-in motor bracket for flexible discharge angle options.

Product Highlights

The pump features automatic overload protection and operates quietly, making it suitable for residential use.

Product Information

Standard Information

• Brand: HydroQuip
• MPN: 10-WE14-120

Technical Specifications

• Horsepower: 0.25 hp
• Voltage: 120V
• Amperage: 1.6 amps
• Plumbing Connection: 1.5 inches
• Flow Rate: Up to 40 GPM
• Max Head: 10.5 ft
• Max Pressure: 50 PSI
• Max Temperature: 140°F
• Warranty: 1-year limited
• Pump Model: WE14
• Speed: 1-speed
• Suction Style: Center
• Discharge Style: Side
• Features: Automatic overload protection
