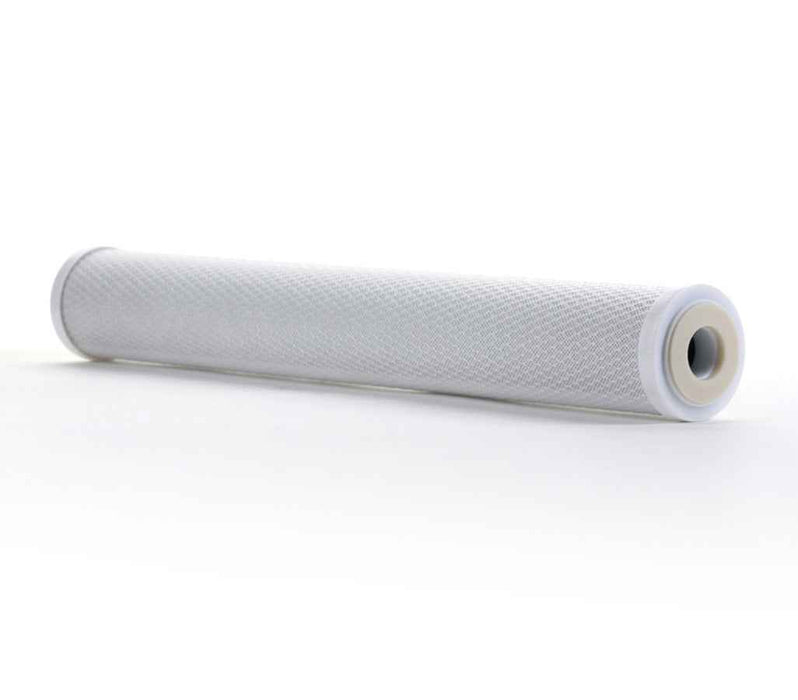

Hydronix CB-25-2005 Water Filter 2 1/2 x 20 Inches

Product Description

The Hydronix CB-25-2005 CARBON BLOCKS are manufactured with high purity Coconut Shell activated carbon, providing an exceptional cost-to-performance value. These carbon blocks offer high chlorine reduction and great dirt-holding capacity. Ideal for point-of-use (POU) and Reverse Osmosis applications in residential, food service, commercial, and industrial settings. They reduce taste, odor, chlorine, and certain VOC's from drinking water.

• Manufactured with high purity Coconut Shell activated carbon
• Exceptional cost-to-performance value
• High chlorine reduction
• Great dirt-holding capacity
• Greatly reduced carbon fines

Product Highlights

Hydronix CB-25-2005 carbon blocks offer high chlorine reduction and dirt-holding capacity for POU and reverse osmosis applications.

Product Information

Standard Information

• Brand: Hydronix
• Manufacturer Part Number: CB-25-2005
• Country of Origin: China

Technical Specifications

• Manufacturer/Brand: Hydronix
• Filter Series: CB
• Part Number: 149252005
• Type: Carbon Filters
• Material(s): Coconut Shell Activated Carbon
• Size: 2 1/2 x 20 Inches (63 x 508 mm)
• Micron Rating: 5 (Nominal)
• Pressure Loss: 2 psi @ 2.0 GPM
• Validation: NSF42
• Carbon: Coconut Shell Activated Carbon
• Netting: Polypropylene
• End Caps: DOE
• Gaskets: Neoprene
• Outer Wrap: Polypropylene
• Maximum Operating Pressure: 250 PSI (17 bar)
• Maximum Differential Pressure: 100 psid (6.8 bar)
• Collapse Pressure: 200 psid (13.8 bar)
• Temperature Rating: 40-180 °F
• Particle Retention Size: 5 microns
• Outside Diameter (OD): 2.5"
• Length: 20"
• Operating Temperature Range: 40 to 180 Degrees F
• Maximum Pressure Rating: 250 psi
• Material: Coconut shell activated carbon
• Cto Reduction Capacity: 9000 Gallons
• Filter Application: Sediment/Dirt/Rust, Chlorine/Taste/Odor
• Initial Pressure Drop: 2 psid at 2 gpm PSI Differential
• Inner/Outer Wraps: Polypropylene
• Max Temp (°F): 180°F
• Micron Rating (Nominal): 5 µm
• Min Temp (°F): 40°F
• Outer Diameter: 2.5 in
• Seal / O-Ring Material: Neoprene
• Cap Material: Polypropylene
• Cartridge Style: Drop-in
• End Cap Type: Double Open Ended (DOE)
• Filter Construction: Carbon Block
• Filter Type: Carbon Filter
• Flow Rate: 2 GPM
• Media Type: Carbon Block
• Product Certification Standard: NSF/ANSI 42
• Product Length: 20
• Filtration Method: Carbon Block
• Contaminant Removal: Yes
• Suitable For: Household/Commerical
• Number in Pack: 1
• Model: CB-25-2005
• Cartridge Life: 6 Months
• Country of Origin: China
• Rec. use: Residential
• Filter Media: Coconut Shell Carbon Block
• Certifications: NSF 42
