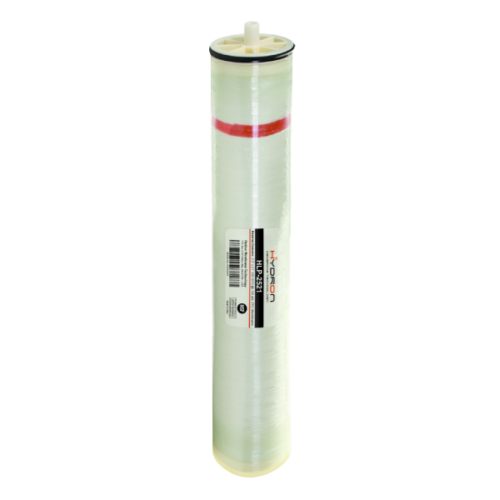

Hydron HLP-2521 Light Commercial Membrane Elements

Product Description

The Hydron HLP-2521 Light Commercial Membrane Elements are a reliable alternative for light commercial and small system membrane needs. These membranes are manufactured in an ISO-9001-2000 certified automatic rolling facility. They can be used in household water purification, laboratories, hydroponics, hospitals, and other applications needing a performance membrane.

• Reliable alternative for light commercial and small system membrane needs
• Manufactured in a State-of-the-Art, ISO-9001-2000 certified automatic rolling facility
• Delivers an attractive cost to benefit ratio

Product Highlights

The Hydron Light Commercial Membrane Elements deliver high quality and performance for various small system applications.

Product Information

Standard Information

• Brand: Hydron
• Manufacturer Part Number: HLP-2521
• Country of Origin: China

Technical Specifications

• MEMBRANE TYPE: Polyamide Compound
• Testing Pressure: 150 psi (1.03 MPa) (10.34 bar)
• Temperature of Testing Solution: 77 °F (25 °C)
• Concentration of Testing Solution (NaCl): 1500 ppm
• pH Value of Testing Solution: 7.5
• Recovery Rate of Single Membrane Element (HLP-2521, HLP-4021): 8%
• Recovery Rate of Single Membrane Element (HLP-2540): 15%
• Max. Working Pressure: 600 psi (4.14 MPa) (41.4 bar)
• Max. Feedwater Temperature: 113 °F (45 °C)
• Max. Feedwater SDI: 5
• Single Membrane Max. Pressure Drop: 15 psi (0.1 MPa) (1.03 bar)
• Residual chlorine Concentration of Feedwater: <0.1 ppm
• pH Range of Feedwater during Continuous Operation: 3~10
• pH Range of Feedwater during Chemical Cleaning: 2~12
• Max. Temperature for Continuous Operation above pH 10: 95°F (35°C)
• Part Number: HLP-2521
• Stable Rejection Rate (%): 99.0
• Active Membrane Area ft2 (m2): 14 (1.3)
• Model: HLP-2521
• Applied Pressure psi (bar): 150 (10.3)
• Average Permeated Flow gpd (m3/d): 300 (1.3)
