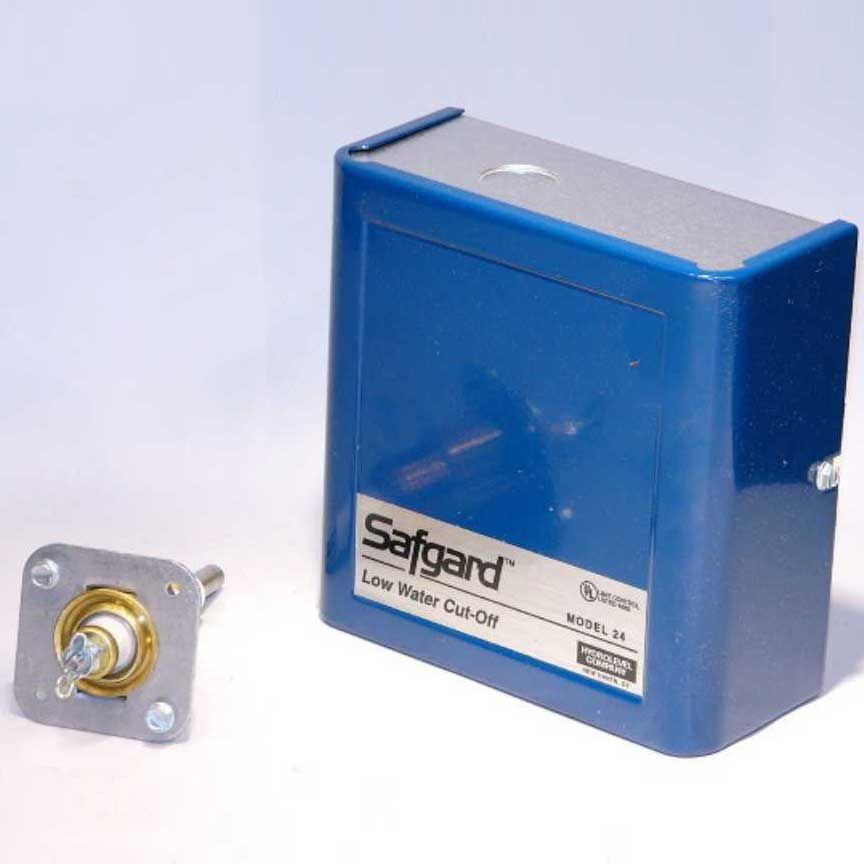

Hydrolevel 45-240 Safgard 24 Low Water Cut-Off 24V

Product Description

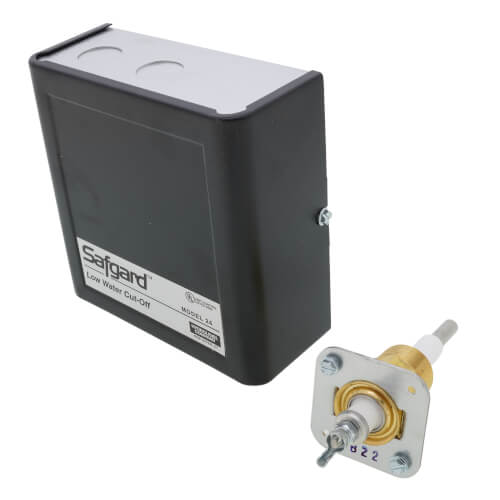

The Hydrolevel Safgard 24 is a 24-volt low water cut-off designed for hot water boilers. This device features an automatic reset and includes an EL1214 sensing probe that ensures reliable operation in case of low water conditions.

• Automatic reset feature for enhanced convenience
• Compatible with hot water boilers
• Includes a sensing probe for accurate water level detection

Product Highlights

This low water cut-off device interrupts the power supply immediately when it detects low water levels and automatically restarts the burner once normal water levels are restored. It has contacts for an optional low-water alarm.

Product Information

Standard Information

• Brand: Hydrolevel
• Model: Safgard 24

Technical Specifications

• MPN: 45-240
• Application: Hot Water Boilers
• Connection Size: 3/4 inches
• Control Connection: NPT
• Max Water Pressure: 160 psi
• Max Water Temperature: 250 degrees
• Max Ambient Temperature: 250 degrees
• Voltage: 24V
• Installation Method: Direct to Boiler Tappings
• Control Reset: Automatic
• Enclosure: NEMA 1
• Weight: 3.70 lbs
