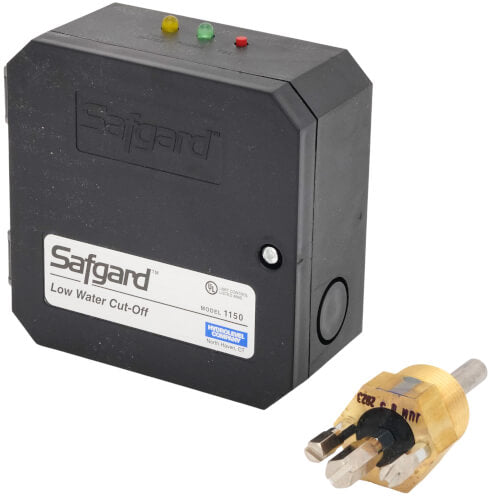

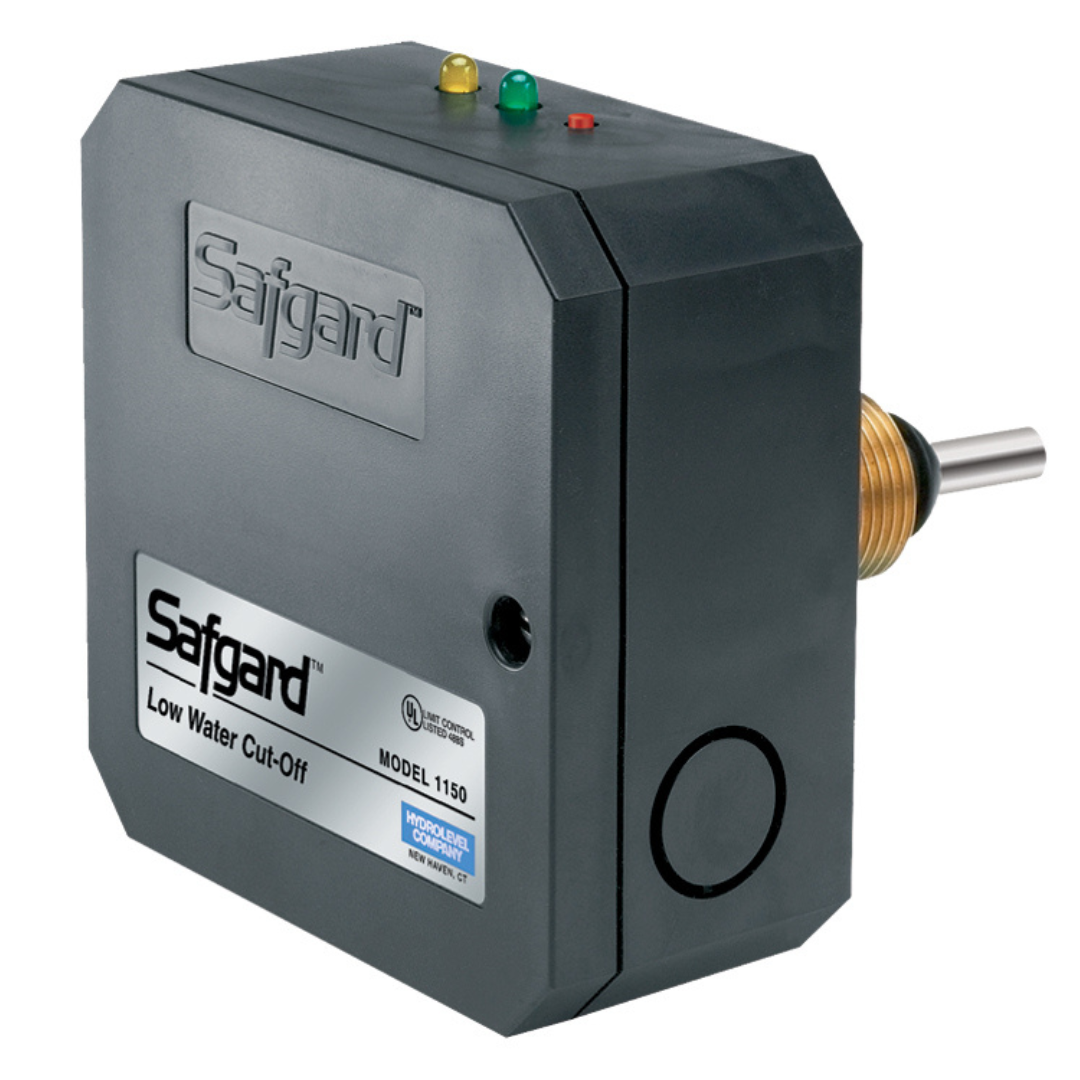

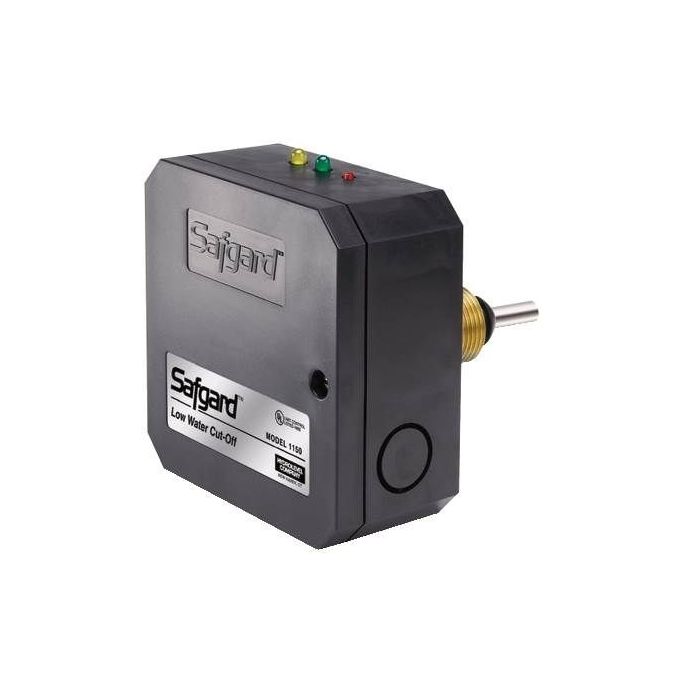

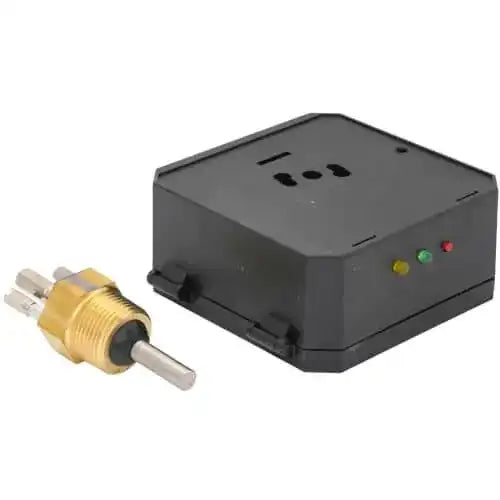

Hydrolevel 45-1150 Safgard 1150 Low Water Cutoff w/ Auto Reset & Burner Circuit Test Button -120V

Product Description

The Hydrolevel 45-1150 Safgard 1150 is essential for safely operating hot water boilers. This low water cutoff device automatically interrupts the burner circuit when water levels are low, protecting the boiler from damage. It features a built-in test button for the burner circuit and operates on standard household voltage. 100% factory tested to ensure reliability.

• Automatic reset feature
• Burner circuit test button for easy diagnostics
• Designed for hot water gas or oil-fired boilers

Product Highlights

Product Information

Standard Information

• Application: Hot Water Boilers
• Type: Low Water Cutoff

Technical Specifications

• Switch: SPST
• Max Pressure: 160 PSI
• Voltage: 120V
• Max Temperature: 250°F
• Power Consumption: 4 VA
• Manufacturer: Hydrolevel Company
• Item Type: Low Water Cutoff (valves)
• Connection: 3/4inch NPT
