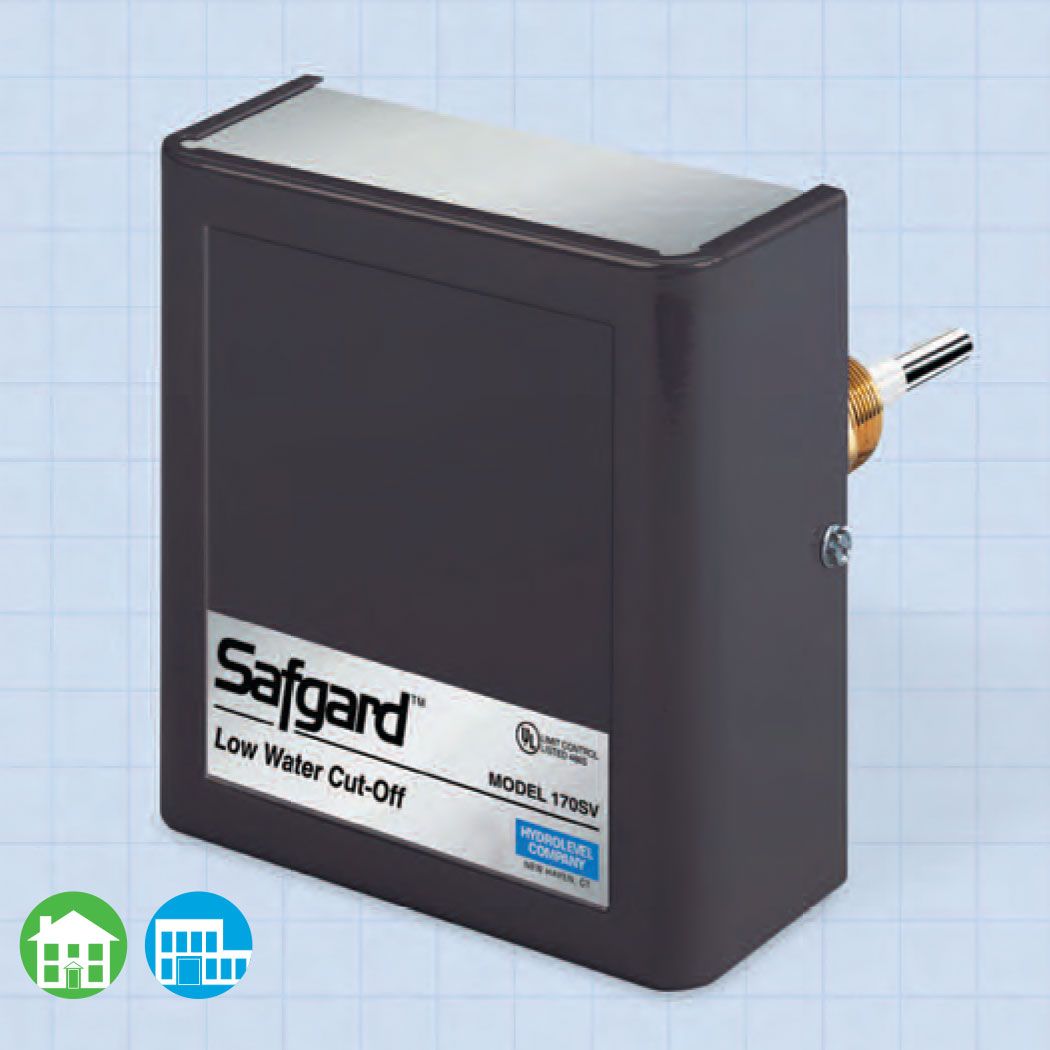

Hydrolevel 170SV Low Water Cut-Off 120V with Short Probe Automatic Reset

Product Description

The Hydrolevel 170SV is a crucial low water cut-off valve, designed to enhance the safety and efficiency of hot water boilers. By instantly interrupting power in low water conditions and automatically resetting when normal levels are restored, this device ensures optimal boiler function and safety. Equipped with a short probe, it's ideal for systems operating up to 160 psi.

• Direct boiler mounting simplifies installation
• Automatic reset feature reduces manual interventions
• NEMA 1 enclosure for durable protection

Product Highlights

This 120VAC valve has a robust SPDT switch contact and switching capacity of 5.8 FLA and 34.8 LRA, making it reliable in diverse operating conditions. The short probe design is specifically crafted for residential or commercial heating systems.

Product Information

Standard Information

• Model: Safgard
• Application: Hot Water Boilers

Technical Specifications

• Connection Size: 3/4 inch
• Control Connection: NPT
• Max Water Pressure: 160 psi
• Max Water Temperature: 250 degrees Fahrenheit
• Installation Method: Direct to Boiler Tappings
• Voltage: 120V
• Enclosure: NEMA 1
• Ohms Sensitivity: 15,000 ohm
