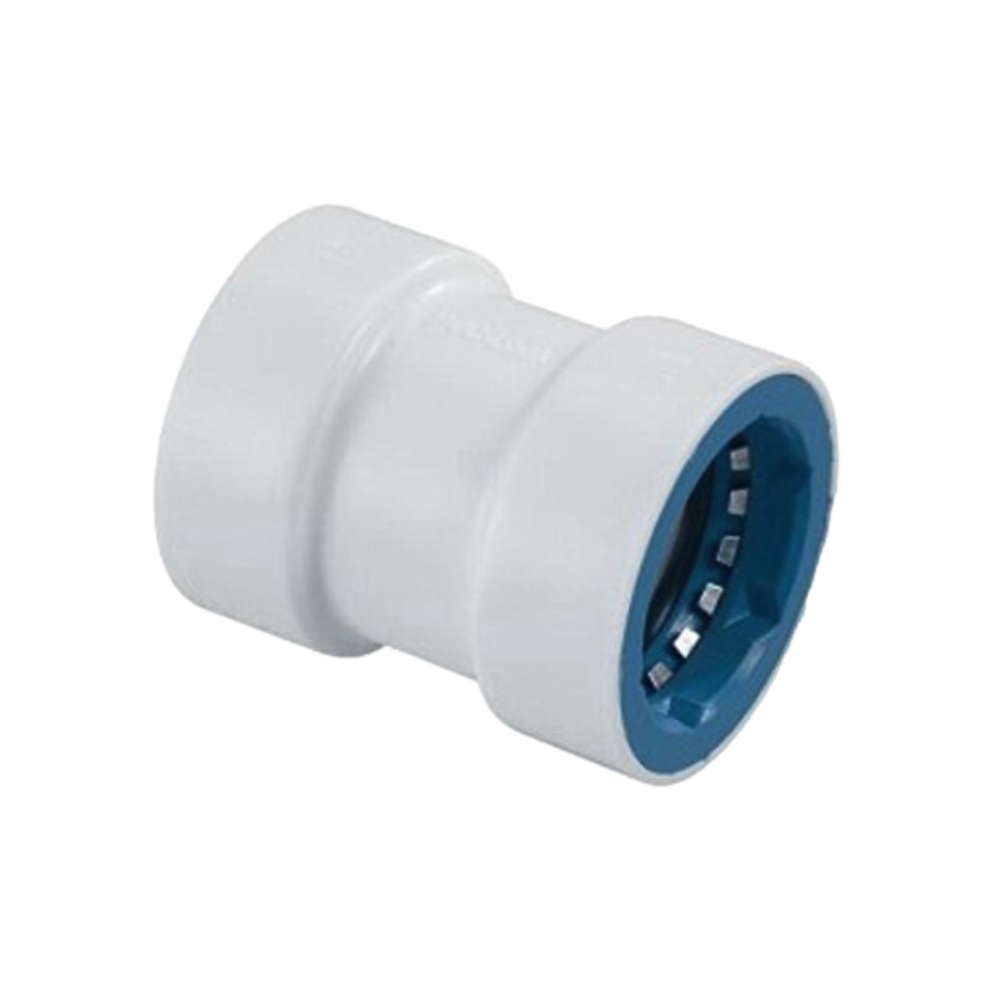

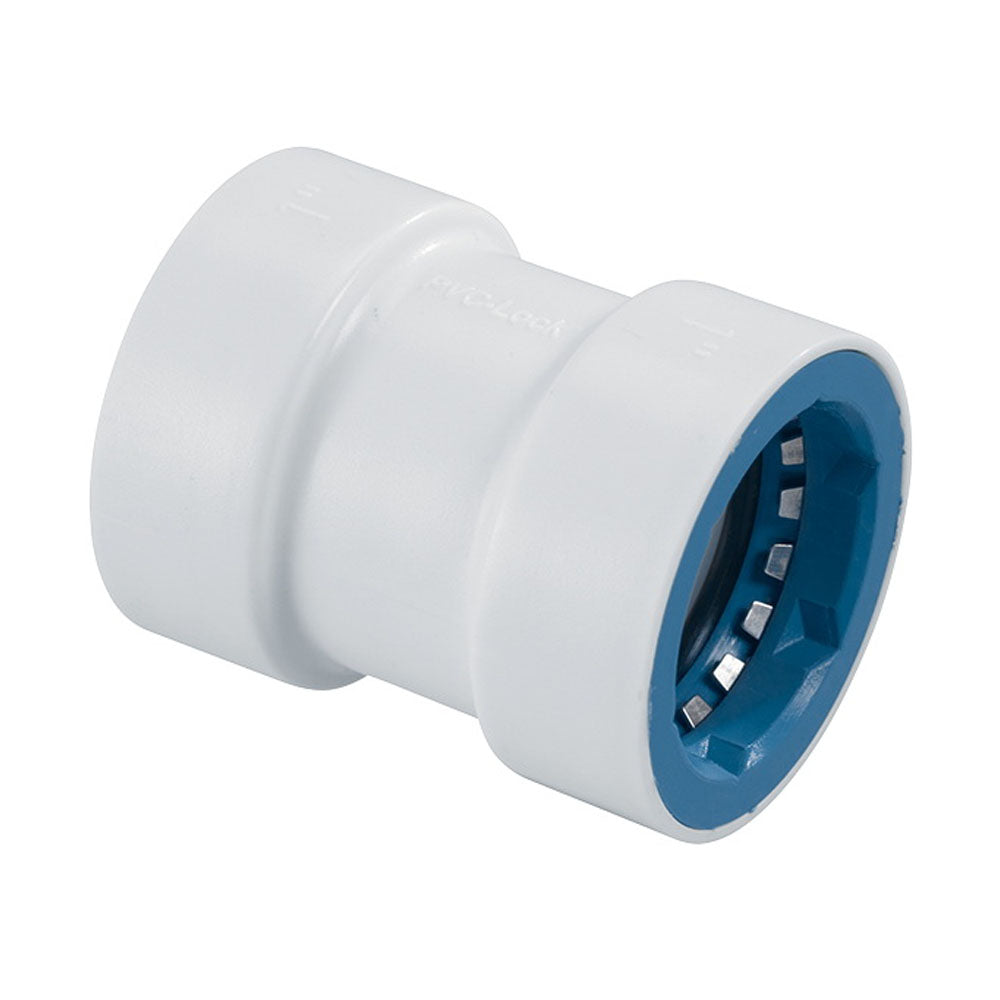

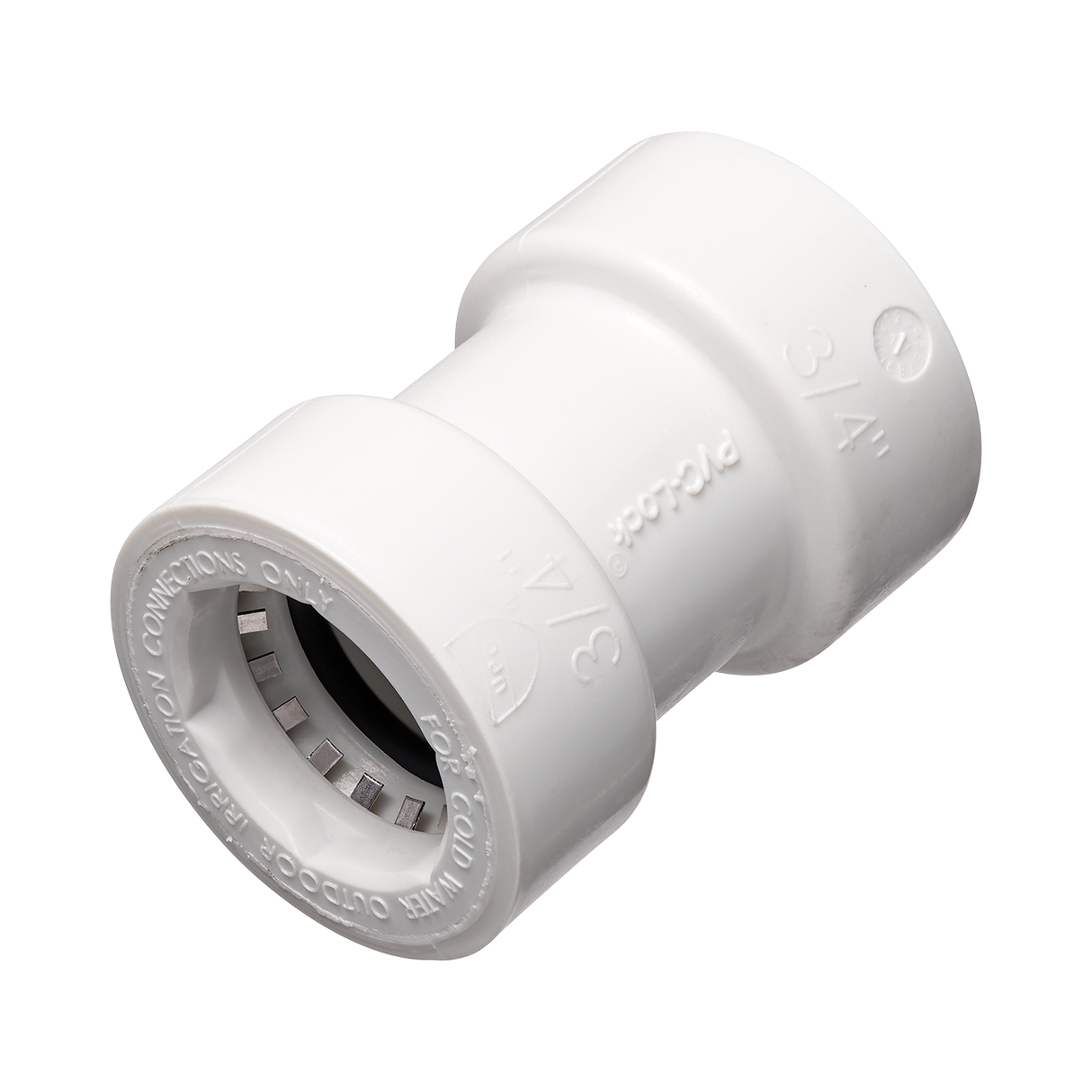

Hydro-Rain PVCL-429-007 PVC-Lock Coupling 3/4 in.

Product Description

The Hydro-Rain PVCL-429-007 3/4 in. PVC-Lock Coupling is a push-fit fitting for repairing or installing PVC piped sprinkler systems without toxic glues or primers. Each fitting contains a stainless steel retainer ring and an O-ring seal, preventing leaking at both low and abnormally high pressures. Reduces installation times by over 50%.

• Patent Pending "Push-and-Go" Design - 100% tool and chemical free approach that cuts installation time in half or more.
• PVC-Lock® Fittings are Chemical Free - Glueless, tool-free installation protects the environment and the long-term health of your crew.
• Stainless steel teeth grip pipe tight for a strong, leak-proof connection.

Product Highlights

This coupling is for use with all brands of Schedule 40 and 80, and Class PVC pipe. On-site sizing adjustments are easy using the PVC-Lock® removal tool.

Product Information

Standard Information

• Brand: HYDRO-RAIN
• Manufacturer Part Number: PVCL-429-007
• Country of Origin: United States

Technical Specifications

• Brand: Hydro-Rain
• Product Type: 3/4" PVC Lock Fittings
• Series: PVC-Lock Coupling
• Max Working Pressure: 150 PSI
• Burst Pressure: 250 PSI
• Working Pressure: 0-150 PSI
• Size: 3/4 in.
• Connection: PVC-Lock
• Material: ABS Plastic
• Operating Pressure: 80 PSI
• Operating Pressure Range: 0 to 150 PSI
• Flow Rate: 1 to 30 GPM
• Compatible Pipe Dimension: 3/4" Schedule 40 and 80, and Class PVC pipe
• Compatible Pipe Material: PVC
• Temperature Rating: 1000F
• Model: PVCL-429-007
• Pack Size: Each
• UOM: ea
