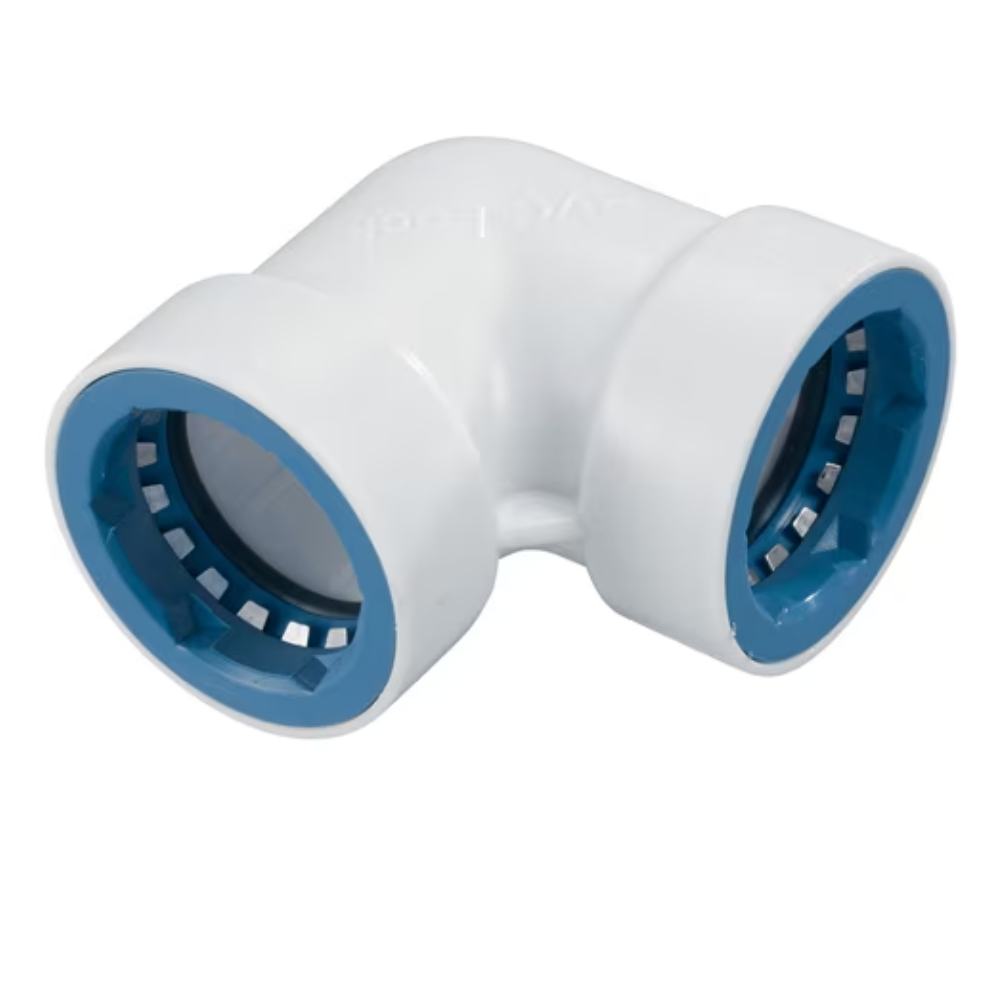

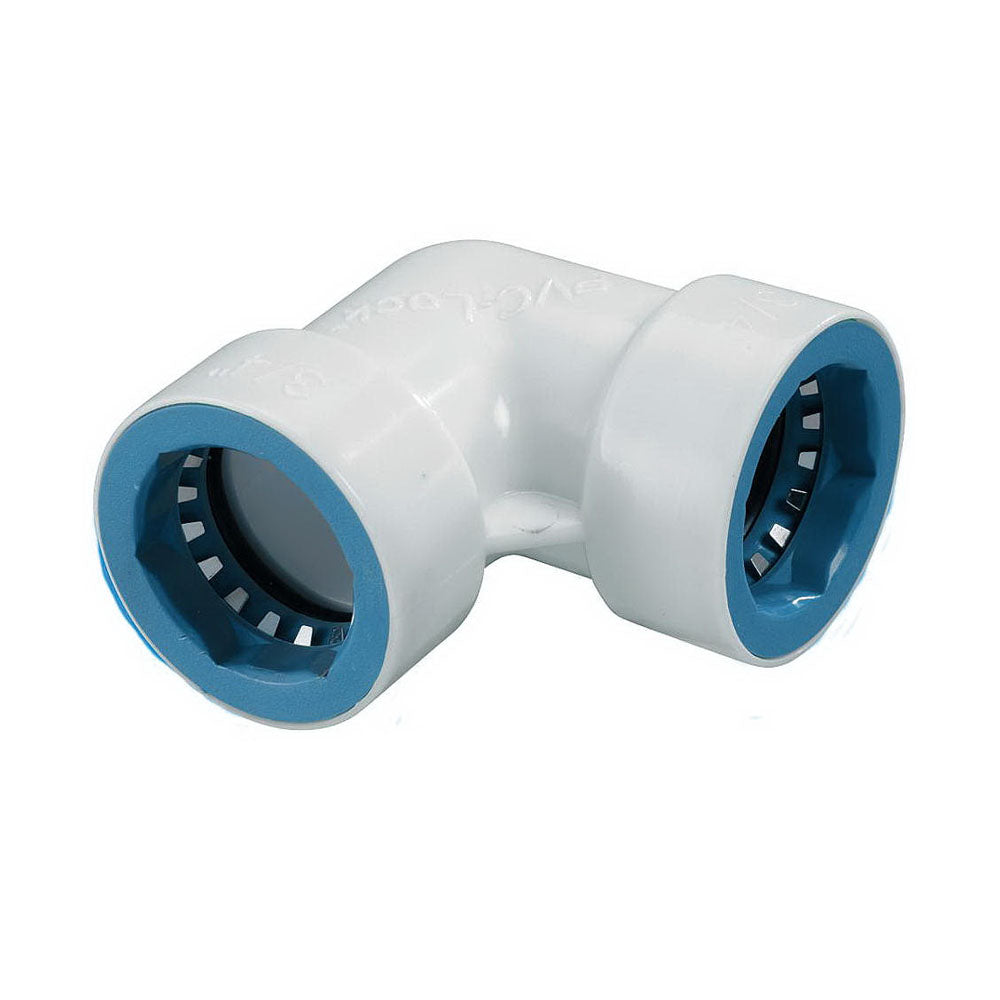

Hydro-Rain PVCL-406-007 PVC-Lock Elbow 3/4 in. PVCL

Product Description

The Hydro-Rain PVCL-406-007 PVC-Lock Elbow is a push-fit fitting for repairing or installing PVC piped sprinkler systems without toxic glues or primers. Each fitting contains a stainless steel retainer ring and an O-ring seal, preventing leaking at both low and abnormally high pressures. Using PVC-Lock fittings reduces installation times by over 50%.

• Push-and-Go design eliminates the need for tools and chemicals, cutting installation time in half.
• Stainless steel teeth grip pipe tight for a strong, leak-proof connection.
• Fittings can swivel 360 around the pipe allowing easy sprinkler head orientation and adjustment.

Product Highlights

This Hydro-Rain PVC-Lock elbow is for use with all brands of Schedule 40 and 80, and Class PVC pipe. On-site sizing adjustments are easy using the PVC-Lock removal tool.

Product Information

Standard Information

• Brand: HYDRO-RAIN
• Manufacturer Part Number: PVCL-406-007

Technical Specifications

• Brand: Hydro-Rain
• Product Type: 3/4" PVC Lock Fittings
• Series: PVC-Lock Elbow
• Max Working Pressure: 150 PSI
• Burst Pressure: 600 PSI
• Working Pressure: 0-150 PSI
• Size: 3/4 in.
• Connection: PVC-Lock
• Material: ABS Plastic
• Connection Type: Pvcl
• Item: Elbow
• Type: 90-Degree
• Connection Size: 3/4 in.
• Angle: 90 Degree
• Maximum Operating Pressure: 150 PSI
• Maximum Working Temperature: 68 F
• Connection 2 Size: 3/4 in.
• Connection 2 Type: Pvcl
• Regulated: No
• Certifications: IAPMO IGC 300-2013
