Hydro-Rain HRL-100-60W 06700 3-Station 60W LED Landscape Lighting Controller/Transformer

Product Description

The Hydro-Rain HRL-100-60W 06700 is a 3-station LED landscape lighting controller and transformer designed to provide programmable control and low-voltage power for landscape lighting systems. It combines a digital controller with a built-in electronic transformer and supports 3 independently programmable lighting stations, allowing different areas or groups of landscape lights to operate on separate schedules.

The HRL-100-60W uses Hydro-Rain Easy-Set Logic for straightforward programming of lighting schedules. Each station can be programmed independently, with up to 2 start times per station for a total of 6 independent start times. The controller also provides manual operation, test-cycle functionality, photocell control, and compatibility with a separate motion sensor for additional lighting control.

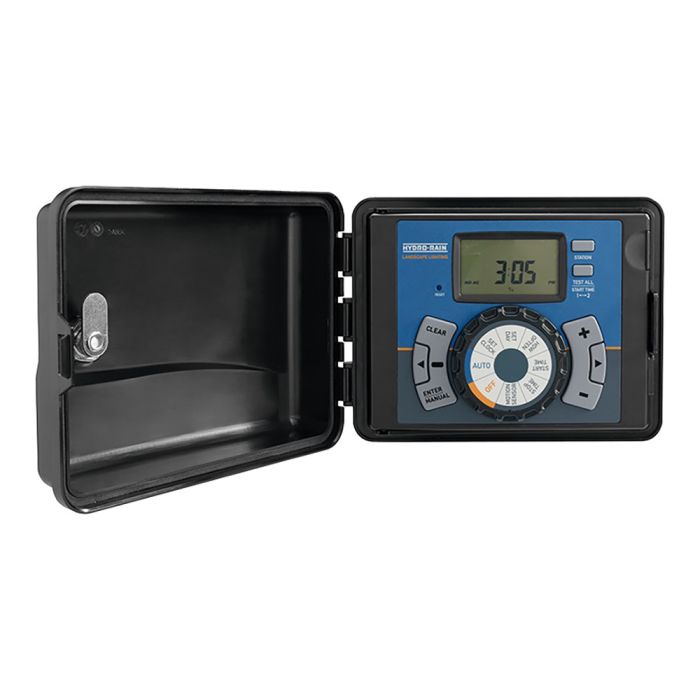

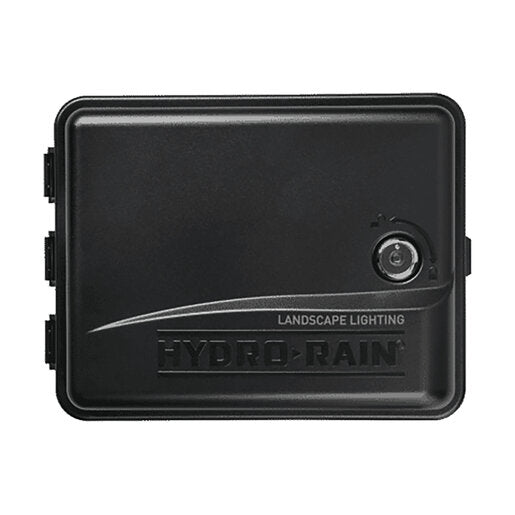

The controller features a weather-resistant housing with a swing door panel, digital display, rotary dial, screw terminals, and a built-in battery compartment. The included light sensor uses an expandable 10 ft. cable, while the controller is capable of operating with the Hydro-Rain HRL-100 motion sensor, part number 06730, which is sold separately. The unit is suitable for indoor or outdoor installation when installed according to the manufacturer's requirements.

Product Highlights

• 3 Independent Stations: Fully programmable stations allow landscape lighting to be divided by area, function, or type of fixture.

• 60W Built-In Transformer: Electronic transformer provides 12 V AC/DC low-voltage power for compatible landscape lighting.

• 54W Maximum Output: The user manual specifies a maximum combined lighting load of 54 W.

• 6 Independent Start Times: Provides 2 programmable start times for each of the 3 lighting stations.

• Easy-Set Logic: Simplifies programming of clock, day, frequency, start time, stop time, and sensor functions.

• Light Sensor Included: Includes a light sensor with an expandable 10 ft. cable for photocell-based operation.

• Motion Sensor Compatible: Supports the Hydro-Rain HRL-100 motion sensor for sensor-controlled lighting.

• Digital Display: Displays programming information and operating status.

• Manual Operation: Allows individual stations or groups of stations to be operated without changing the programmed schedule.

• Test Cycle: Provides a manual test cycle adjustable from 1 to 120 minutes.

• Indoor/Outdoor Installation: Weather-resistant housing is designed for indoor or outdoor mounting when properly installed.

• Battery Backup: Uses a CR2032 lithium battery to retain programming during AC power loss.

• 5-Year Warranty: Hydro-Rain states a 5-year warranty against defects in materials and workmanship, subject to the terms in the user manual.

Compatibility

The HRL-100-60W is designed for low-voltage LED landscape lighting systems. The 3 independently programmable stations can be used to control separate lighting areas, functions, or fixture groups. The controller is also compatible with a Hydro-Rain HRL-100 motion sensor, part number 06730, which is sold separately.

The user manual specifies that the total wattage of all connected lights must not exceed 54 W. Individual light wattages may be mixed, provided the combined load remains within the controller's maximum capacity. Long wire runs or insufficient wire gauge can reduce the number of lights that can be operated reliably.

Installation Notes

The HRL-100-60W can be mounted indoors or outdoors. The installation location should remain within an operating temperature range of 32 F to 158 F and should provide at least 9 in. of clearance to the left side of the controller for the swing door. When installed outdoors, the compartment door should remain closed to protect the controller from weather exposure. The manual notes that the controller is weather-resistant but should not be installed where continuous water exposure could cause damage.

For outdoor applications, the manual recommends installation by a qualified electrician and connection to a GFCI-protected circuit. The controller must not be connected to multiple power supplies in parallel. Follow applicable electrical codes and the manufacturer's installation instructions when connecting the power supply and landscape lighting cables.

Product Information

Standard Information

• Brand: Hydro-Rain

• Manufacturer: Hydro-Rain

• Model: HRL-100-60W

• MPN: 06700

• Product Type: LED Landscape Lighting Controller/Transformer

• Application: Low-Voltage Landscape Lighting

• Number of Stations: 3

• Mounting Type: Wall Mount

• Installation: Indoor/Outdoor

• Control System: Easy-Set Logic

Technical Specifications

Input Voltage:

100-240 VAC

Input Frequency:

50/60 Hz

Input Current:

1.5 A

Output Voltage:

12 VDC per user manual

Transformer Rating:

60 W

Maximum Lighting Load:

54 W

Power per Station:

18 W nominal

Programmable Stations:

3

Start Times:

2 per station

Total Independent Start Times:

6

Light Sensor:

Included, expandable 10 ft. cable

Motion Sensor:

Compatible, sensor sold separately

Motion Sensor Part Number:

06730

Manual Test Cycle:

1-120 minutes

Battery:

CR2032 lithium

Enclosure:

Weather-resistant

Mounting:

Wall Mount

Dimensions:

Approximately 8-3/8 W x 4-1/8 H x 9-3/8 D in.

Weight:

Approximately 3.3 lb.

Listings:

ETL Listed; tested to UL 1838; CSA C22.2 No. 250.7

Warranty:

5 Years
