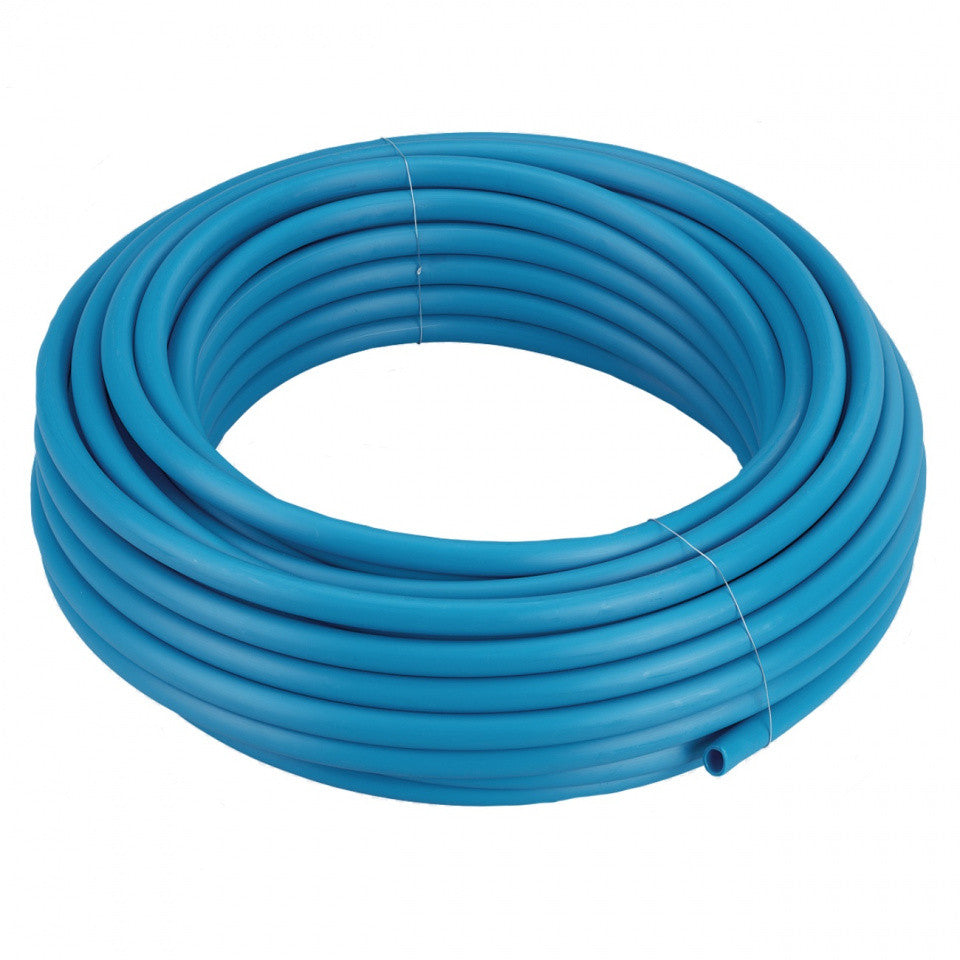

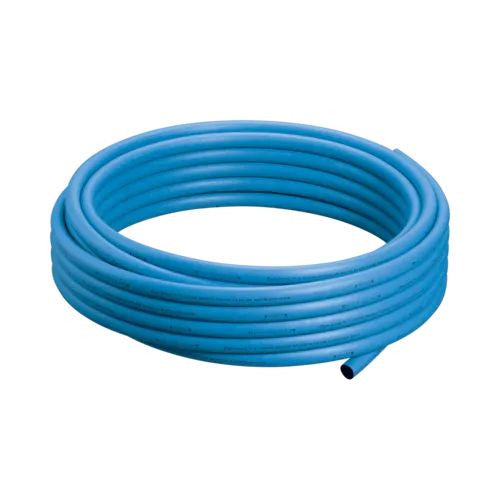

Hydro-Rain BLP-050-CL-1X Blu-Lock Swing Pipe 100 ft.

Product Description

The Hydro-Rain BLP-050-CL-1X Blu-Lock Swing Pipe connects sprinkler heads to irrigation lines. Sold in a 100-foot coil, this pipe eliminates the need for glue or clamps. It works with the Hydro-Rain Blu-Lock system, using stainless steel teeth and EPDM seals for a secure connection. Made from LDPE, it is flexible and eco-friendly.

• Connects sprinkler heads to irrigation lateral lines.
• Eliminates the mess and hassle of glue, clamps, or barbed fittings entirely.
• Works exclusively with the Hydro-Rain Blu-Lock push-to-connect fitting system.

Product Highlights

The Blu-Lock system offers a fast, clean, and eco-friendly way to install irrigation systems. Its flexible design and secure connections make it a reliable choice for any landscape.

Product Information

Standard Information

• Brand: HYDRO-RAIN
• Manufacturer Part Number: BLP-050-CL-1X

Technical Specifications

• Brand: Hydro-Rain
• Product Type: Blu-Lock Pipe
• Inner Diameter: 0.43"
• Outer Diameter: 0.59"
• Size: 1/2 inch
• Coil Length: 100 ft.
• MPN: BLP-050-CL-1X
• Length: 100 feet (coil)
• Working Pressure: 100 PSI
• Material: Low-Density Polyethylene (LDPE)
• Compatible Fittings: Hydro-Rain Blu-Lock fittings only (OD-based system)
• Application: Non-constant pressure (valve-out), cold water, outdoor irrigation only
• Fitting Connection Type: Push-to-connect (OD technology) 1/2 in. pipe fitting
• UPC: 046878379800
• Pressure Rating: 100 PSI
• Connection Size: 1/2 in.
• Minimum Operating Pressure: 10 PSI
• Maximum Operating Pressure: 100 PSI
• Maximum Working Temperature: 100 F
• Maximum Flow Rate: 16 GPM
• Minimum Flow Rate: 11 GPM
• SDR Rating: SDR 15
• Type: Polyethylene
• Item: Pipe
• Series: Blu-Lock Series
