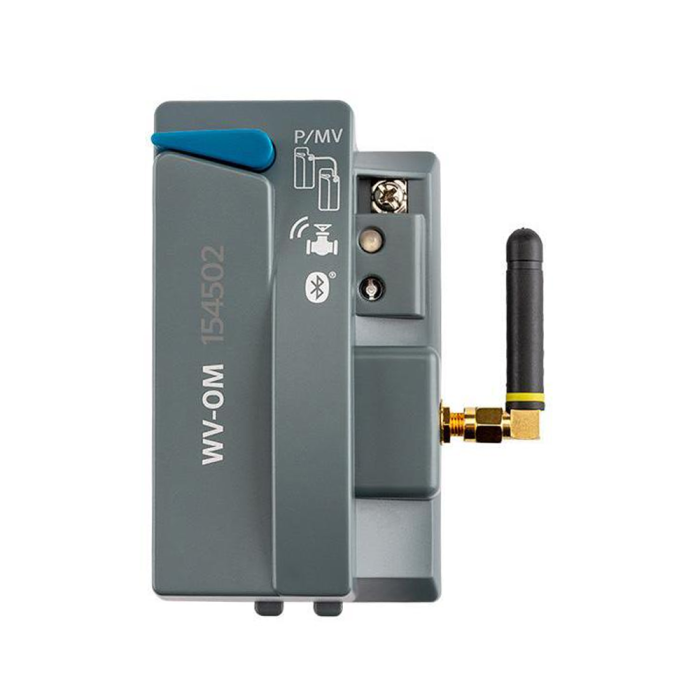

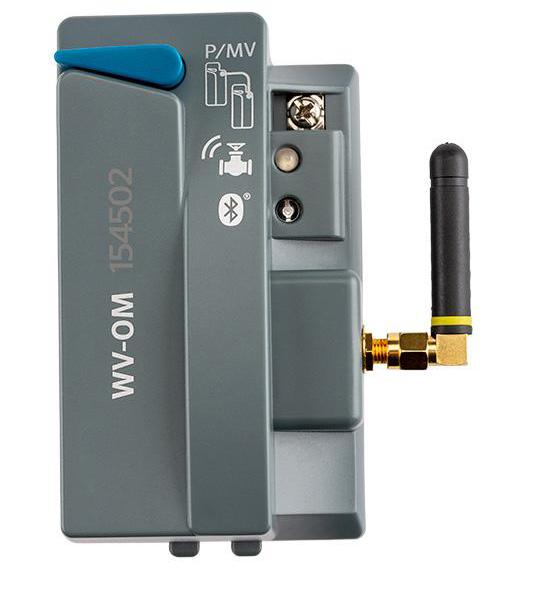

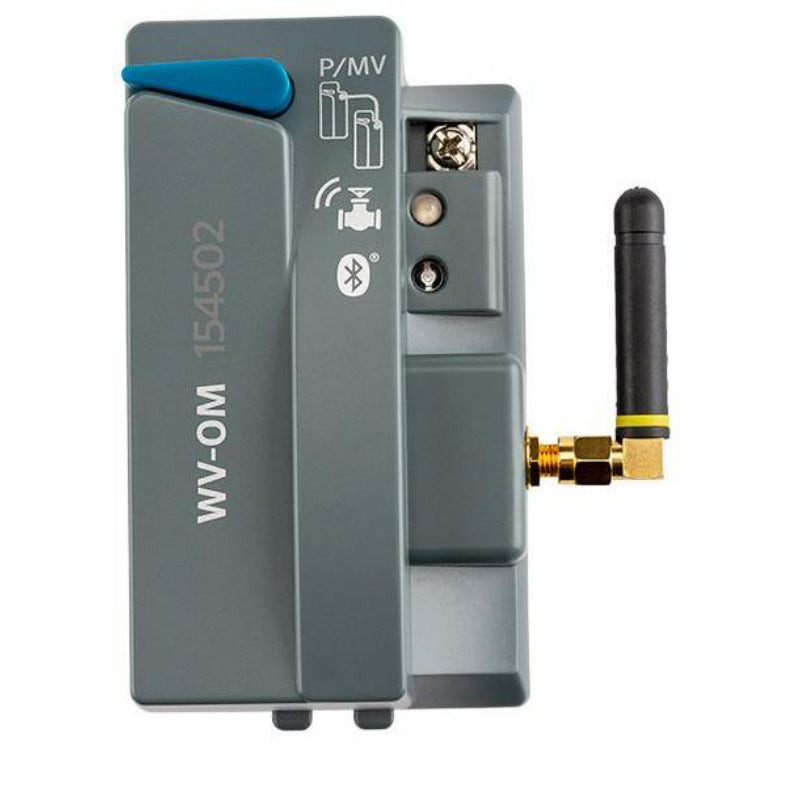

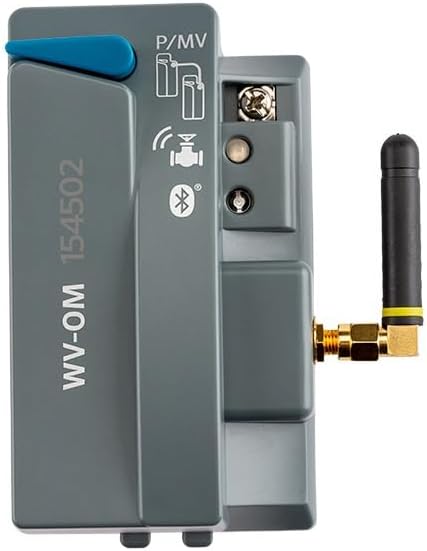

Hunter WVOM Wireless Valve Output Module

Product Description

The HUNTER WVOM Wireless Valve Output Module enables wireless valve control for ICC2 and HCC Controllers. The Wireless Valve Link eliminates the need for copper wire and excavation. Wireless signals are immune to wire degradation and lightning damage. Add valves up to 2,000' without new valve wiring.

• Works with Hunter ICC2 and HCC Controllers, compatible with Centralus and Hydrawise Irrigation Management Platforms. Installs like any other expansion module.
• Add up to 54 valves plus P/MV up to 2,000' line of sight. No cutting into hardscape, plowing, boring, or lightning surge back to the controller
• Designed to operate with Hunter WVL (Wireless Valve Link) devices only. Combine with conventional ICM or EZDS Modules as needed (54 stations plus P/MV maximum per controller)

Product Highlights

The WVOM module simplifies installation for landscapes of all sizes by eliminating the need to run costly field wires or cut into hardscape.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: WVOM
• Country of Origin: China

Technical Specifications

• Product Model: Wireless Valve Link
• SKU: WVOM
• Brand: Hunter
• Material: Plastic
• Item Weight: 16 ounces
• Product Type: Controller Modules
• Low-profile, waterproof valve box lid mount: for field durability
• Requires: 1½” diameter hole in valve box lid (hole saw supplied with WVOM)
• Two-way communications: confirm field performance
• 900 MHz LoRa radio: (North America only)
• 1-, 2-, and 4-station configurations: to optimize field installations
• Operates: Hunter DC-Latching Solenoids
• Maximum distance from WVL to solenoid: 100′ with 18 AWG wire
• One or two: 9 VDC batteries per WVL
• Replace batteries: once per season or year
• Solar recharging option: with SP-WVL
• Built-in site survey and manual test functions: None
• Easy, free setup: with Bluetooth app (iOS 9.0 or above, Android 5.0 or above)
• Approvals: WVL in-box control links: IP68 (submersible) RPT Wireless Solar Repeater: IP55 (outdoor) UL, cUL, FCC, CE, UKCA, RCM, ISED
• Warranty period: 2 years
• Weight: 2 lbs
• Model: WVOM
