Hunter PCDM EZ Decoder Output Module for HPC and Pro-C Controllers

Product Description

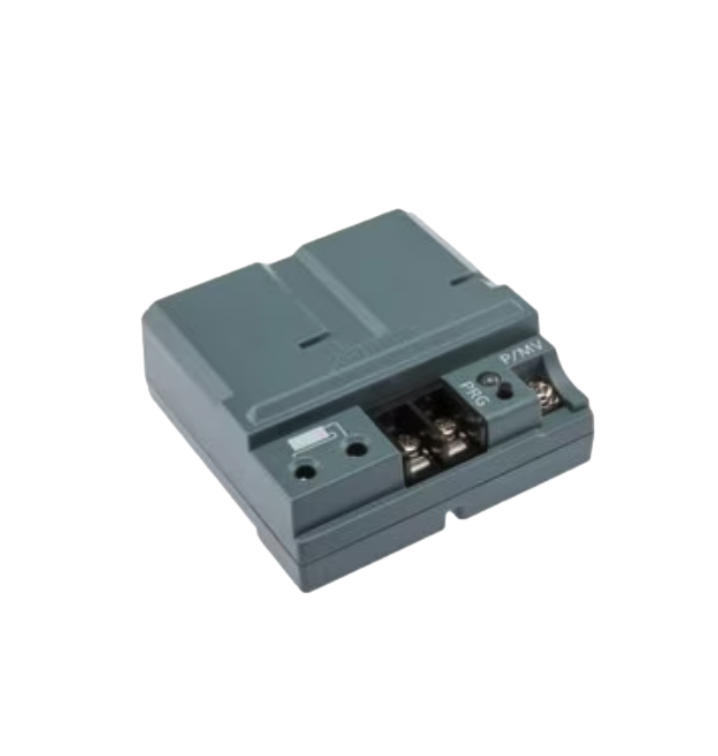

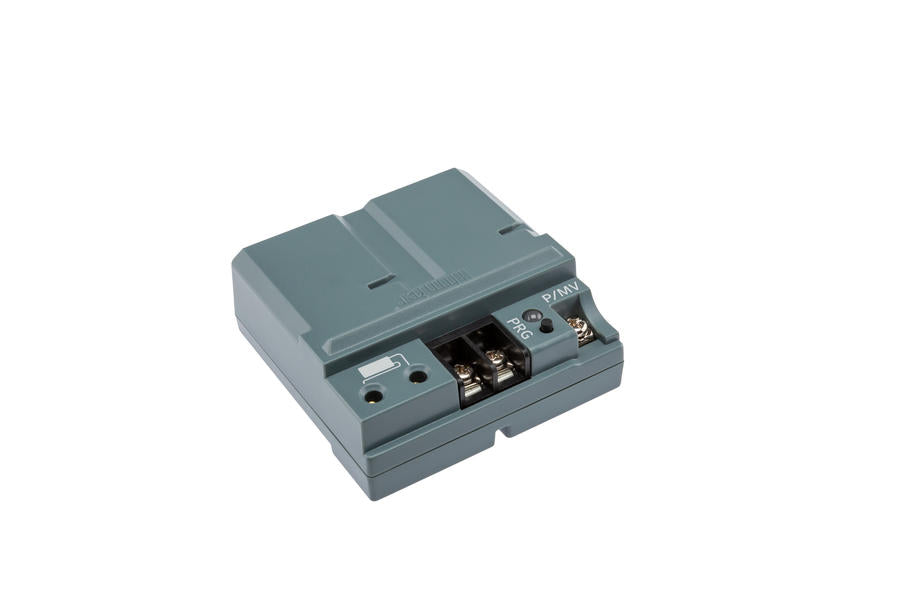

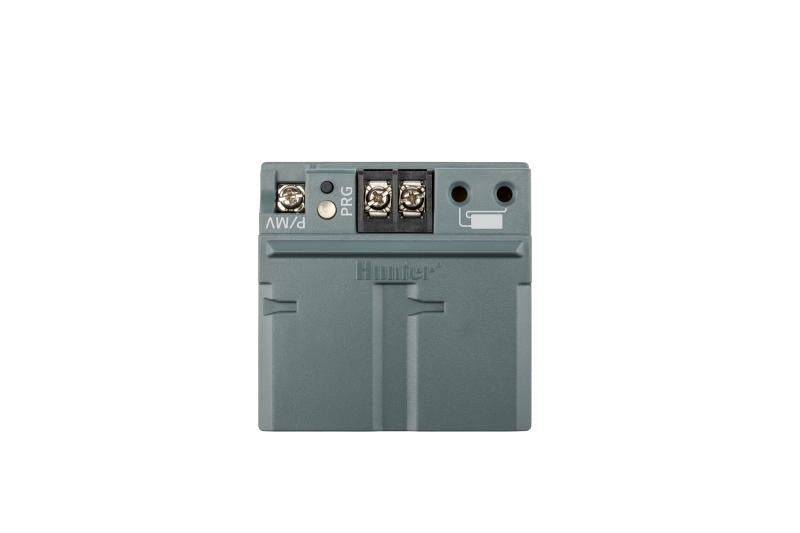

The HUNTER PCDM is an EZ Decoder Output Module designed for HPC and Pro-C Controllers. It converts a Pro-C or HPC controller into a hybrid conventional/two-wire irrigation system. Designed for use with Hunter EZ-1 decoders, the PC-DM lets you expand station capacity while keeping conventional stations where needed.

• Adds single-station EZ-1 decoder control to compatible Pro-C and HPC controllers.
• Enables up to 32 total stations on a single two-wire path when used with a Pro-C.
• Coexists with conventional station modules so you can mix hard-wired and decoder stations on the same controller.

Product Highlights

The PC-DM module is an economical way to add two-wire decoder flexibility to residential and light commercial projects. Use it to reduce trenching and wire runs, simplify valve wiring, and expand existing Pro-C systems.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: PCDM

Technical Specifications

• Field Valve Connection: Two-wire
• Flow: Without Flow
• Network Connection Type: None
• Supports EZ 11 decoders: Adds single station EZ 111 decoder control to compatible Pro C and HPC controllers for simple two wire installations.
• Expanded station capacity: Enables up to 32 total stations on a single two wire path when used with a Pro C; if only two wire decoders are used, program stations 5 32 (28 decoder stations available).
• Hybrid operation: Coexists with conventional station modules so you can mix hard wired and decoder stations on the same controller.

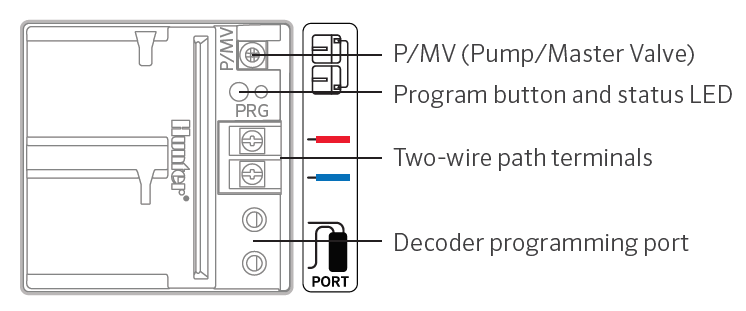

• Simple programming: Program decoders quickly using the PC DM PRG button and the EZ 111 LED confirmation no serial numbers required.

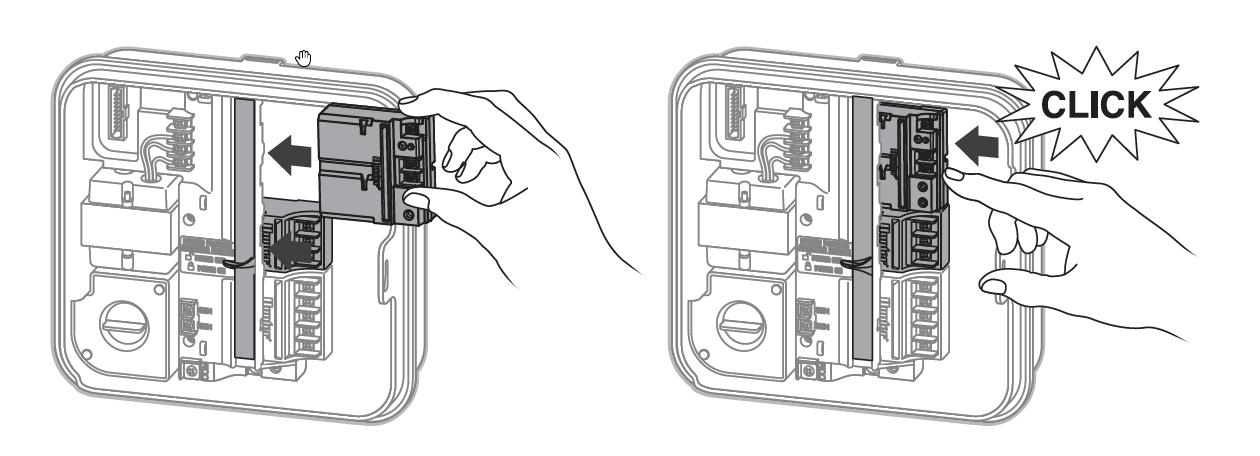

• Installation notes: The PC DM installs only in the last two station output slots and will not fit other slots; verify Pro C front panel date code (Feb 2020 or newer) for compatibility.
• Color: Gray
• Type: Residential
• Item: Controller
• Regulated: No
• Brand Name: Hunter
