Product Description

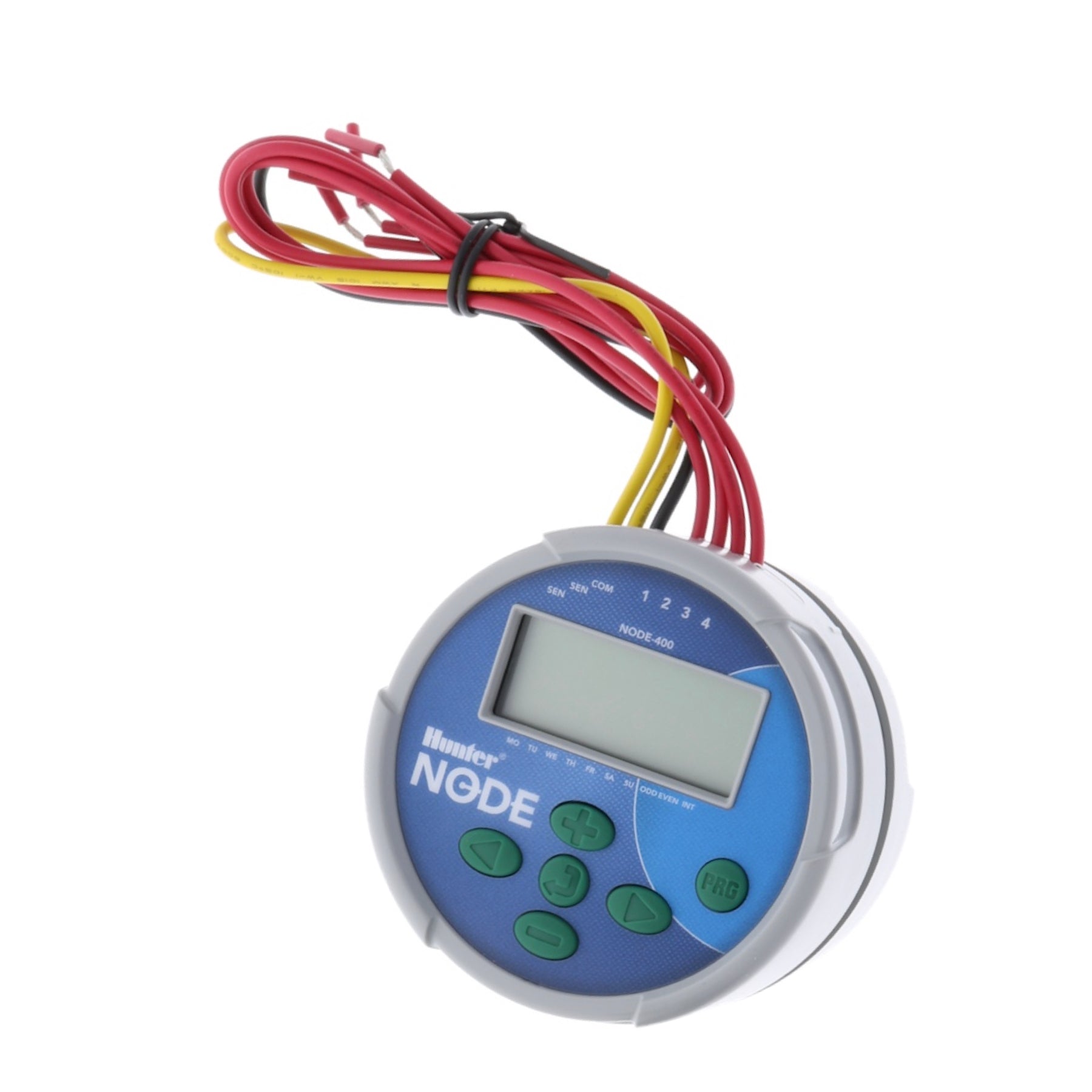

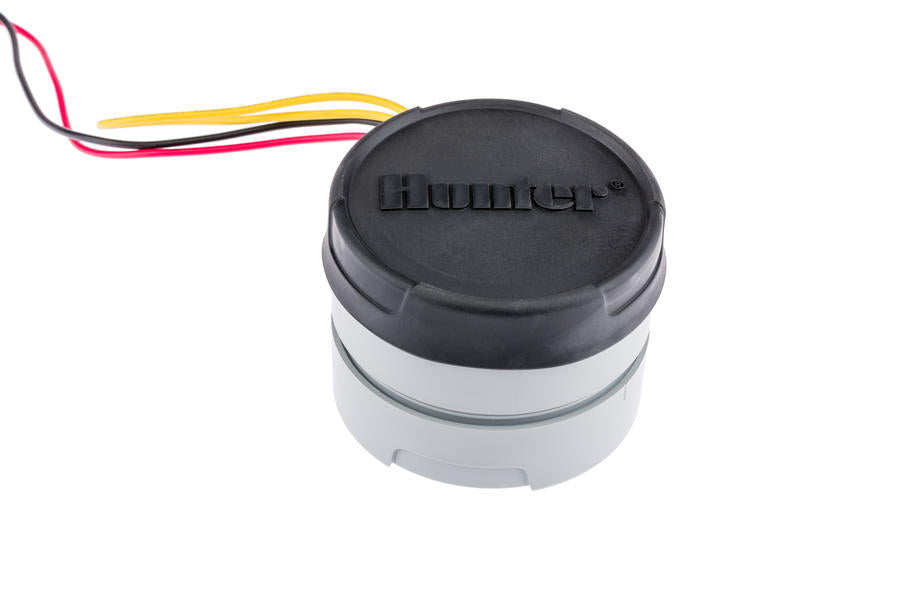

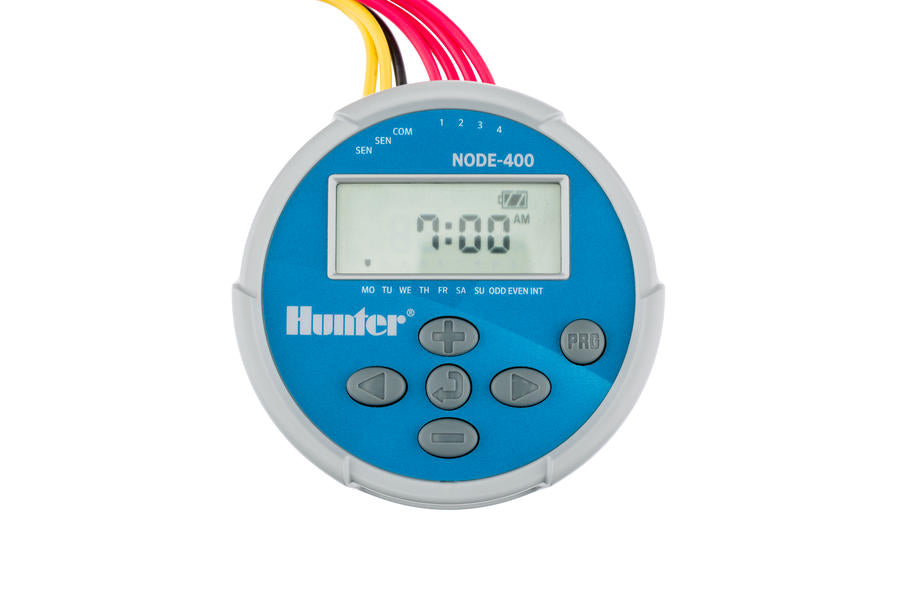

The HUNTER NODE400 is a 4-station battery-operated controller designed for isolated sites and power-restricted areas. It mounts to a valve's solenoid quickly and easily without additional wires. Its waterproof exterior ensures it can handle harsh environments. It features an easy-to-program LCD screen and standard Hunter controller programming.
- Battery powered controller for automatic irrigation without AC power
- Waterproof enclosure seal protects against water ingress
- 3 flexible programs with 4 start times each and up to 6-hour run times
Product Highlights
Offers flexible programming and rugged construction for reliable off-grid irrigation control.
Product Information
Standard Information
-
Brand: HUNTER
-
Manufacturer Part Number: NODE400
Technical Specifications
-
Number of Stations: 4
-
Central Control: None (Standalone)
-
Controller Power: Battery
-
Field Valve Connection: Conventional wired
-
Flow: Without Flow
-
Network Connection Type: None
-
Sensor Compatibility: Rain, Freeze, Wind, Soil Moisture
-
Maximum Wire Run 18 AWG: 100 ft
-
Brand: Hunter
-
Voltage: 9 Volts
-
Material: Plastic
-
Display Type: LCD
-
Type: fixed
-
Max station run time: 6 hrs
-
Manual cycle: Manual cycle
-
Easy retrieve memory: Easy retrieve memory
-
Pump/master valve: 2, 4 or 6-station models only
-
Wired sensor inputs: 1
-
Operating temperature: 0
F to 140
F
-
Power source: 9-volt battery (up to two) or Solar Panel with 800 mAh charging cell
-
Electrical Specifications: Operates DC latching solenoids (only) 9-11 VDC - 458200
-
Approvals: IP68, CE, FCC, C-tick
-
Sensor Inputs: 1
-
Wire Size: 18 AWG @ 100' max length
-
Solenoid: DC Latching, 9-11V
