Product Description

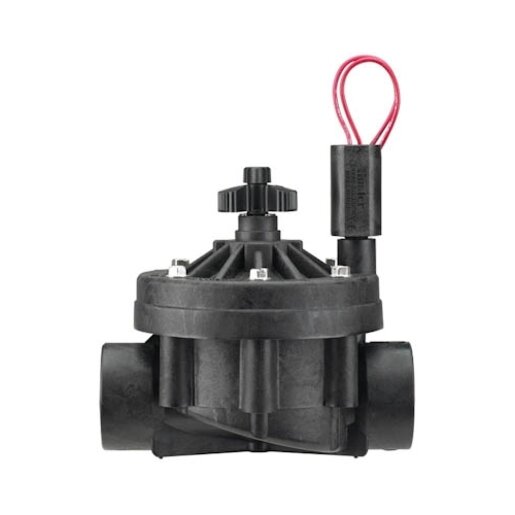

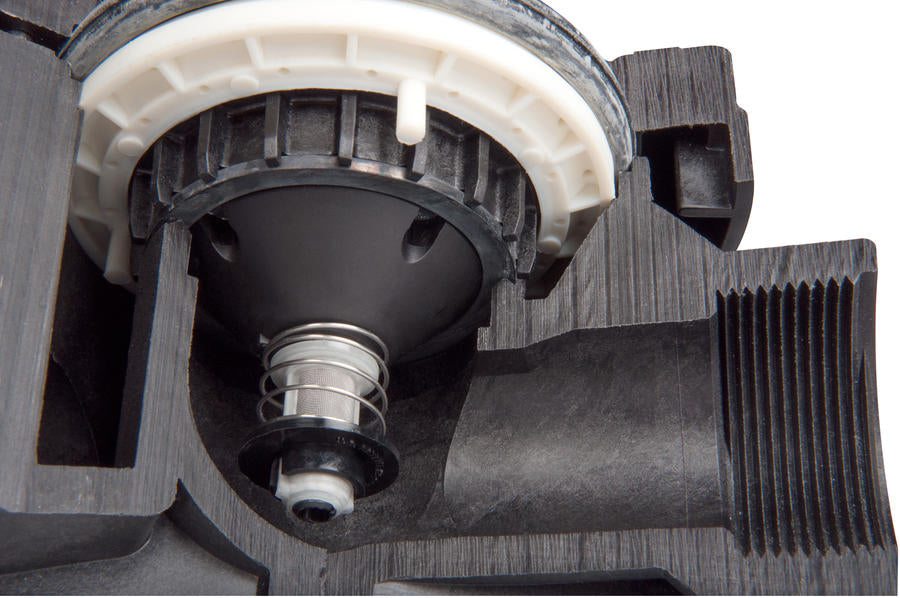

The HUNTER ICV151GFS ICV Valve is a 1-1/2" glass-filled nylon globe valve with flow control and a factory-installed Filter Sentry Mechanism. The commercial-grade ICV is designed for demanding systems, featuring a fabric-reinforced EPDM diaphragm and seat. It operates up to 220 PSI and is easy to maintain with common tools. Ideal for dirty water conditions.
- External and internal manual bleed allows quick and easy "at the valve activation

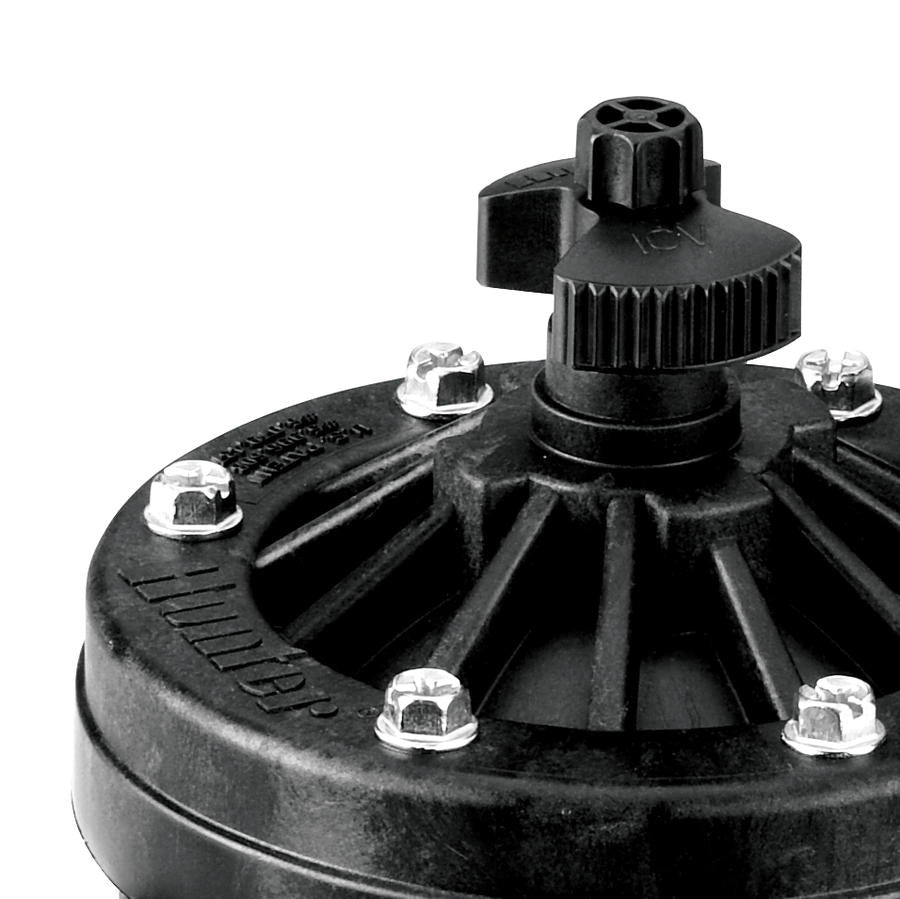

- Flow Control - Maximize efficiency and prolong the life of a system by fine tuning flow and pressure for each zone.
- Filter Sentry for dirty water applications.
Product Highlights
Durable and reliable valve for commercial irrigation systems, featuring flow control and filter sentry for optimal performance in challenging water conditions.
Product Information
Standard Information
-
Brand: HUNTER
-
Manufacturer Part Number: ICV151GFS
Technical Specifications
-
Inlet Size: 1-1/2"
-
UPC-A: 0611698111888
-
Qty. / Bag: 8
-
Ocean Pallet: 320
-
Land Pallet: 256
-
Master Carton: 8
-
Material: Plastic
-
Application: Commercial/municipal
-
Size: 1.5'' Female Pipe Thread
-
Temperature rating: 150° F
-
Flow rate: 20 to 135 GPM
-
Recommended pressure range: 20 to 220 PSI
-
Solenoid: 24 VAC solenoid
-
Inrush: 370 mA inrush, 210 mA holding, 50 HZ
-
Warranty period: 5 years
-
Connection Type: Fipt
-
Body Material: Glass-Filled Nylon & Plastic
-
Type: Globe
-
Series: ICV Series
-
Solenoid Type: DC Latching
-
Operating Type: Electric
-
Flow Control: Yes
-
InletSize: 1-1/2 in.
-
Height: 7-1/8 in.
-
Width: 5-1/2 in.
-
Maximum Flow Rate: 135 GPM
-
Voltage Rating: 24V
-
Outlet Size: 1-1/2 in.
-
Minimum Flow Rate: 20 GPM
-
Outlet Connection: Fpt
-
Inlet Connection: Fpt
-
Pressure Rating: 150 to 1500 kPa
-
Item: Valve
-
Dimensions: 5-1/2 in. x 7-1/8 in. x 6-7/8 in.
-
Minimum Operating Pressure: 20 PSI
-
Maximum Operating Pressure: 220 Pound per Square Inch
-
Maximum Working Temperature: 150 F
-
Connection 2 Size: 1-1/2 in.
-
Connection 2 Type: Fipt
-
Regulated: No
-
Brand Name: Hunter
-
Exterior Finish: Brass
-
Item Dimensions L x W x H: 10 x 7 x 4 inches
-
Inlet Connection Size: 1.5 Inches
-
Inlet Connection Type: Threaded
-
Outlet Connection Type: NPT
-
Number of Ports: 2
-
Outlet Connection Size: 1.5 Inches
-
Thread Size: 1.5 inches
-
Thread Type: NPT
-
Valve Type: Globe Valve
-
Item Weight: 1.2 Pounds
-
Case Quantity: 8
-
Connection Size: 1-1/2 in.
-
Electrical Rating: 24 VAC, 350 mA Inrush, 190 mA Holding at 60 Hz, 370 mA Inrush, 210 mA Holding at 50 Hz
-
Operator Type: Solenoid
-
Seat Material: EPDM
-
MFG Number: ICV151GFS
-
UPC: 611698111888
-
Flow Rate: 0.03 to 34 cu-m/hr
-
Seal Material: EPDM
-
Series/Model: ICV
