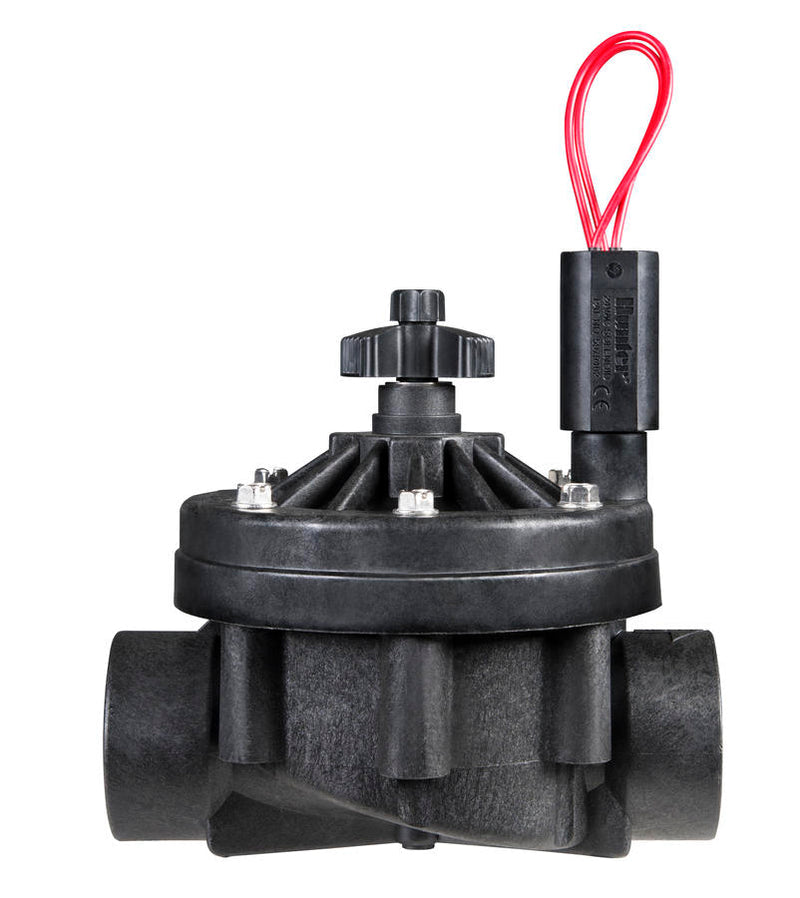

Hunter ICV151G ICV Series Globe Valve 1-1/2-Inch

Product Description

The HUNTER ICV151G is an ICV Series globe valve with flow control. Built for demanding systems, it features a fabric reinforced EPDM diaphragm and seat. It consistently operates at up to 220 PSI and is easy to maintain. A Filter Sentry option is available for dirty water applications.

• Easy to maintain
• Filter Sentry option available for applications that involve dirty water
• Reliable in high pressure situations

Product Highlights

The HUNTER ICV series valve is rugged, durable, and reliable. It can withstand a pressure rating of up to 200 psi.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: ICV151G

Technical Specifications

• Inlet Size: 1-1/2"
• Material: Plastic
• Brand: Hunter
• Inlet Connection Size: 1.5 Inches
• Inlet Connection Type: Threaded
• Outlet Connection Type: NPT
• Number of Ports: 2
• Outlet Connection Size: 1.5 Inches
• Thread Size: 1.5 inches
• Thread Type: Threaded
• Valve Type: In-Line
• Unit Count: 1.0 Count
• Application: Residential and Commercial
• Size: 1.5'' Female Pipe Thread
• Temperature rating: 150 F
• Flow rate: 20 to 135 GPM
• Recommended pressure range: 20 to 220 PSI
• 24 VAC solenoid: 350 mA inrush, 190 mA holding, 60 HZ 370 mA inrush, 210 mA holding, 50 HZ
• Product Type: Inline Valves
• Body Material: Glass-Filled Nylon
• Flow Control: Flow Control
• Connection: FPT
• Solenoid: Yes
• Operating Temperature: 150 F
• Pressure Rating Range: 20 - 220 PSI
• Connection Type: Fipt
• Connection Size: 1-1/2 in.
• Series: ICV Series
• Solenoid Type: DC Latching
• Operating Type: Electric
• InletSize: 1-1/2 in.
• Height: 7-1/8 in.
• Width: 5-1/2 in.
• Maximum Flow Rate: 135 GPM
• Voltage Rating: 24V
• Outlet Size: 1-1/2 in.
• Minimum Flow Rate: 20 GPM
• Outlet Connection: Fpt
• Depth: 5-1/2 in.
• Inlet Connection: Fpt
• Pressure Rating: 20 PSI - 220 PSI
• Item: Valve
• Minimum Operating Pressure: 20 PSI
• Maximum Operating Pressure: 220 PSI
• Maximum Working Temperature: 150 F
• Connection 2 Size: 1-1/2 in.
• Connection 2 Type: Fipt
• Regulated: No
• Brand Name: Hunter
