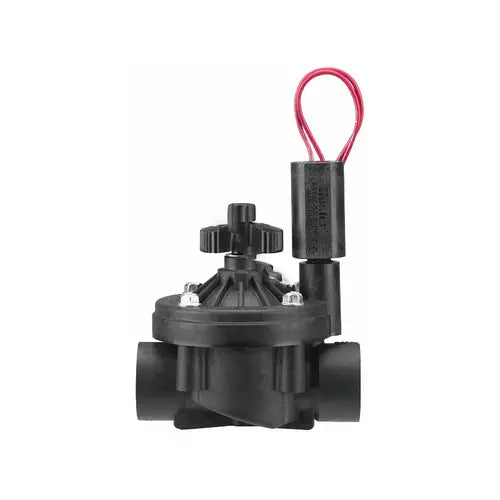

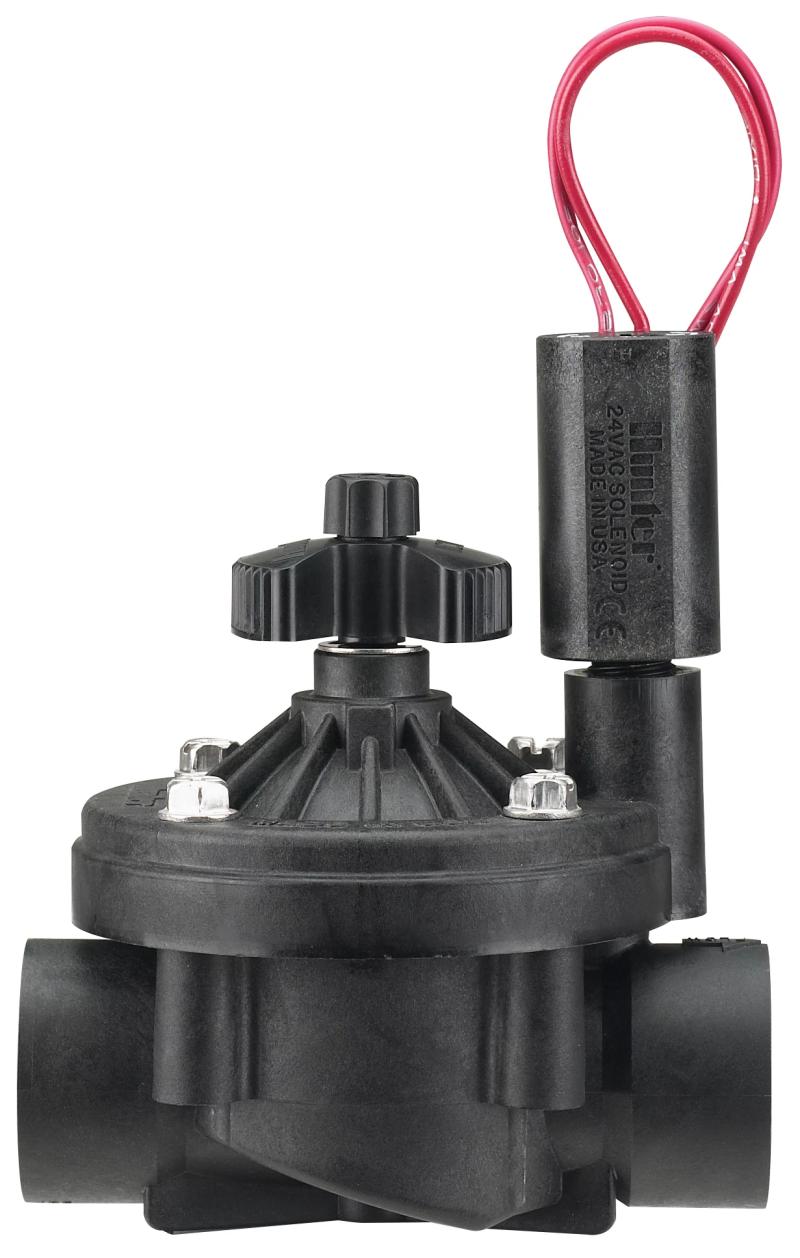

Hunter ICV101GFS ICV Series Globe Valve 1-inch

Product Description

The HUNTER ICV101GFS is an ICV Series globe valve with flow control and a factory-installed Filter Sentry Mechanism. The commercial-grade ICV works seamlessly with demanding systems and boasts reliable features like a fabric-reinforced EPDM diaphragm and seat. It consistently operates at up to 220 PSI.

• ICV Valve
• 1" (25 mm) glass-filled nylon globe valve
• Flow control

Product Highlights

The ICV valve is easy to maintain and has a Filter Sentry option available for applications that involve dirty water.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: ICV101GFS

Technical Specifications

• Brand: Hunter
• Product Line: Valves
• Product Model: ICV
• SKU: ICV101GFS
• Inlet Size: 1"
• Material: Plastic
• Item dimensions L x W x H: 5 x 7 x 10 inches
• Exterior Finish: Plastic
• Inlet Connection Size: 1 Inches
• Inlet Connection Type: Female Iron Pipe
• Outlet Connection Type: NPT
• Number of Ports: 2
• Manufacturer: Standard Plumbing Supply-LG
• Thread Size: 1 Inch
• Thread Type: NPT
• Valve Type: Globe Valve
• Size: Small
• Item Weight: 3 lb
• Application: Commercial/municipal
• Temperature rating: 150° F
• Flow rate: 0.1 to 40 GPM
• Recommended pressure range: 20 to 220 PSI
• 24 VAC solenoid: 350 mA inrush, 190 mA holding, 60 HZ 370 mA inrush, 210 mA holding, 50 HZ
• Warranty period: 5 years
• Connection Type: Fipt
• Connection Size: 1 in.
• Body Material: Glass-Filled Nylon & Plastic
• Type: Globe
• Series: ICV Series
• Solenoid Type: DC Latching
• Operating Type: Electric
• Flow Control: Yes
• InletSize: 1 in.
• Height: 5-1/2 in.
• Width: 4 in.
• Maximum Flow Rate: 40 GPM
• Voltage Rating: 24V
• Outlet Size: 1 in.
• Minimum Flow Rate: 0.1 GPM
• Outlet Connection: Fpt
• Inlet Connection: Fpt
• Pressure Rating: 20 PSI - 220 PSI
• Item: Valve
• Dimensions: 5-1/2 in. x 4-3/4 in. x 4 in.
• Minimum Operating Pressure: 20 PSI
• Maximum Operating Pressure: 220 PSI
• Maximum Working Temperature: 150 F
• Connection 2 Size: 1 in.
• Connection 2 Type: Fipt
• Regulated: No
• Department: IRRIGATION
• MPN: ICV101GFS
• Number of Items in Set: 1
• Suitable For: Lawn Irrigation
• Maximum Working Pressure: 220 psi
• Tubing Diameter: 1 in
• Threaded Connection: Female 1 in
• Features: Adjustable Flow Rate
• Installation Area: Garden (above ground & underground)
• Item Height: 5.5 in
