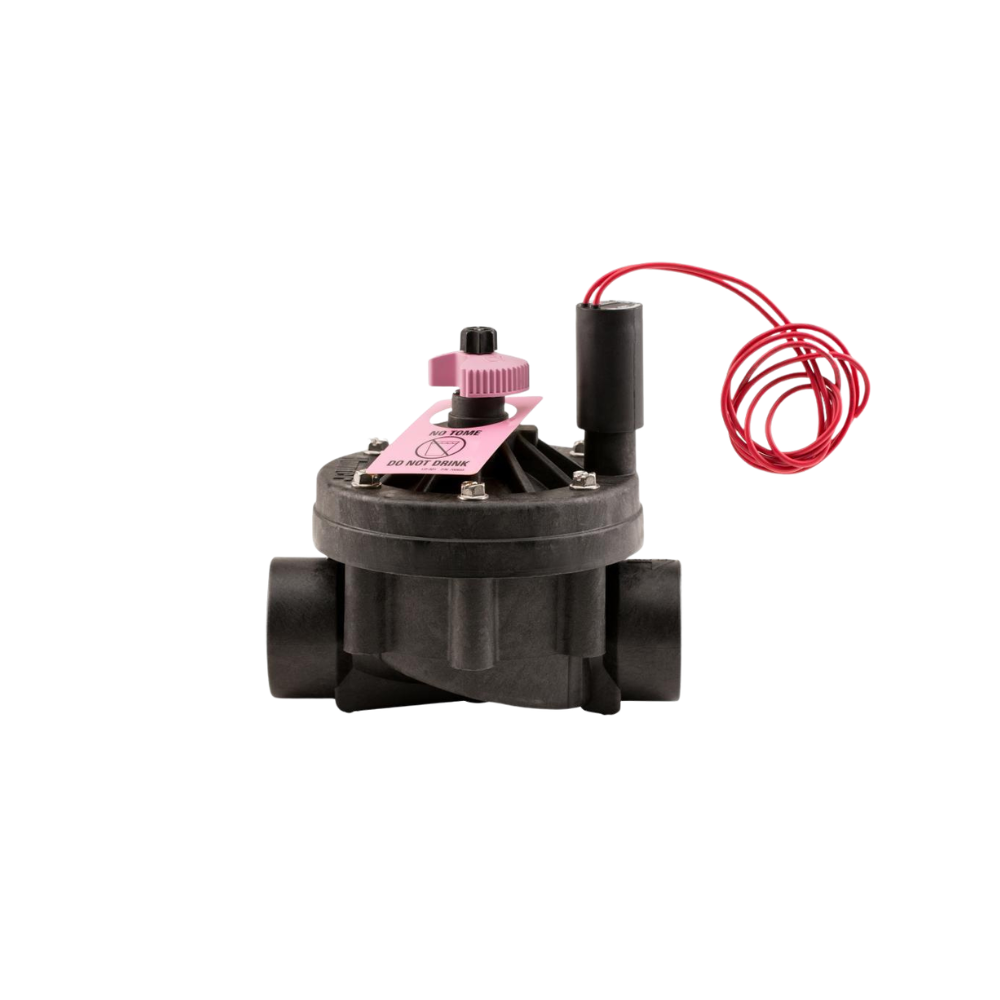

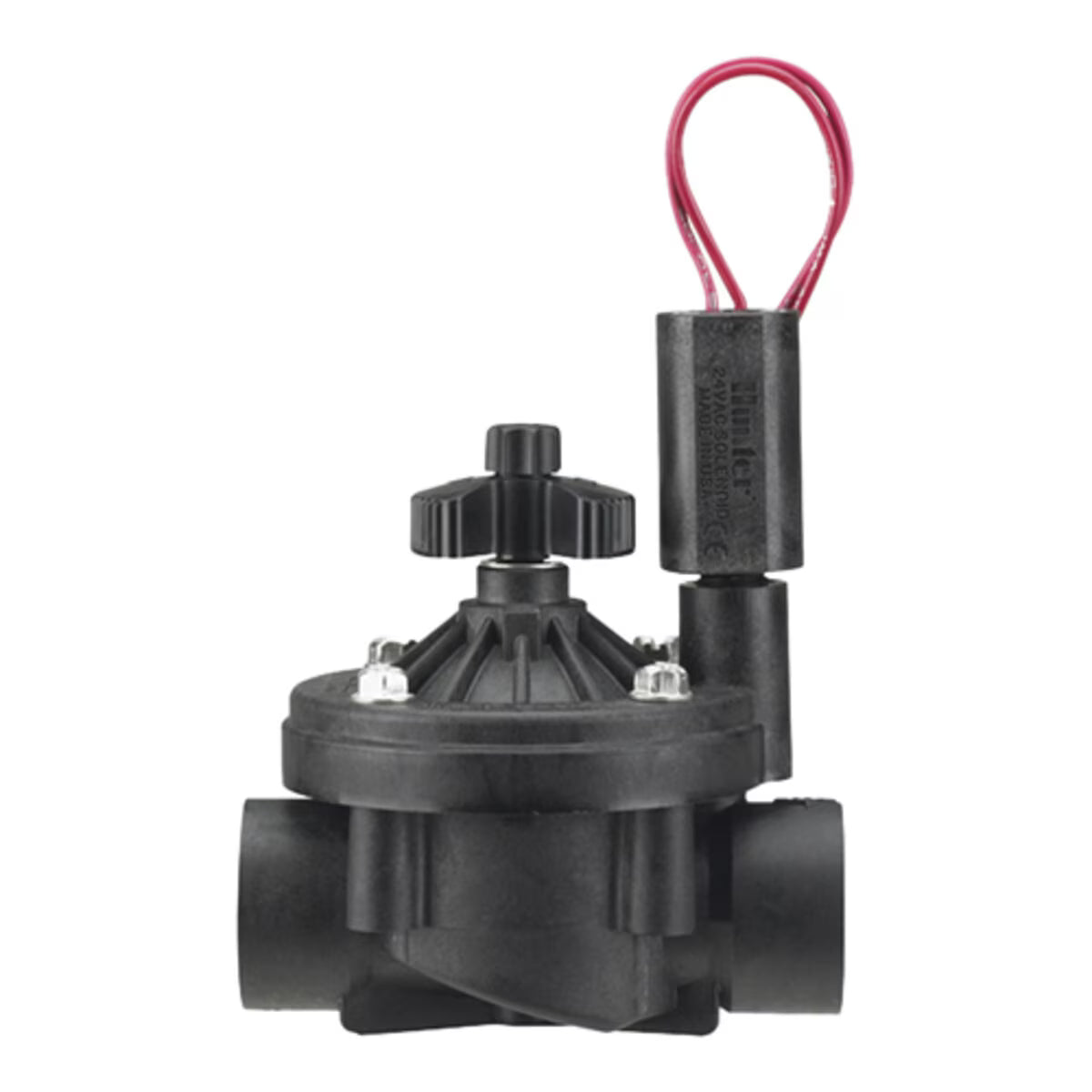

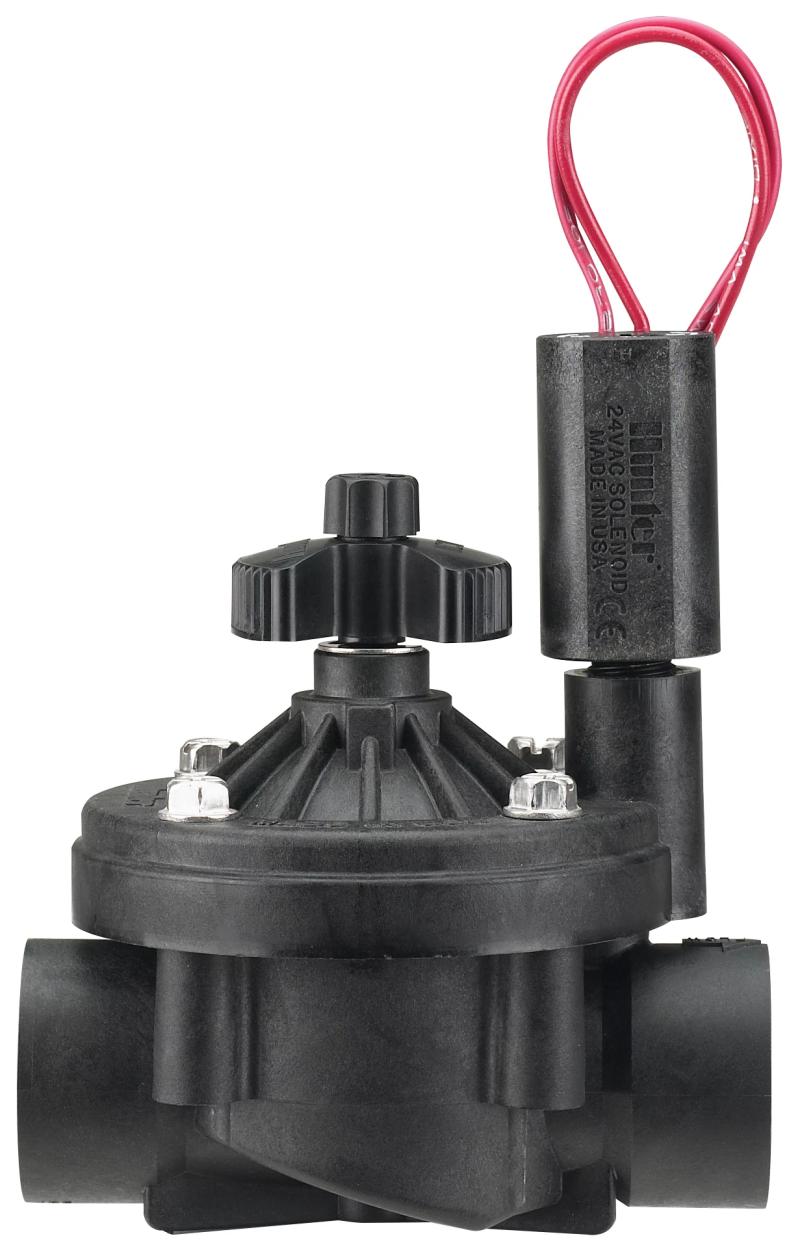

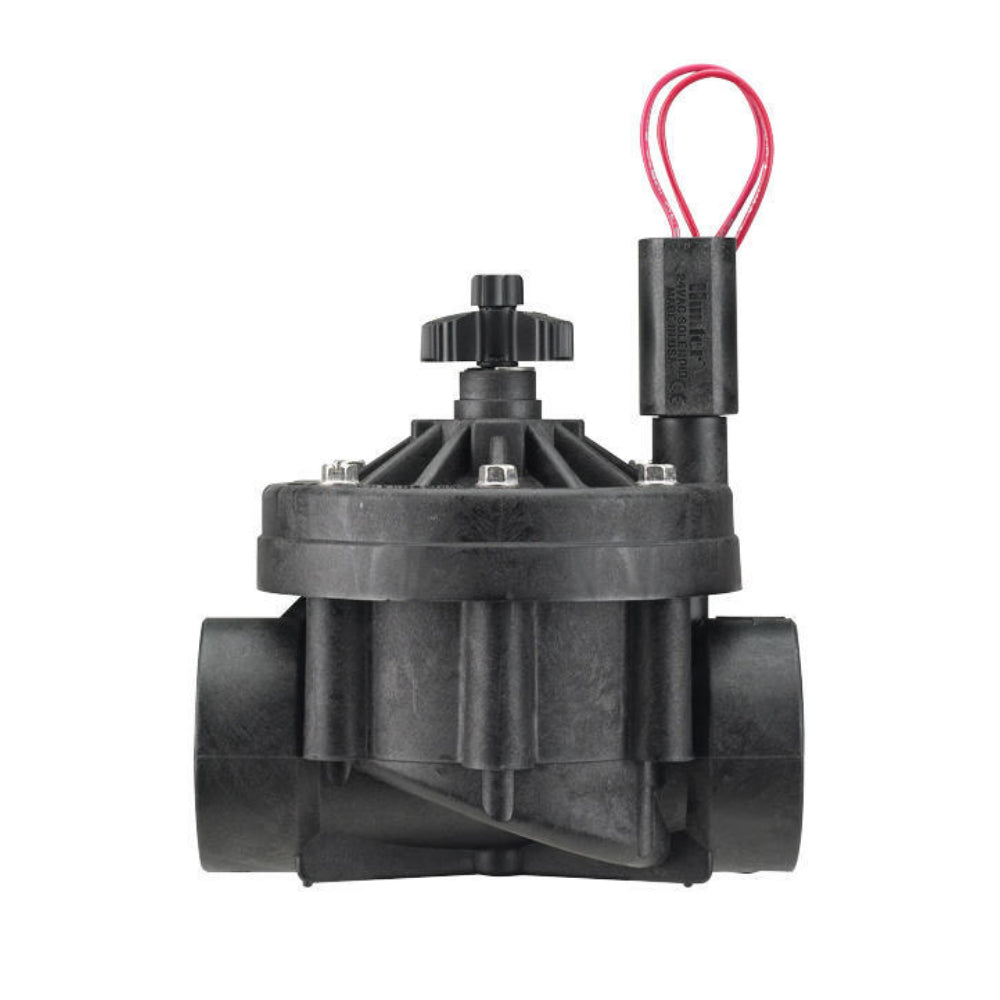

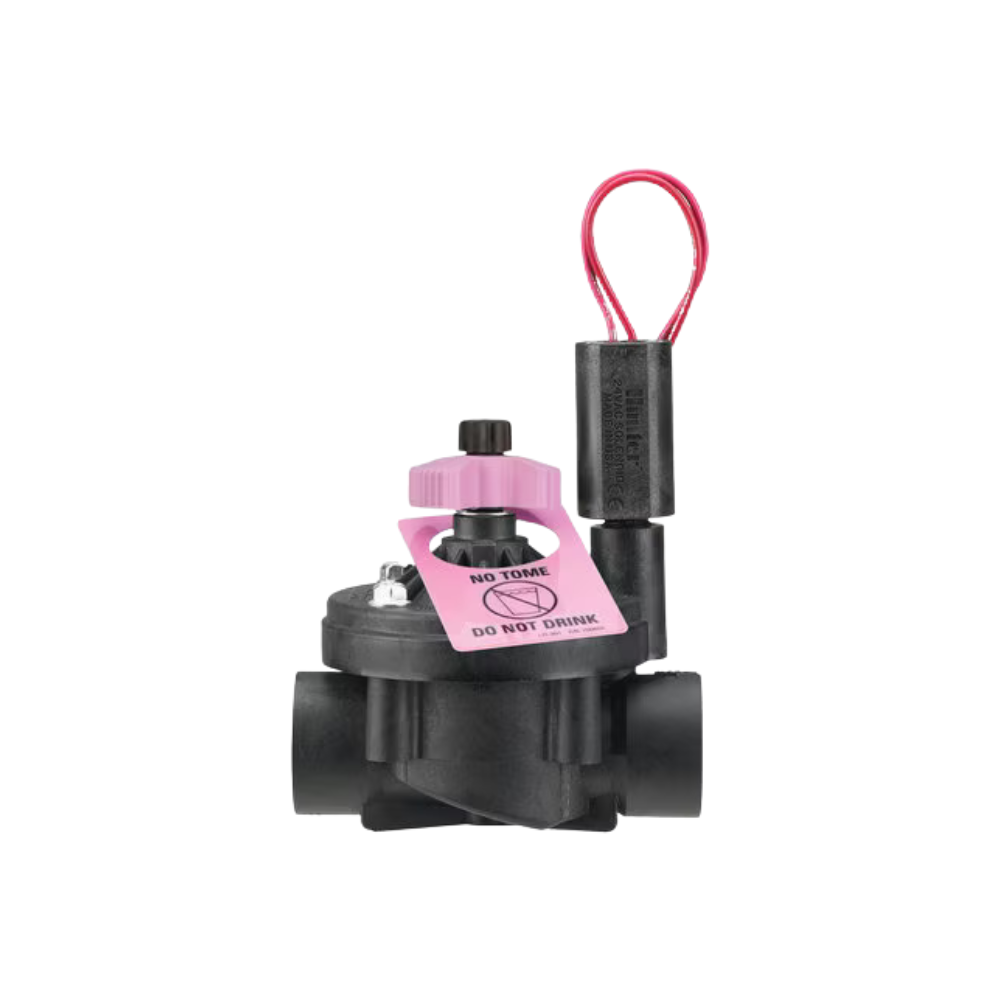

Hunter ICV101G ICV Series Globe Valve 1 inch

Product Description

The HUNTER ICV101G is a 1" glass-filled nylon globe valve with flow control, designed for demanding systems. It consistently operates at up to 220 PSI and works through high velocities and fluctuating flow rates. The Hunter ICV series valve is easy to service and maintain.

• Fabric reinforced EPDM diaphragm and seat
• External and Internal manual bleed allows quick and easy activation
• Optional Filter Sentry available for dirty water applications

Product Highlights

The Hunter ICV series valve offers superior durability and reliable performance in commercial sprinkler and irrigation systems. It features a double-beaded diaphragm seal design that assures leak-free performance.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: ICV101G

Technical Specifications

• Brand: Hunter
• Product Line: Valves
• Product Model: ICV
• SKU: ICV101G
• Inlet Size: 1"
• Material: Plastic
• Inlet Connection Size: 1 Inches
• Inlet Connection Type: Threaded
• Outlet Connection Type: NPT
• Number of Ports: 2
• Outlet Connection Size: 1 Inches
• Specification Met: ASME, ASTM, NSF
• Thread Size: 1 Inch
• Thread Type: NPT
• Valve Type: Globe Valve
• Size: 1 in.
• Product Type: Inline Valves
• Body Material: Glass-Filled Nylon
• Flow Control: Flow Control
• Connection: FPT
• Application: Residential and Commercial
• Solenoid: Yes
• Connection Type: Fipt
• Connection Size: 1 in.
• Series: ICV Series
• Pressure Regulating: Pressure Regulating
• Solenoid Type: 50/60 Hz Solenoid
• Operating Type: Electric
• Maximum Flow Rate: 40 GPM
• Voltage Rating: 24V
• Minimum Flow Rate: 0.1 GPM
• Item: Electric Valve
• Minimum Operating Pressure: 20 PSI
• Maximum Operating Pressure: 200 PSI
• Maximum Working Temperature: 150 F
• Connection 2 Size: 1 in.
• Connection 2 Type: Fipt
