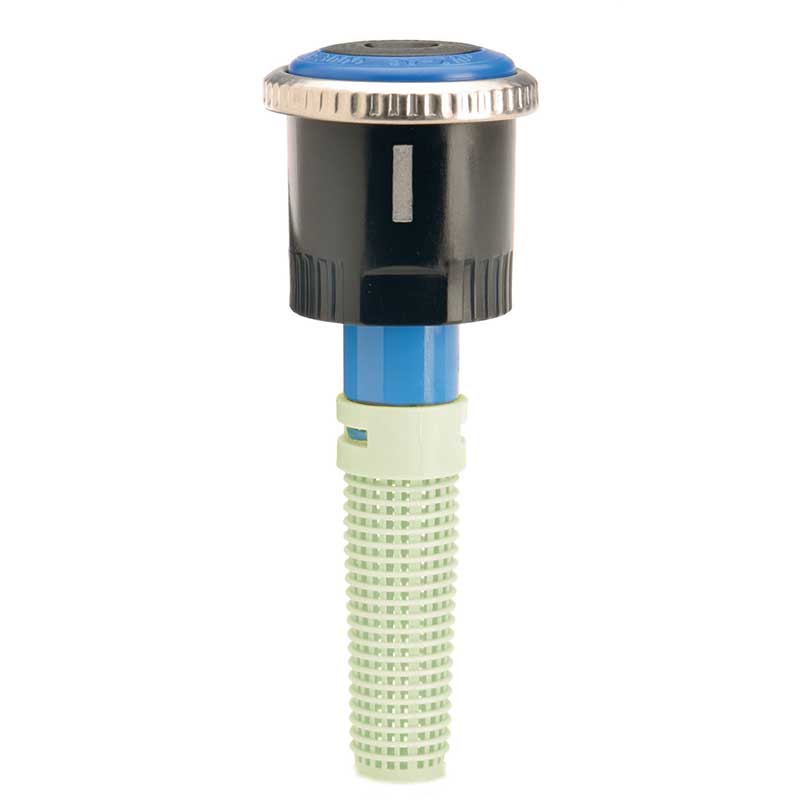

Hunter 44005320 Mp Rotator Nozzle 90-210 Degree

Product Description

The HUNTER 44005320 is an MP Rotator nozzle designed for use with conventional spray head bodies and shrub adapters in residential and commercial irrigation systems. It delivers multiple rotating streams of water at a low, steady precipitation rate, allowing water to soak into the soil rather than run off. The nozzle covers a 90-210 degree arc and throws water 22 to 30 feet. Its matched precipitation design maintains consistent application rates across any arc setting within that range. Licensed irrigators and irrigation technicians install this nozzle as a direct upgrade to standard spray nozzles where water conservation and distribution uniformity are priorities.

The 44005320 fits any standard spray head body with a female nozzle connection, making it a straightforward retrofit option for existing systems. It is suited for residential lawns, commercial turf, and landscaped areas where traditional spray nozzles produce runoff or uneven coverage. The 90-210 degree arc range makes it appropriate for corner zones, side strips, and irregular turf areas. When installed across a zone, all nozzles apply water at the same precipitation rate regardless of arc or radius setting, which simplifies zone design and scheduling.

Key Features

• Multi-trajectory rotating stream delivery reduces runoff compared to conventional spray nozzles
• 90-210 degree arc adjustment covers corners, side strips, and irregular areas
• 22 to 30 foot throw distance for medium to large turf zones
• Matched precipitation rate at any arc and any radius setting within range
• Female nozzle connection installs directly onto standard spray head bodies and shrub adapters
• Plastic construction, color-coded blue for quick field identification

Compatibility

Designed for installation on any conventional spray head body or shrub adapter with a standard female nozzle connection, replacing standard fixed-spray nozzles with a low-precipitation-rate rotating stream alternative.

Installation Notes

Installation is performed by licensed irrigators or irrigation technicians. Shut off the irrigation system and relieve line pressure before removing the existing nozzle. Thread the MP Rotator nozzle hand-tight onto the spray body riser; do not overtighten plastic fittings. After installation, run the zone and verify arc and radius adjustments before finalizing coverage settings.

Technical Specifications

• Arc Range: 90-210 degrees
• Throw Distance: 22-30 feet
• Nozzle Connection Type: Female
• Primary Material: Plastic
• Primary Color: Blue

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: 44005320
