Hunt Electronics nc304-tdb/2.8mm Ip Dome Camera 4MP

Product Description

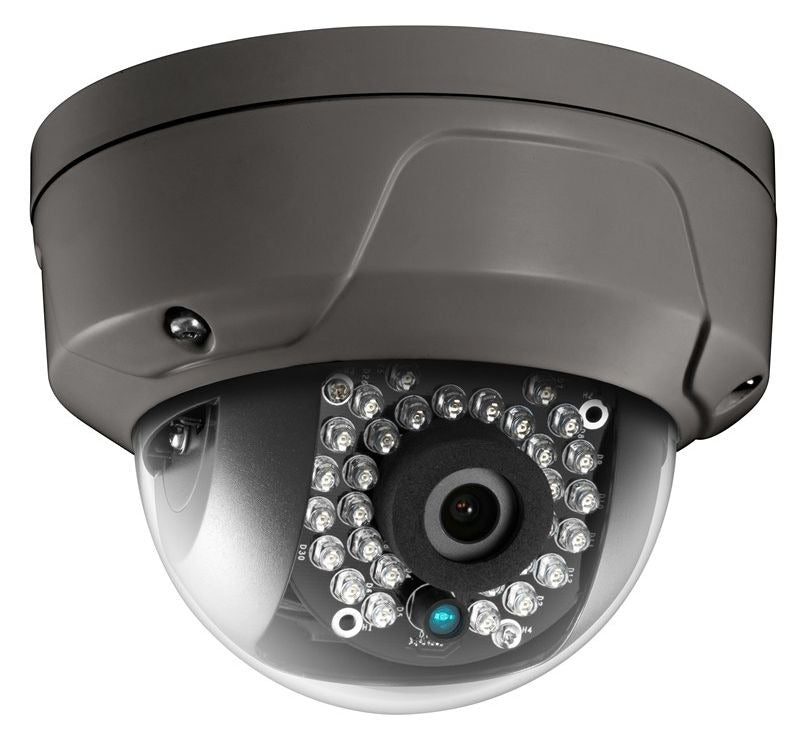

The HUNT ELECTRONICS nc304-tdb/2.8mm is a 4-megapixel fixed dome IP camera designed for professional security installations in commercial and residential applications. Built around a 2.8mm fixed lens, it delivers wide-angle coverage suited to entryways, lobbies, and open areas. The camera supports dual streaming, allowing simultaneous high-resolution recording and low-bandwidth monitoring feeds. Day and night function with infrared illumination provides continuous coverage in low-light and no-light conditions. Power over Ethernet (PoE) simplifies installation by delivering data and power over a single Cat5e or Cat6 cable, reducing wiring complexity and installation time.

This camera is intended for outdoor or indoor deployment where environmental and physical durability are required. The IP66-rated housing provides a sealed enclosure resistant to dust ingress and direct water exposure, making it suitable for exterior mounting. The IK10-rated housing meets the standard for impact resistance against vandal attempts, appropriate for public-facing or high-risk installation zones. Three-axis lens adjustment allows the installer to set pan, tilt, and rotation after mounting without repositioning the base, giving flexibility on ceiling or wall mount configurations. Digital wide dynamic range processing handles scenes with mixed lighting, such as doorways with bright backlight.

Key Features

• 4-megapixel resolution for high-detail image capture
• 2.8mm fixed lens with 3-axis adjustment for post-mount aiming
• Dual streaming supports simultaneous recording and remote monitoring feeds
• Day and night function with IR for low-light and no-light operation
• Power over Ethernet for single-cable installation
• IP66-rated housing for outdoor weather resistance
• IK10-rated housing for vandal-resistant protection
• Digital wide dynamic range for mixed-lighting scenes

Compatibility

Designed as an OEM-style IP dome camera compatible with standard PoE network video recorder systems and NVR platforms that support ONVIF-profile network cameras.

Installation Notes

Installation should be performed by a qualified low-voltage technician familiar with IP camera network configuration. Power down or disconnect the PoE switch port before connecting or disconnecting the camera. Use Cat5e or Cat6 cabling rated for the installation environment, and ensure outdoor cable runs are protected against moisture ingress at entry points. Verify NVR or VMS compatibility with the camera stream format before completing the installation.

Technical Specifications

• Resolution: 4 megapixel
• Lens: 2.8mm fixed
• Lens Adjustment: 3-axis
• Streaming: Dual stream
• Power Input: Power over Ethernet (PoE)
• Housing Rating (Weather): IP66
• Housing Rating (Impact): IK10
• Dynamic Range: Digital wide dynamic range
• Color: Black

Standard Information

• Brand: HUNT ELECTRONICS
• Manufacturer Part Number: nc304-tdb/2.8mm
