Hunt Electronics hnca16-fea 6MP Fisheye Network Camera

Product Description

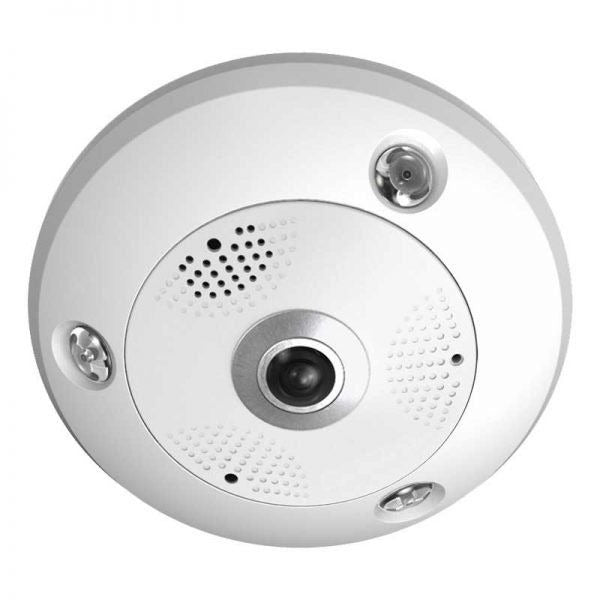

The HUNT ELECTRONICS hnca16-fea is a 6-megapixel WDR fisheye network camera designed for exterior IP surveillance installations. Operating at 6MP resolution with a 1.27mm fisheye lens, it delivers a wide panoramic field of view suited for large open areas, lobbies, parking structures, and perimeter coverage. The camera includes a built-in microphone and speaker, enabling two-way audio without additional hardware. Infrared illumination supports low-light and nighttime imaging. Security integrators and low-voltage technicians are the primary installers for this type of device.

The hnca16-fea is intended for exterior mounting in commercial and light-industrial surveillance applications where a single camera must cover a broad viewing angle. The fisheye lens format eliminates blind spots common to fixed-angle cameras, making it appropriate for corner-mount and ceiling-mount deployments in outdoor environments. The built-in IR capability extends usable imaging into darkness, and the integrated audio components support sites requiring voice communication or audio monitoring at the camera location.

Key Features

• 6MP image sensor with Wide Dynamic Range (WDR) for high-contrast lighting conditions
• 1.27mm fisheye lens for panoramic, wide-angle field of view
• Built-in infrared (IR) illumination for low-light and nighttime operation
• Integrated microphone and speaker for two-way audio
• Exterior-rated housing for outdoor installation

Compatibility

Designed as an OEM-style network camera compatible with standard IP video management systems (VMS) and NVR platforms that support ONVIF or RTSP protocols.

Installation Notes

Installation of this camera should be performed by a licensed low-voltage or security systems technician in accordance with local codes and NEC Article 725 guidelines for low-voltage wiring. Power down the network switch port or PoE injector before making cabling connections. Ensure the mounting surface is rated for outdoor use and that all conduit entries or cable penetrations are properly sealed against moisture intrusion. Do not expose interior wiring connections to weather during installation.

Technical Specifications

• Resolution: 6MP
• Lens: 1.27mm fisheye
• Dynamic Range: WDR
• Audio: Built-in microphone and speaker
• Installation Environment: Exterior
• Infrared: Yes

Standard Information

• Brand: HUNT ELECTRONICS
• Manufacturer Part Number: hnca16-fea
