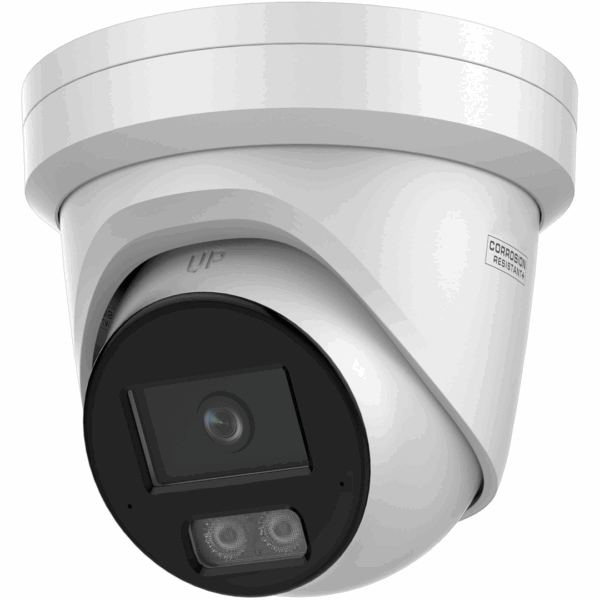

Hunt Electronics HNC348G3-XDLIU Smart Color Turret 8MP

Product Description

The Hunt Electronics HNC348G3-XDLIU is an exterior 8MP true WDR smart color turret camera, offering 3840 x 2160 resolution. It features full HD 4MP real-time video, PoE, full color night view, H.265 compression, face capture, and third stream capabilities. The camera supports a Micro SD card up to 512GB for on-board storage and has an IP67 rating.

• 8 Megapixel (3840 x 2160) Resolution
• Full HD 4MP real-time video
• Full Color Night View

Product Highlights

This turret camera provides high-resolution video, color night vision, and versatile mounting options for comprehensive surveillance.

Product Information

Standard Information

• Brand: Hunt Electronics
• Manufacturer Part Number: HNC348G3-XDLIU

Technical Specifications

• Model Number: HNC348G3-XDLIU
• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter time: 1 s to 1/100,000 s
• Lens: 4mm (2.8mm optional)
• Angle adjustment: Pan: 0° ~ 360°, tilt 0° ~ 75°, Rotation: 0 ~ 360°
• Digital noise reduction: 3D DNR
• Wide dynamic range: True WDR 120dB
• Day & night: 24/7 Color
• Video compression: Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
• Triple stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
• Audio In: Yes (built in mic)
• Max. image resolution: 3840 x 2160
• Frame rate: 25fps (3840×2160)
• Image settings: Saturation, brightness, contrast, sharpness adjustable through client software or web browser
• BLC: Yes
• On Board Storage: Micro SD slot, up to 512GB
• Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos
• API: ONVIF(Profile S, Profile G), ISAPI
• General functionalities: User authentication, watermark
• Communication interface: 1 RJ45 10M / 100M Ethernet interface
• Operating conditions: -30°C ~ 60°C (-22°F ~ 140°F) humidity 95% or less (non-condensing)
• Power supply: 12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
• Power consumption: PoE: IEEE 802.3af, Class 3, max. 11 W
• Enclosure Rating: IP67
• Visible Light Range: Up to 90ft
