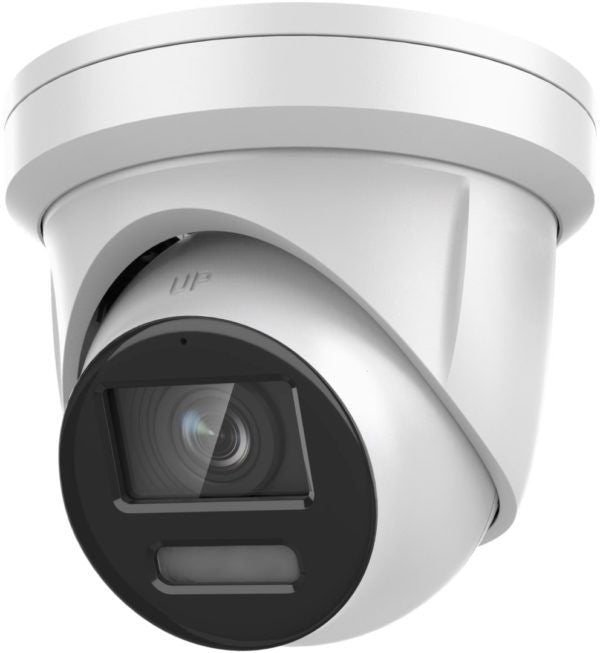

Hunt Electronics hnc348g2-xdlu28 Turret Ip Camera 8MP

Product Description

The HUNT ELECTRONICS hnc348g2-xdlu28 is an 8MP turret-style IP security camera designed for continuous color surveillance in both indoor and outdoor environments. It delivers 3840 x 2160 resolution at 24 frames per second through a 2.8mm fixed focal length lens, capturing wide-area coverage with sharp detail. The Smart Color imaging system provides full-color video down to 0.0005 lux, eliminating the typical grayscale night image. H.265 and H.265+ compression reduces bandwidth and storage demands without sacrificing image quality. A built-in microphone supports on-camera audio recording. This camera is installed by security integrators, licensed low-voltage technicians, and experienced surveillance professionals.

The hnc348g2-xdlu28 is suited for outdoor perimeter, parking lot, entry point, and building exterior applications where 24/7 color imaging is required. Its IP67-rated housing handles rain, dust, and temperature extremes from -22 to 140 degrees F, making it appropriate for harsh or exposed installation sites. Power over Ethernet (PoE 802.3af Class 3) simplifies cabling by delivering both data and power over a single Cat cable. Wall mount, pendant, corner, and pole mount accessory brackets are available for flexible positioning. The onboard micro SD card slot supports local edge recording up to 256 GB as a backup or standalone storage option.

Key Features

• 8MP (3840 x 2160) progressive scan CMOS sensor with 1/1.2-inch format for high-resolution imaging
• Smart Color 24/7 full-color imaging rated to 0.0005 lux — no switching to black-and-white in low light
• True WDR at 120 dB balances exposure across high-contrast scenes such as backlit entryways
• IR illuminator range up to 90 feet for scenes where supplemental infrared is needed
• PoE 802.3af Class 3 (6 watts maximum) — single-cable installation, no separate power supply required
• Built-in microphone for synchronized audio capture without an external device
• Micro SD slot supports up to 256 GB for local edge storage
• ONVIF Profile S and Profile G plus ISAPI for integration with third-party VMS platforms

Compatibility

Compatible mounting accessories referenced in the product data include wall mount Hth-273Zj-140B, pendant mount Hth-271Zj-140, corner mount C-Hth-276Zj, and pole mount P-Hth-275Zj. The camera supports ONVIF Profile S and Profile G, enabling integration with NVRs and VMS software that comply with those open standards. Confirm NVR channel licensing and PoE port power budget before installation.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician in accordance with applicable local codes and the NEC. Power down the PoE switch port before connecting or disconnecting the camera. Verify that the PoE switch or injector supports 802.3af Class 3 and can supply the required 6 watts per port. Mount the camera to a structurally sound surface using the appropriate accessory bracket; adjust pan (0-360 degrees), tilt (0-75 degrees), and rotation (0-360 degrees) before final tightening to confirm the desired field of view.

Technical Specifications

• Resolution: 8MP (3840 x 2160)
• Image Sensor: 1/1.2 inch Progressive Scan CMOS
• Focal Length: 2.8mm fixed
• Video Output: 24 FPS at 3840 x 2160; Triple Stream — 10 FPS at 1920 x 1080
• Video Compression: H.265, H.265+, H.264, H.264+, MJPEG
• Scalable Video Coding: H.264 and H.265 encoding
• Wide Dynamic Range: True WDR 120 dB
• Minimum Illumination (Color): 0.0005 lux
• IR Illuminator Range: Up to 90 feet
• Day and Night: 24/7 Color Imaging
• Shutter Speed: 1/30 to 1/100000 sec
• Audio: Built-in microphone
• Power over Ethernet: 802.3af Class 3
• Power Supply: 12 VDC +/-10%
• Power Consumption: 6 watts maximum
• Ethernet Interface: (1) RJ45 10M/100M self-adaptive
• SD Card Slot: Micro SD, up to 256 GB
• Weather Protection: IP67
• Operating Temperature: -22 to 140 degrees F (-30 to 60 degrees C)
• Operating Humidity: 95% or less RH (non-condensing)
• Angle Adjustment: 0-360 degrees pan, 0-75 degrees tilt, 0-360 degrees rotate
• Camera Dimensions: 5.4 x 4.7 inches
• Camera Weight: 1.9 pounds
• Body Style: Turret
• Color: White
• Application: Outdoor
• Supported Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1X, QoS
• API: ONVIF Profile S, Profile G; ISAPI
• Image Enhancement: BLC
• Image Settings: Saturation, brightness, contrast, and sharpness adjustable via client software or web browser
• General Functions: User authentication, watermark

Standard Information

• Brand: HUNT ELECTRONICS
• Manufacturer Part Number: hnc348g2-xdlu28
