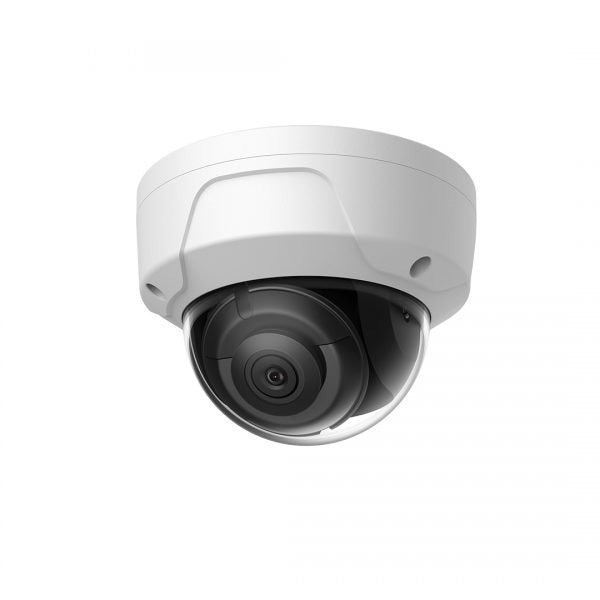

Hunt Electronics hnc328-td 8MP Mini Dome Camera IP67 Poe

Product Description

The HUNT ELECTRONICS hnc328-td is an 8-megapixel fixed mini dome camera designed for exterior surveillance installations. It delivers up to 3840 x 2160 resolution using a 1/2.5-inch progressive scan CMOS sensor and supports H.265+ compression to reduce bandwidth and storage demand. True WDR handles high-contrast scenes where both bright and shadowed areas must remain usable. The camera includes a built-in IR illuminator rated to 90 feet, allowing 0 lux operation after dark. With an IP67 weatherproof rating and IK10 vandal-resistance rating, it is built for exposed outdoor mounting. PoE (802.3af) simplifies installation by delivering power and data over a single Ethernet run. Licensed security integrators and commercial low-voltage technicians are the primary installers.

The hnc328-td suits perimeter, entry-point, and parking-area coverage on commercial and light-industrial properties. The 4mm lens at F1.2 provides a 102-degree angle of view; optional 2.8mm and 6mm lenses allow the installer to match the field of view to the application. Pan adjustment spans -90 to 90 degrees, tilt runs 0 to 75 degrees, and rotation covers 0 to 355 degrees, giving wide positioning flexibility at installation. Dual-stream output supports simultaneous high-resolution recording and lower-bandwidth live viewing. On-board Micro SD storage accepts cards up to 128GB for local backup, and the camera also supports NAS via NFS and SMB/CIFS, as well as ANR for network interruption recovery.

Key Features

• 8MP (3840 x 2160) resolution with up to 30fps at 2944 x 1656 and lower resolutions
• True WDR and 3D DNR for clear imaging in high-contrast or low-light conditions
• IR range up to 90 feet with ICR day/night switching for 0 lux operation
• IP67 weatherproof and IK10 impact-resistant housing rated for exterior use
• PoE 802.3af power input with max consumption of 9 watts — no separate power supply required
• Micro SD slot supports up to 128GB; also supports NAS and ANR network storage
• ONVIF, PSIA, and CGI compatible for integration with third-party VMS platforms

Compatibility

Compatible with ONVIF, PSIA, and CGI-compliant video management systems. Accessory mounting options include electrical box HTH-280ZJ-DM18, wall mounts HTH-258ZJ and HTH-272ZJ-110B, pendant HTH-271ZJ-110, corner mount HTH-276ZJ, and pole mount HTH-275ZJ.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician in accordance with local codes and NEC Article 725 requirements. Power down the PoE switch port before making or breaking the RJ45 connection. Confirm the Micro SD card is inserted before sealing the dome housing, as accessing the slot after mounting requires disassembly. Verify the mounting surface and selected bracket are rated for the camera weight before securing the dome.

Technical Specifications

• Image Sensor: 1/2.5-inch progressive scan CMOS
• Max Resolution: 3840 x 2160
• Frame Rate: 15fps at 3840 x 2160; 30fps at 2944 x 1656, 2560 x 1920, and 1920 x 1080
• Lens: 4mm at F1.2, 102-degree angle of view; optional 2.8mm and 6mm
• Minimum Illumination: 0.01 lux at F1.2 AGC ON; 0 lux with IR
• IR Range: Up to 90 feet
• Shutter Time: 1/3s to 1/100,000s
• Angle Adjustment: Pan -90 to 90 degrees, Tilt 0 to 75 degrees, Rotation 0 to 355 degrees
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Wide Dynamic Range: True WDR
• Digital Noise Reduction: 3D DNR
• Day/Night: ICR
• On-Board Storage: Micro SD slot, up to 128GB
• Network Storage: NAS (NFS, SMB/CIFS), ANR
• Power Supply: 12 VDC plus or minus 10%; PoE 802.3af
• Power Consumption: Max 9 watts
• Communication Interface: 1 RJ45 10M/100M Ethernet
• Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, QoS
• System Compatibility: ONVIF, PSIA, CGI
• Ingress/Impact Rating: IP67, IK10
• Operating Temperature: -22 degrees F to 140 degrees F (-30 degrees C to 60 degrees C)
• Operating Humidity: 90% or less, non-condensing
• Dimensions: 4.4 inches diameter x 3.2 inches height
• Weight: 1.1 pounds

Standard Information

• Brand: HUNT ELECTRONICS
• Manufacturer Part Number: hnc328-td
